Range Master 463724313 - Sideburner Installation

13

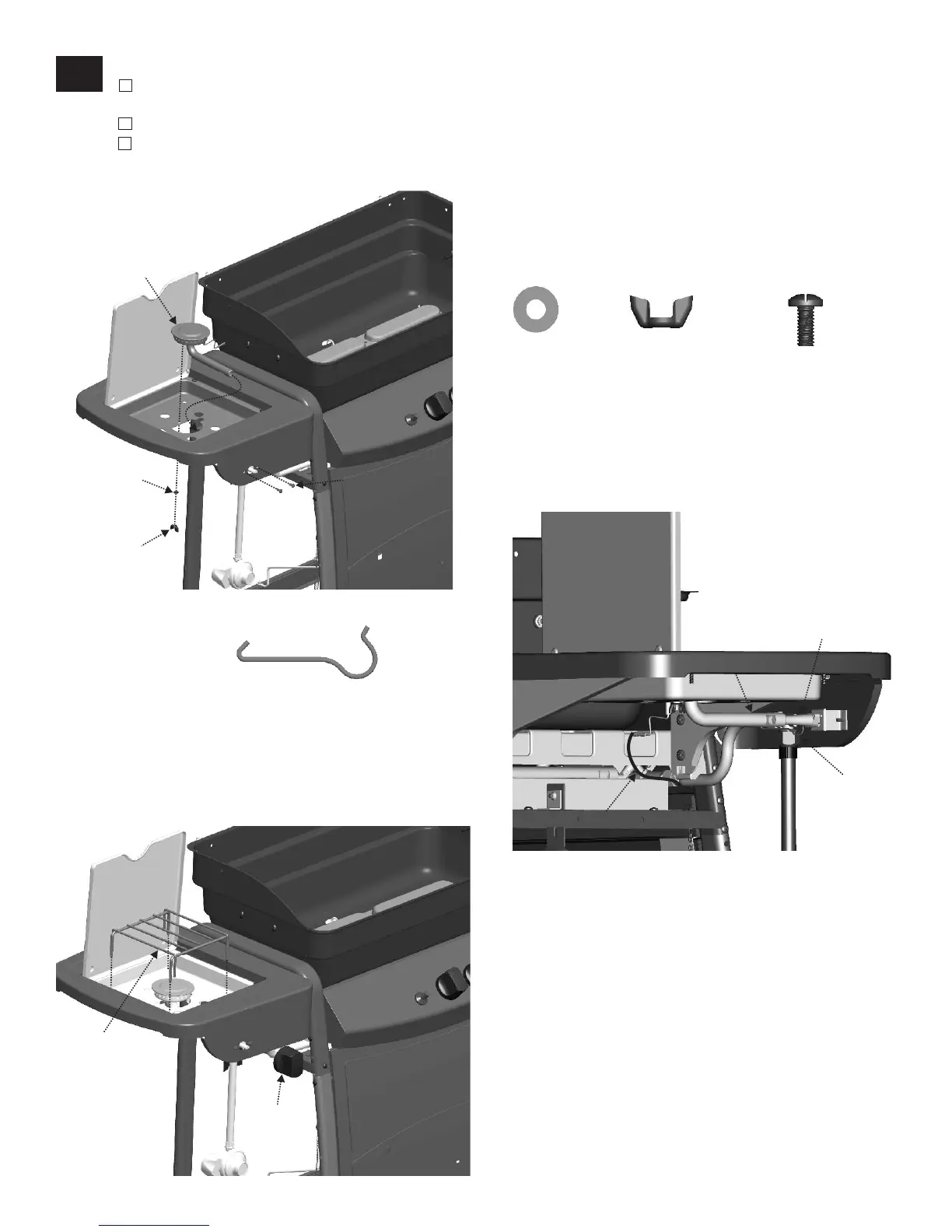

Sideburner
Attach sideburner valve with #8-32x3/8’’ machine screws. Place sideburner into shelf (A). Make sure valve is inside
sideburner tube (B). Attach sideburner with #8-32 wing nut and 5x9 fiber washer (A).
Hook sideburner clip to sideburner tube and around manifold. Attach sideburner ignitor wire to igniter (B).
Press control knob onto valve stem and sideburner grate onto shelf (C).
#8-32
Wing Nut
Qty.1
Sideburner Clip
Qty.1
5x9
Fiber Washer
Qty.1
5x9
Fiber Washer
#8-32 Wing Nut
Sideburner
Sideburner Clip
Knob
Sideburner Grate
B
A
C
#8-32x3/8’’
Machine Screw
Qty.2
#8-32x3/8’’
Machine Screw
24
Sideburner Tube
Sideburner Valve
Sideburner Ignitor Wire
