Range Master 463724313 - Hinge and Lid Assembly

14
15
5x15
Fiber Washer
Qty. 8
#10-24
Flange Nut
Qty. 4
7x15
Fiber Washer
Qty. 4
1/4-20
Wing nut
Qty. 2
#10-24X1/2"
Machine Screw
Qty. 4
Center flat portion of
hinge on bottom

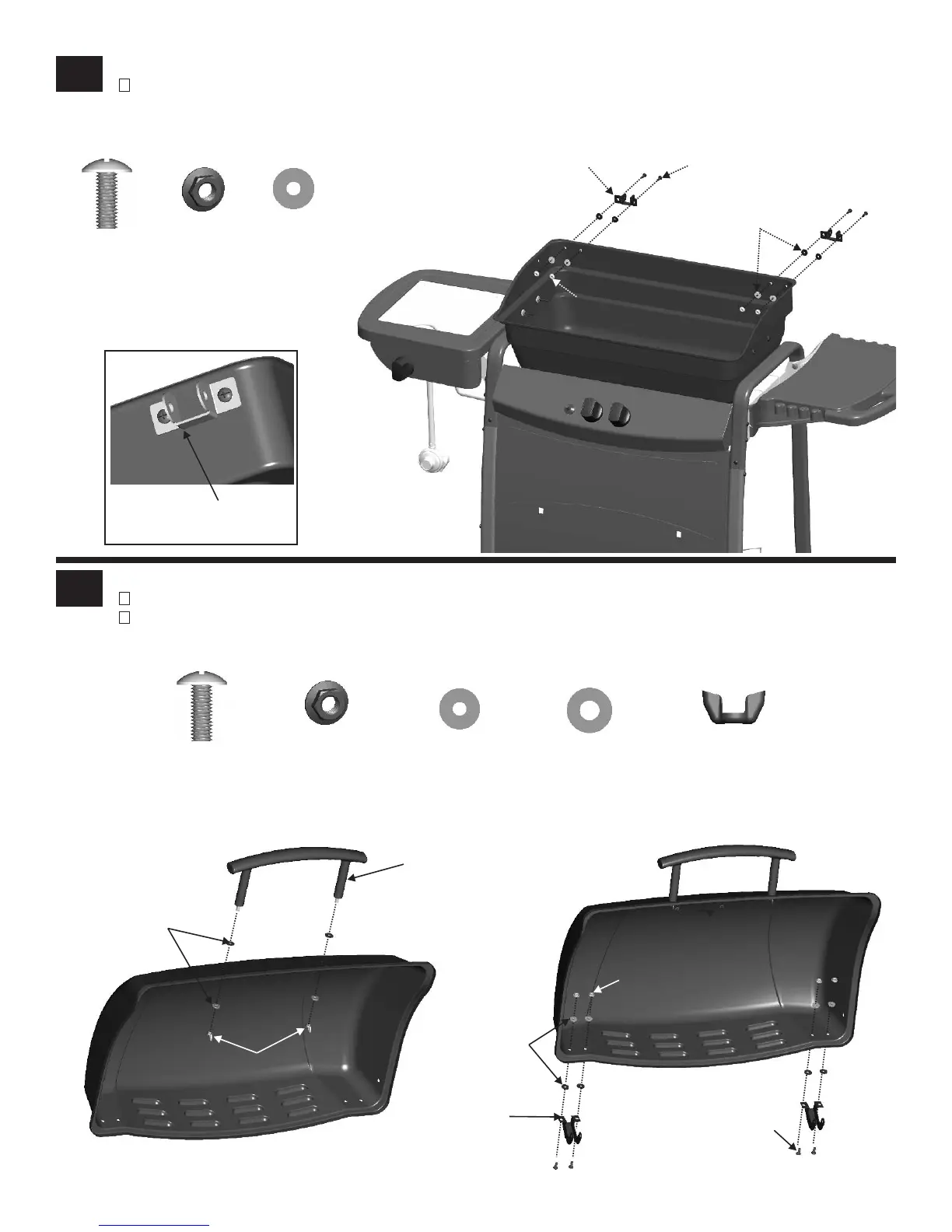

Lower Hinges
Attach lower hinges to back of firebox using #10-24x1/2" machine screws, 5x15 fiber washers and #10-24 flange nuts.
The center flat portion of the hinge should be at the bottom (see inset).
5x15
Fiber Washer
Qty. 8
#10-24x1/2”
Machine Screw
Qty. 4
#10-24
Flange Nut
Qty. 4
Lid Handle and Upper Hinges
Attach handle to lid with 7x15 fiber washers and 1/4-20 wing nuts .
Attach upper hinges to back of lid using #10-24x1/2’’ machine screws, 5x15 fiber washers and #10-24 flange nuts.
Hinge should curve downward when properly installed. Do not tighten upper hinge screws.
Handle
7x15
Fiber Washer
1/4-20
Wing nut
5x15
Fiber Washer
#10-24
Flange Nut
Upper Hinge
#10-24X1/2”
Machine Screw
Lower Hinge
#10-24x1/2”
Machine Screw
5x15
Fiber Washer
#10-24
Flange Nut
25
