Heat Tent

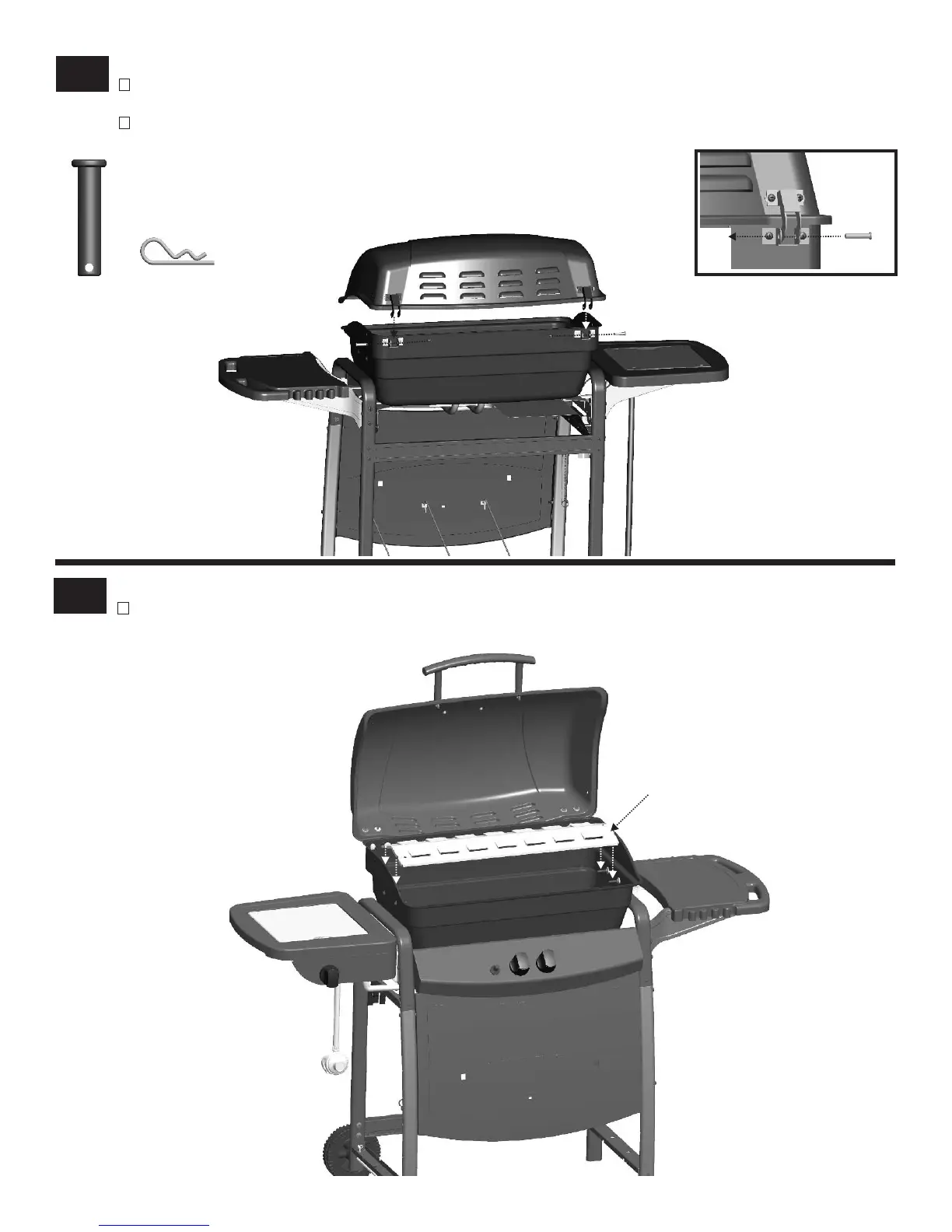

Place heat tent into firebox. Align the slots on heat tent to heat tent support screws.
Lid
Place lid assembly onto firebox, aligning hinges. Hinges on lid fit inside hinges on firebox. Secure using two hinge pins
and hitch pins. Tighten upper hinge screws.
NOTE: Tighten the hinges screws after installing the hinge pins.
Hitch Pin
Qty.2
Hinge Pin
Qty.2
Heat Tent
