Range Master 47262 - Assembly Instructions; Step 1: Lid Vent and Temperature Gauge; Step 2: Attaching Handles

10

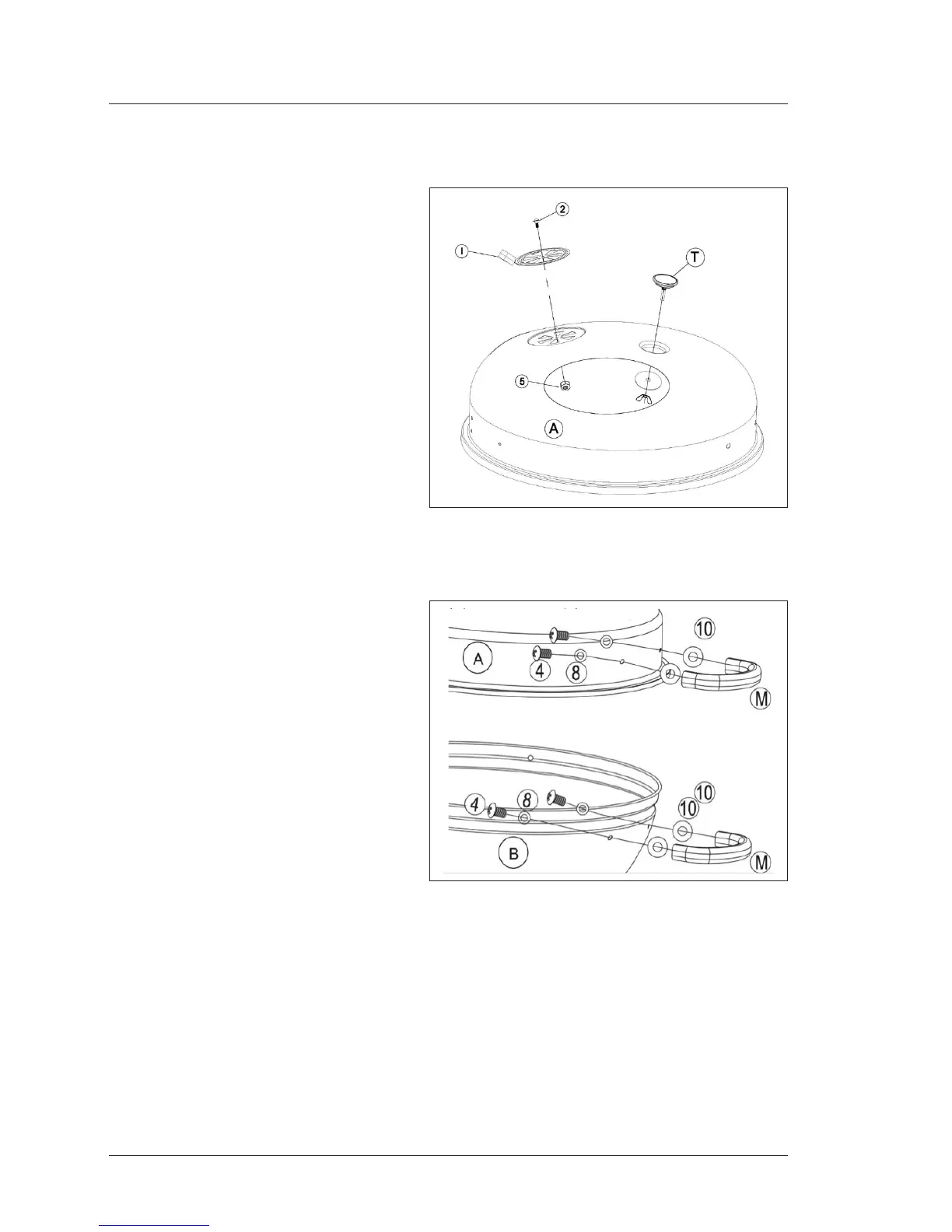

STEP 1
Insert Lid Vent Bold (2) through the Lid
Vent (I) and the Top Lid (A). Thread the
Lid Vent Lock Nut (5) onto the Lid Vent
Bolt (2). Tighten with a screwdriver and
adjustable wrench. Place Temperature
Gauge (T) into the Top Lid (A) and use the
preassembled hardware to secure it into
the Top Lid.
STEP 2
Insert the Handle Bolts (4) through the
Metal Washers (8), Top Lid (A), and Fiber
Washers (10). Then thread the Handle
Bolts (4) into the Handle (M) and ghten
with a screwdriver.
Repeat this process to aach the Handle
(M) to the Boom Bowl (B).
Assembly instrucons
