Hob
Dual purpose hob/warmer plate

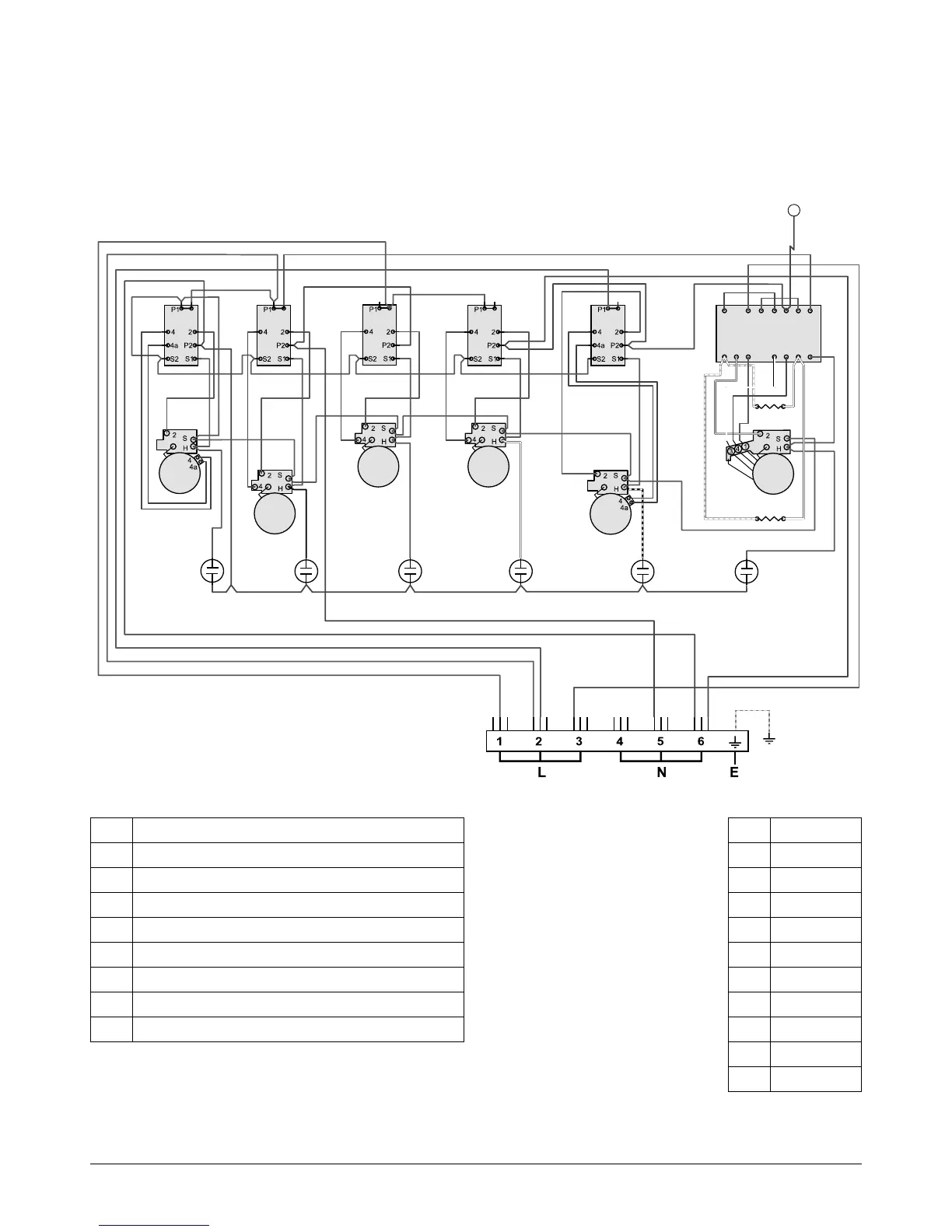

ArtNo.082-0024 - 110 Ceramic (hob) - circuit diagram
P1 P4P3 P5 P6 P7 P8
1 3 5 6 7 82
1.1kW
2.02kW
1.1kW
1.56kW
1.1kW
1.65kW
brbr
g/y
br br
b
b
b
b b b
br
br
br
b
br
br
br
b
b
b
br
b
b
b b b b
b
br
br
br
w
w
w/y
w/y
r
y
r
w
w
b
w/y
b
r
r
r
r
br
br
br
br
r
r
r
r
br
br
br
br
r
r
br
b
br
b
b
b
b
br
br
b
br
br
b
b
br
b
br
br
b
v
br
br bk r w bk/w
b
v
b
v
br
br
br
y
br
br
br
br
br
A B C D F
G
J
J
H H H H H H
To cooling fan
Code Description
A Left-hand end dual circuit hob energy regulator
B Left-hand front hob energy regulator
C Left-hand rear hob energy regulator
D Right-hand rear hob energy regulator
F Right-hand front hob dual energy regulator
G Right-hand warmer hob controller
H Hob neons
J Dual purpose hob/warmer
Connections shown in the circuit diagram are for single-phase. The ratings are for 230 V 50 Hz.
Code Colour
b Blue
br Brown
bk Black
or Orange
r Red
v Violet
w White
y Yellow
g/y Green/yellow
gy Grey
