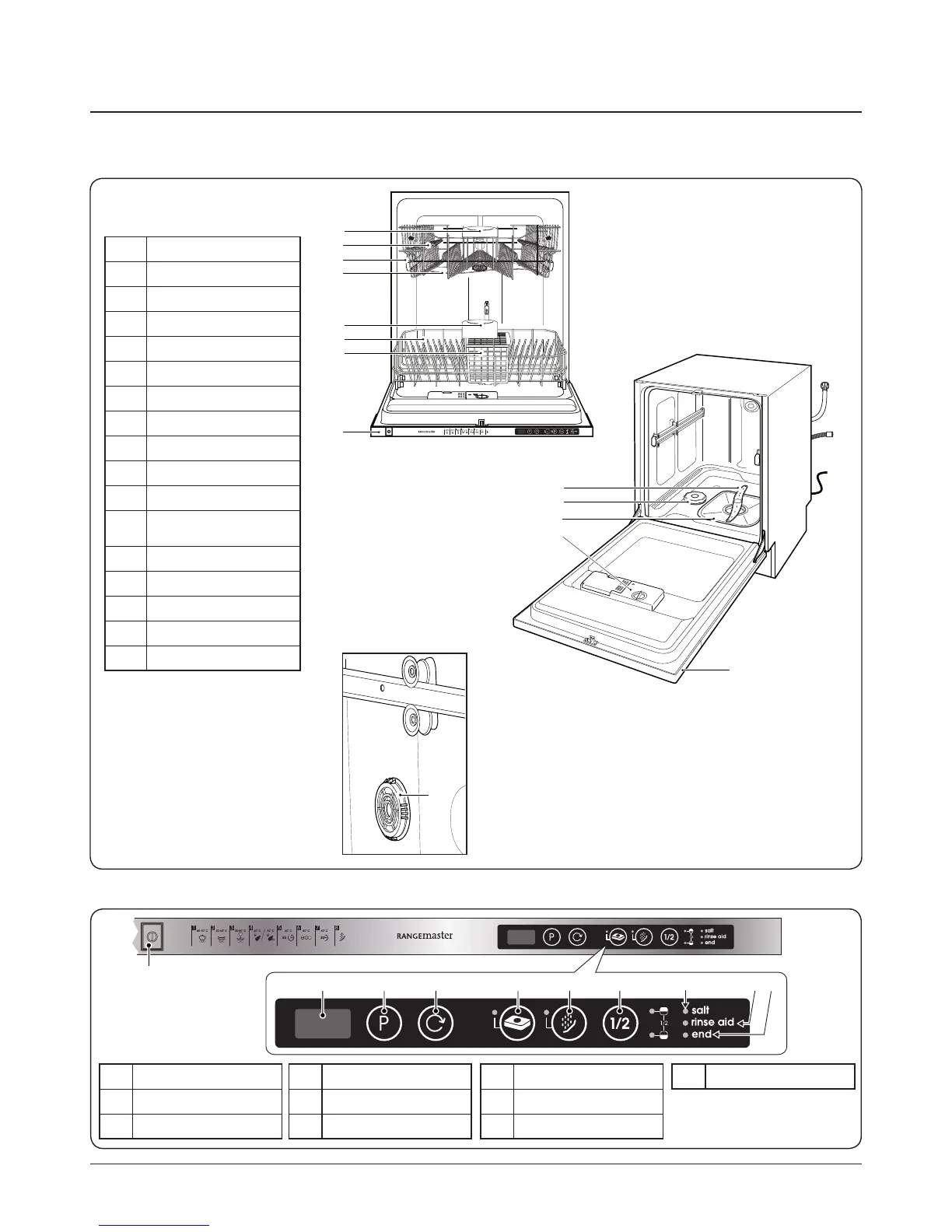

Getting to Know Your Dishwasher
Dishwasher Interior
2. Overview and Operation
A Top basket handle
B Upper basket with racks
C Upper basket track latch
D Upper spray arm
E Lower basket handle
F Lower basket
G Cutlery basket
H Control panel
I Lower spray arm
J Salt dispenser
K Washing lter
L
Detergent and rinse aid
dispenser
M Rating plate
N Water inlet hose
O Drain hose
P Power supply cord
Q Active drying unit
JIHGFEDCB
A
A ON-OFF button
B Program display
C Program selection button
D Delay timer button
E Detergent tablet button
F Prewash button
G Half (½) load button
H Low salt indicator
I Low rinse aid indicator
J End of program indicator
Fig.2-2
Fig.2-1
B
N
A
H
L
D
K
P
E
J
O
G
F
C
M
I
Q
Control Panel
