Fig.4-12
Electrical Supply Connection
Connect the appliance to the electrical supply (220-240 V ~
50 Hz) with the plug and lead, which are tted.
Connections to the mains supply should be in accordance
with local regulations.
The appliance must be plugged into an earthed
socket.
Always make sure that the plug is accessible after
the appliance has been positioned.
Water Supply Connection
It is recommended to have this product installed by
a qualied technician.
Note: For further installation details refer to the instructions
supplied with the water lter.
• Pressure of the cold water supplied to the automatic
icemaker is between 1.5-8.5 bar.
• The water tube should be of an appropriate length,
usually 12 metres, and should be free of bends after
being inserted into place. If the water pipe is too long
then the water pressure will be reduced, aecting the
ice and cold water content.
• DO NOT connect water supply when the ambient
temperature is below 0 °C, otherwise the water pipe
may freeze.
• Always use potable/drinking water.
• Keep the water tube clear of heat sources.
• The water filter is there to filter impurities in the water,
and to make ice clean and hygienic. It cannot sterilise
or destroy anything, so be certain to connect the water
pipe to a drinkable water source.
Fitting the Water Filter
Measure out and cut the length of pipe required from the
lter to the Fridge-freezer, and from the lter to the water
supply. Make sure that you achieve a square cut using a sharp
knife.

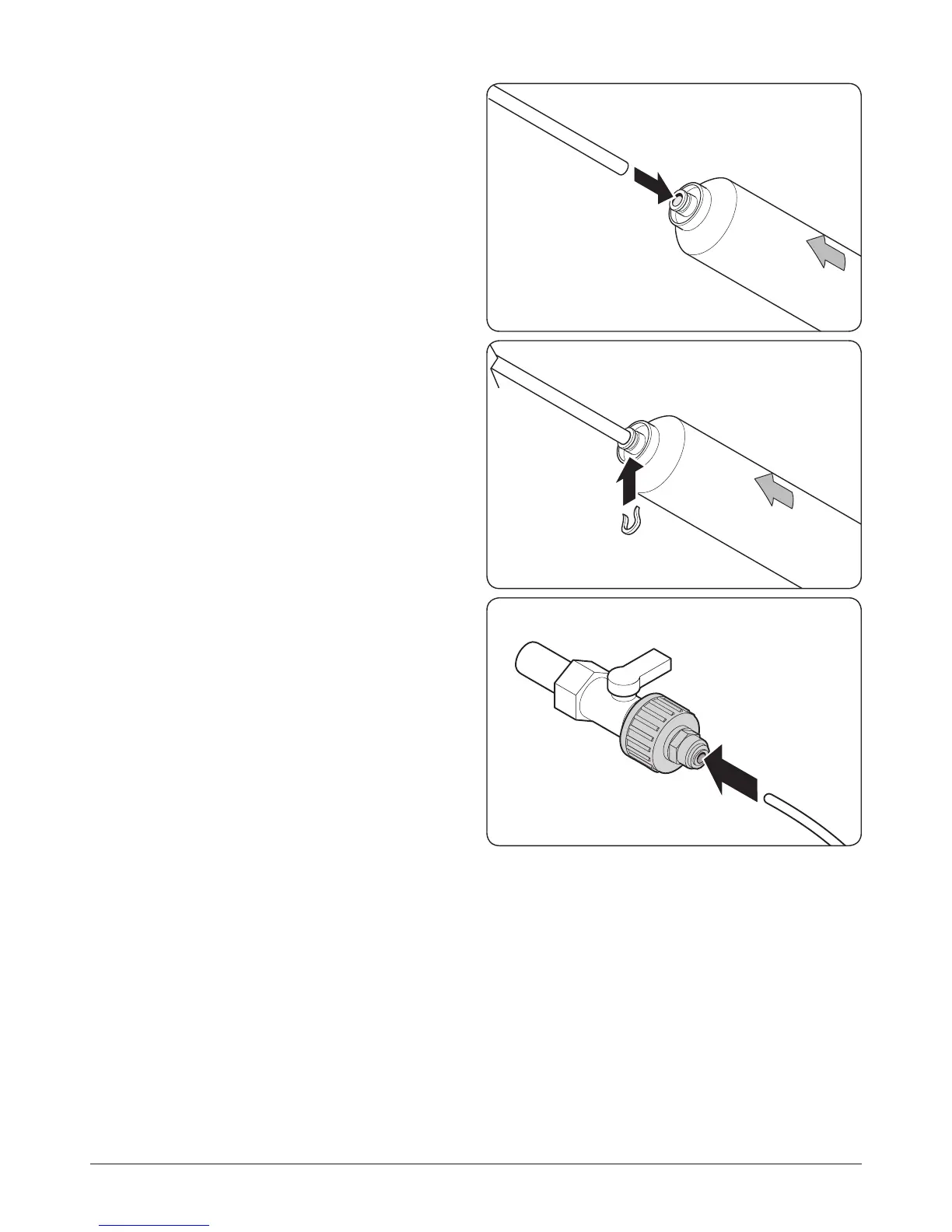

Push t one of the pipes into the water lter (Fig.4-12).
Secure the pipe to the lter by sliding a locking clip into the
groove as shown (Fig.4-13).
Repeat the procedure on the other end of the lter.
Connect the end into the plastic adaptor (Fig.4-14). Screw
the adaptor onto a suitable ½” BSP connector water outlet.
Open the water valve to ush the pipe, check leakage in the
water pipe joints and allow the water to run until it is clear.
Commissioning the Water Dispenser
Before rst use, press the water dispenser pad several times
for 1 minute. Do not press for more than 1 minute to prevent
overheating of the pad activator solenoid. Cold water will
begin to ow from the outlet.
