R76 Series of Tire Changers 14 P/N 5900346 — Rev. C — Dec. 2019
Clearance
A certain amount of space around the Tire Changer is required.
⚠ WARNING The Clearance values shown below allow enough space to operate the Tire
Changer.
For safety purposes, only the Operator should be within 30
feet of the Tire Changer while it is in use.

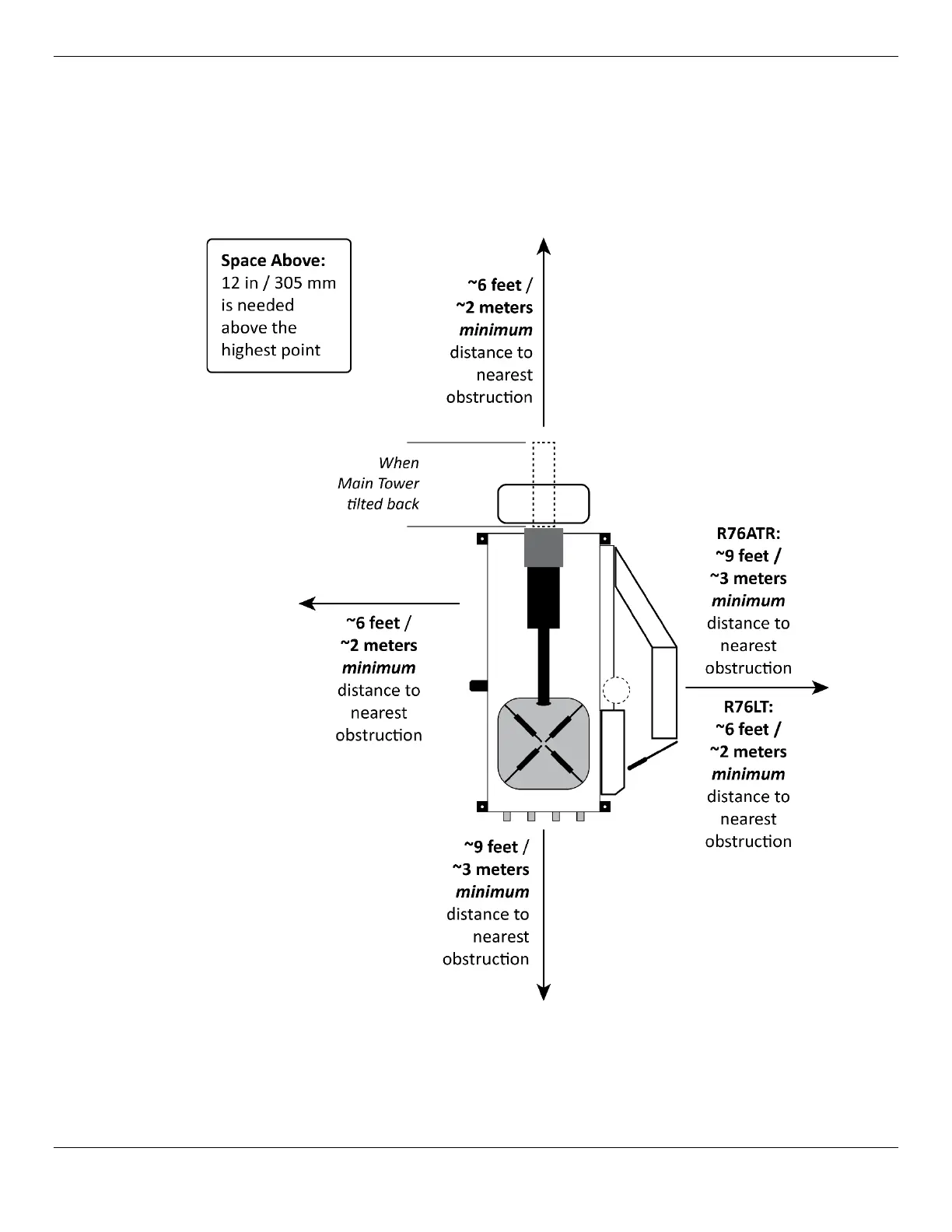

Top view. The additional room on the right for the R76ATR is for the Assist Arms.
