Air Pressure Gauge
Shows the air pressure in Tires to which the Air Chuck is attached.

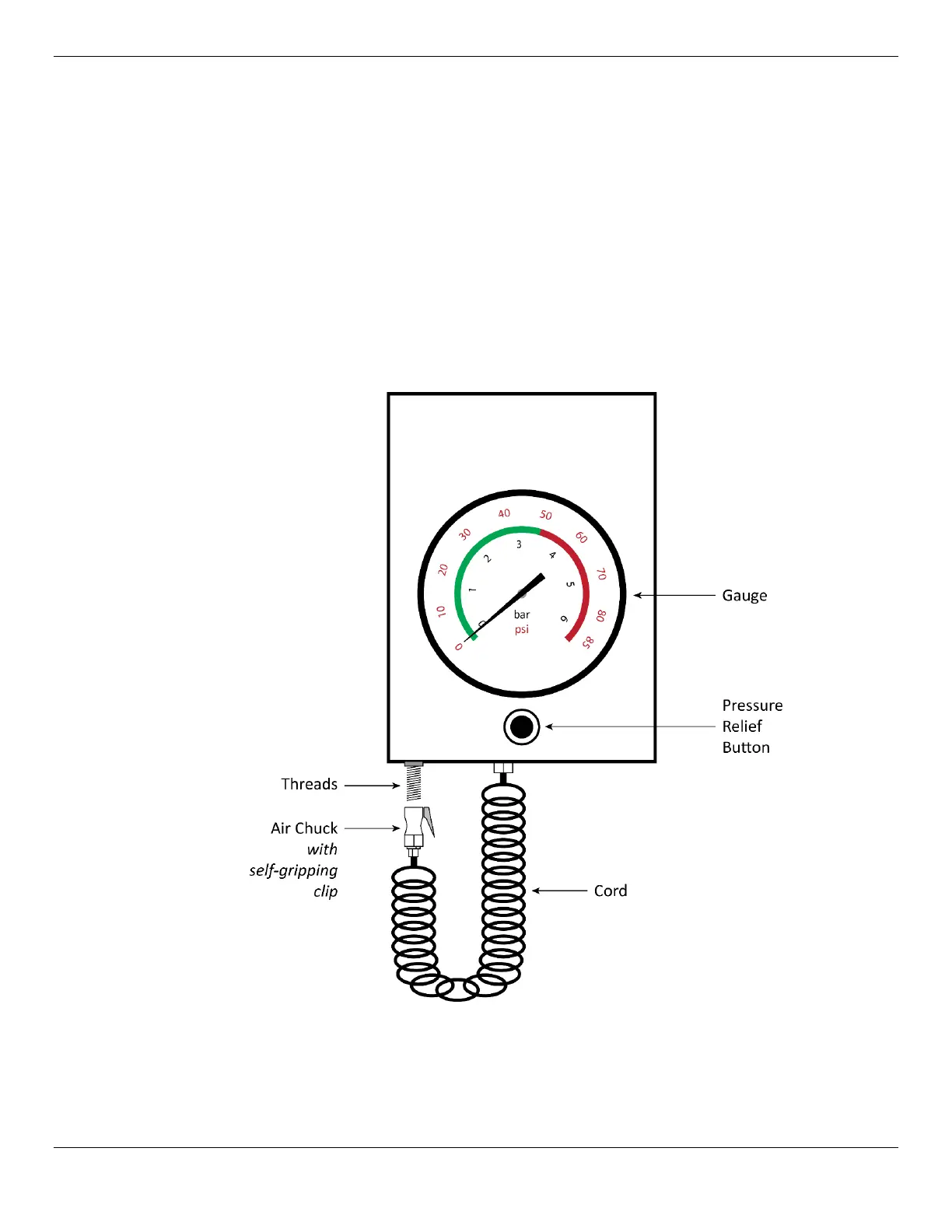

The components of the Air Pressure Gauge are:
• Gauge. Displays air pressure in the Tire to which the Air Chuck is attached.
• Pressure Relief Button. Removes air if a Tire gets overinflated.
• Cord. Extends and retracts so you can get the Air Chuck to the Tire.
• Air Chuck. Attaches to the threads on the Valve Stem. Includes a self-gripping clip so you do
not
have to hold the Air Chuck in place during inflation.
⚠ WARNING
Do not hold the Air Chuck while you are inflating a Tire
. This leaves you
close to the Tire, which could result in injury if there is a problem during inflation.
• Threads. Store the Air Chuck here using the self-gripping clip.
Front view. Not necessarily to scale. Not all components shown.
To see the pressure in a Tire
: Attach the Air Chuck to the Tire; the Air Gauge shows the air
pressure currently in the Tire. You do
not
need to press the Inflation Foot Pedal.
To see pressure during Tire inflation
: Attach the Air Chuck, move away from the Tire, then
press down the Inflation Foot Pedal. The Air Gauge shows the air pressure in the Tire as it inflates.
