Seat Height Adjustment
You are advised to ask your dealer to set the seat
height in the most comfortable driving position
Seat Removal

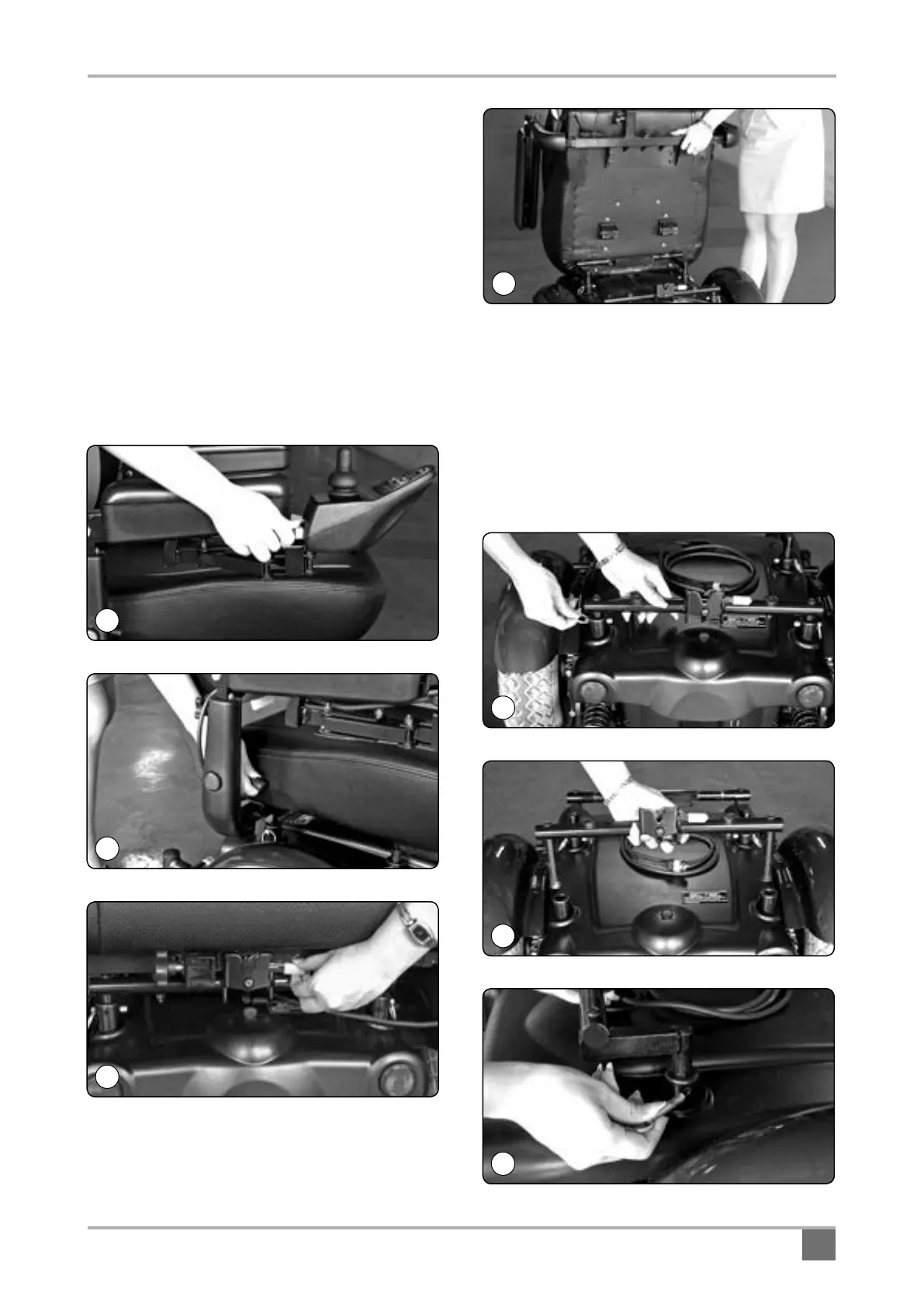

• Disconnect the cable from the joystick by
pinching and pulling the grey grip. Remove the
cable completely from the seat frame (Fig.8).
• Lift the backrest angle lever and tilt the
backrest forward (Fig.9).
• Unclip the set lock and tilt the seat forward (Fig.10).
• Take off the seat vertically by unhooking from
the front trapeze bar (Fig.11).
To adjust the seat height
• Remove the four retaining pins and adjust
each of the two trapeze bars to the required height
(Figs.12 &13).
• Secure both front and rear bars with the
retaining pins (Fig.14).
• Replace the seat and ensure it is locked in
position, reconnect the controller cable.
