Raspberry Pi 4 b User Manual

7/1/2019 Setting up your Raspberry Pi | Raspberry Pi Projects
https://projects.raspberrypi.org/en/projects/raspberry-pi-setting-up/print 9/34

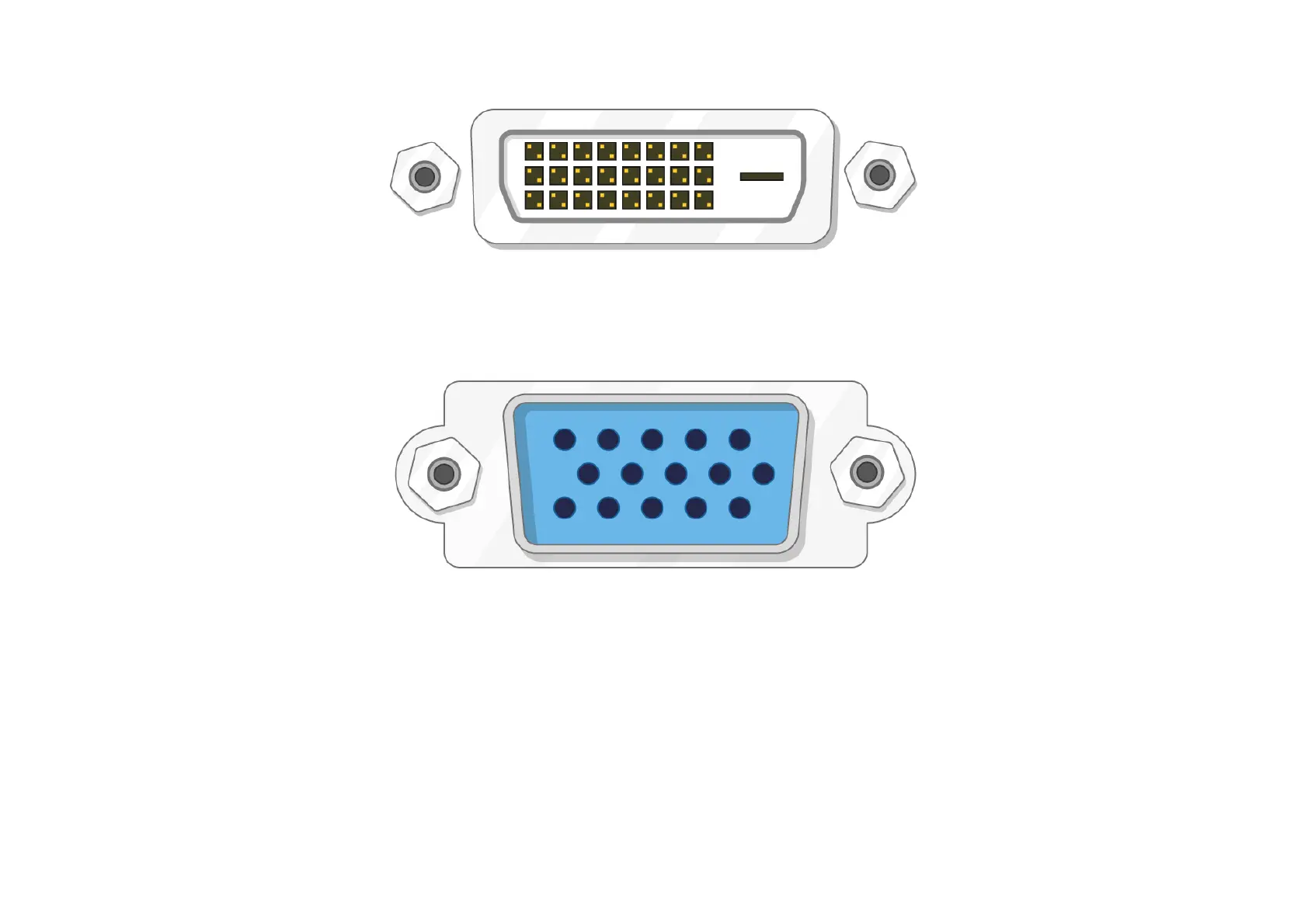

If your screen has a DVI port, you can connect the Pi to it using a HDMI-to-DVI cable.
VGA
Some screens only have a VGA port.
To connect your Pi to such a screen, you can use a HDMI-to-VGA adapter.

Raspberry Pi 4 b Specifications

General

Processor	Broadcom BCM2711, Quad core Cortex-A72 (ARM v8) 64-bit SoC @ 1.5GHz
RAM	2GB, 4GB, or 8GB LPDDR4-3200 SDRAM (depending on model)
Ethernet	Gigabit Ethernet
Video Output	2 × micro-HDMI ports (up to 4Kp60 supported)
Storage	MicroSD card slot for operating system and data storage
GPIO	40-pin GPIO header
Power Supply	5V DC via USB-C connector (minimum 3A*)
Wireless	2.4 GHz and 5.0 GHz IEEE 802.11ac wireless, Bluetooth 5.0, BLE
USB Ports	2 × USB 3.0 ports, 2 × USB 2.0 ports
Audio Output	3.5mm audio jack
Operating Temperature	0 – 50 °C
GPU	VideoCore VI graphics
Power Options	USB-C or GPIO header
