Rath 2500 SPRVSR Series User Manual

Page 3
Included:
• 2500-__ SPRVSR Supervisor Board(s)
• 4 pair RJ11 pigtail cables (quantity based on
model number)
• 12vdc power transformer
Items Needed
1. Swing out the Supervisor Board from the mounting bracket by removing the two screws on the left.
2. Take the RJ45 pigtail cables provided with the Distribution Module and plug them into the RJ45 jacks on the
Distribution Module.
3. Use a 110 style punch tool to attach the pigtail side of the the RJ45 harnesses to the punch down blocks on the
back of the Supervisor Board. Refer to the wiring diagrams below for the scheme used on the punch down blocks
and Distribution Module.
Installation & System Wiring
Not Included:
• 110 style punch tool
• Distribution Module (sold separately with Command Center
Base Station)
• RJ45 wiring pigtail cables (included with Distribution Module)
POWER IN
RETURN
+ 12VDC
2500-___SPRVSR
ALARM OUTPUT
N.C.
COMM
N.O.
4 Phones 4 Phones 4 Phones 4 Phones
2 Phones
1
2 34
5
6 7 8
9
101112
13
141516
17
181920
Flex Ports Can
be Used for
Outside Phone
Lines or Call
Stations

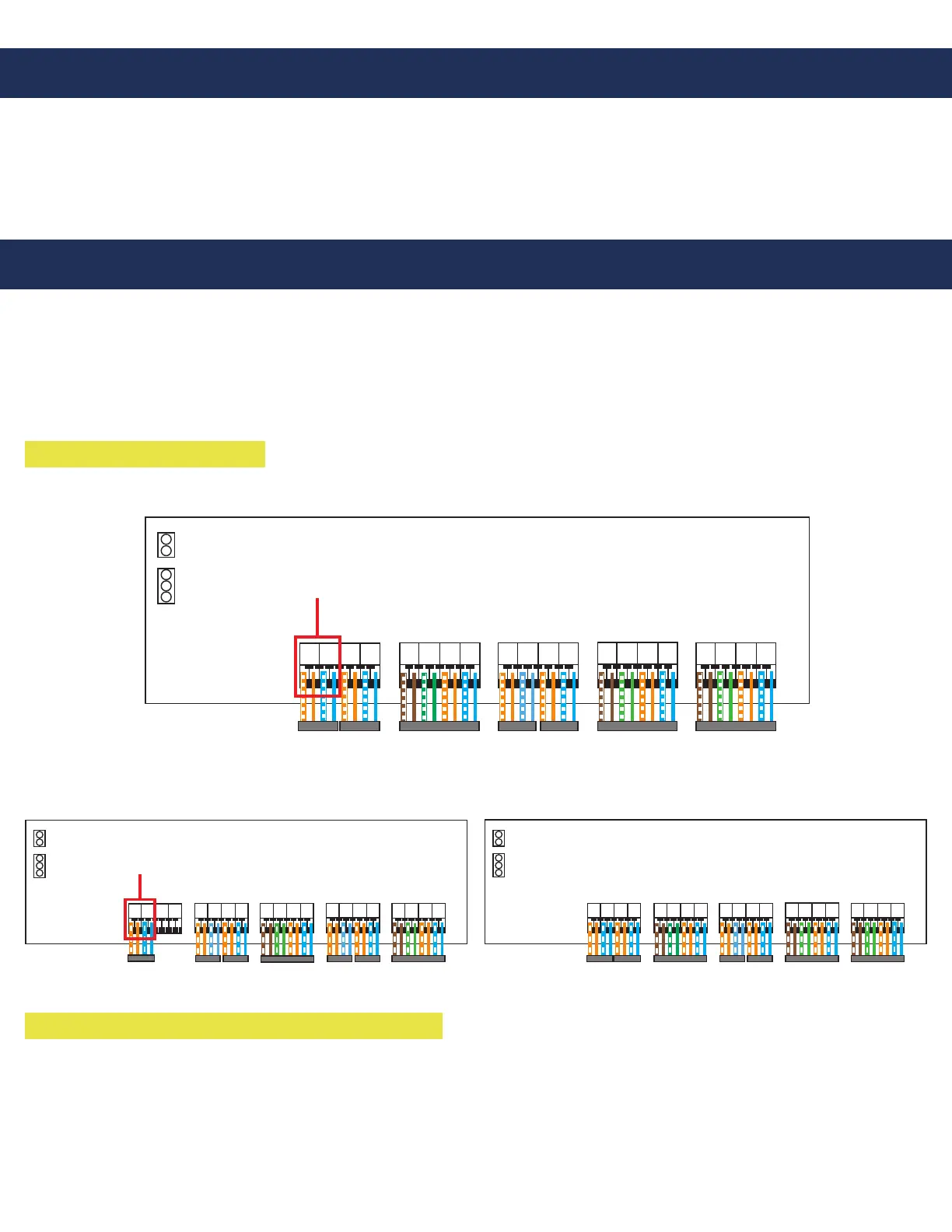

For 12-16 zone systems, one Supervisor Board is included. Wire as shown below:
For 28-36 zone systems, two Supervisor Boards are included. Wire as shown below:
POWER IN
RETURN
+ 12VDC
2500-___SPRVSR
ALARM OUTPUT
N.C.
COMM
N.O.
4 Phones 4 Phones 4 Phones 4 Phones
21
22 2324
25
26 27 28
29
303132
33
343536
37
383940
POWER IN
RETURN
+ 12VDC
2500-___SPRVSR
ALARM OUTPUT
N.C.
COMM
N.O.
4 Phones 4 Phones 4 Phones 4 Phones
1
2 34
5
6 7 8
9
101112
13
141516
17
181920
Supervisor Board 1Supervisor Board 2
4 Phones
Flex Ports Can
be Used for
Outside Phone
Lines or Call
Stations
Note: Do not follow the color scheme on the punch down blocks themselves.
Wiring 12-36 Zone Systems
• On top of each port there is a label indicating connection:
• STL is the port used for connecting Emergency Phones
• TWT is the port used for connecting outside Telco Lines
• The rst card installed will always be:
• Port 1: (01-04) connection for 4 Emergency Phones (SLT). Connects to Supervisor Board ports 1-4.
• Port 2: (05-06) connection for 2 Telco Lines (TWT). Connects to last Supervisor Board ports 19-20.
12-36 Zone Distribution Module Reference Wiring
