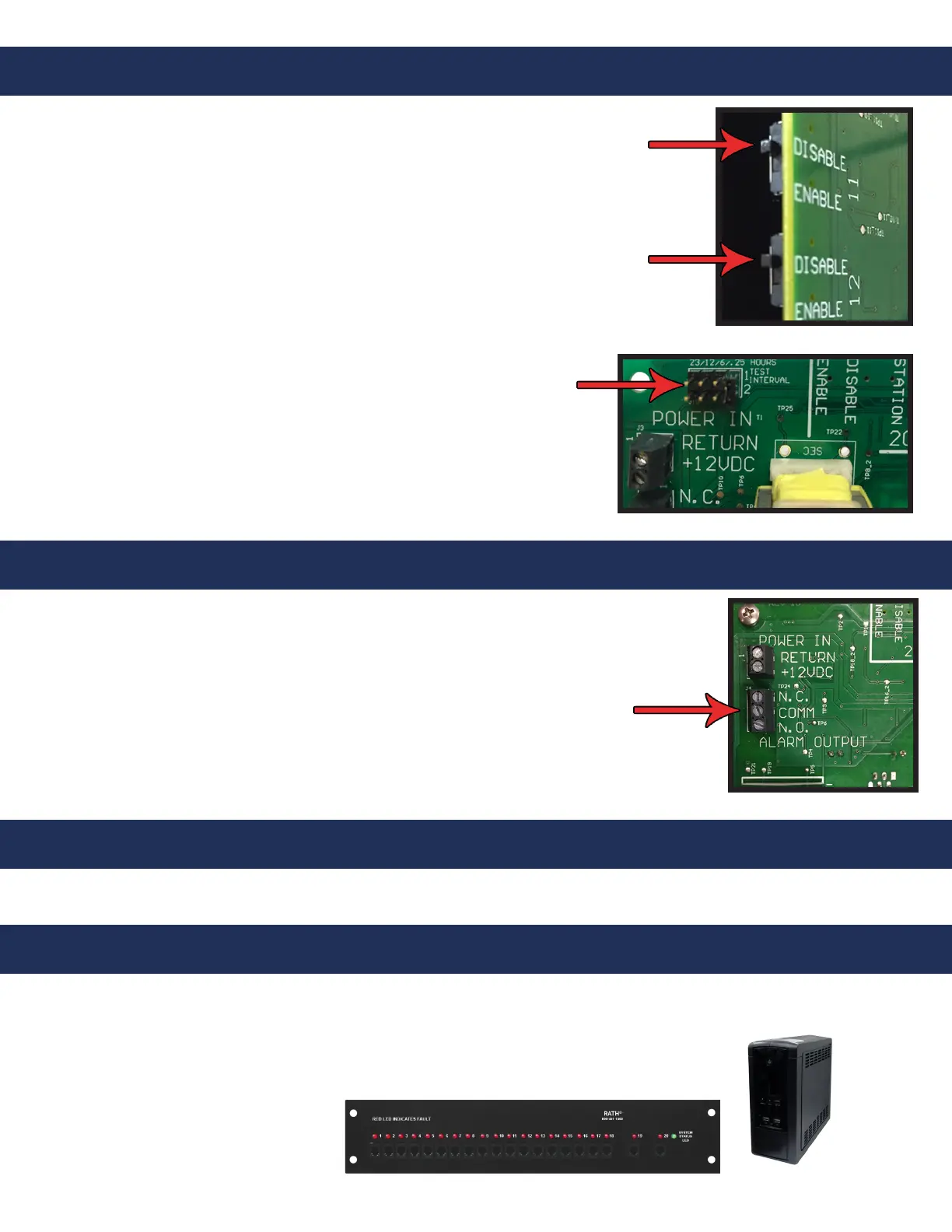

Page 8
The factory default setting for the switches is in the DISABLE position. Set the
switches on all the monitored ports to the ENABLE position. Any port that has
equipment connected to it should be monitored.
Setting Switches
An external device, such as a re alarm panel, must be connected to the Supervisor
Board for external fault notication. To do this, attach the wiring from the external device
to the Normally Open (NO) or Normally Closed (NC) contacts of the notication relay.
Mounting
Mount the Supervisor Board to a wall using the provided swing arm bracket or to a 19” rack (not included).
Complete System Connections
1. Plug the power transformer into the power source (wall outlet or UPS).
2. Ensure the LEDs associated with the connected Supervisor ports are NOT illuminated and the GREEN status
light IS illuminated.
Note: When the unit powers on it will do a full check. This can take up to 90 seconds.
Once the check is complete with no errors, the green system status light will illuminate.
UPS
Setting Check Interval
1. Locate the “Test Interval” jumper on the back of the board.
2. The line check can be set to one of the following: 15 minutes,
6 hours, 12 hours, or 23 hours. Default is 15 minutes.
3. After determining desired time, move jumper so it vertically falls
under the correct time.
Alarm Wiring
Supervisor Board
