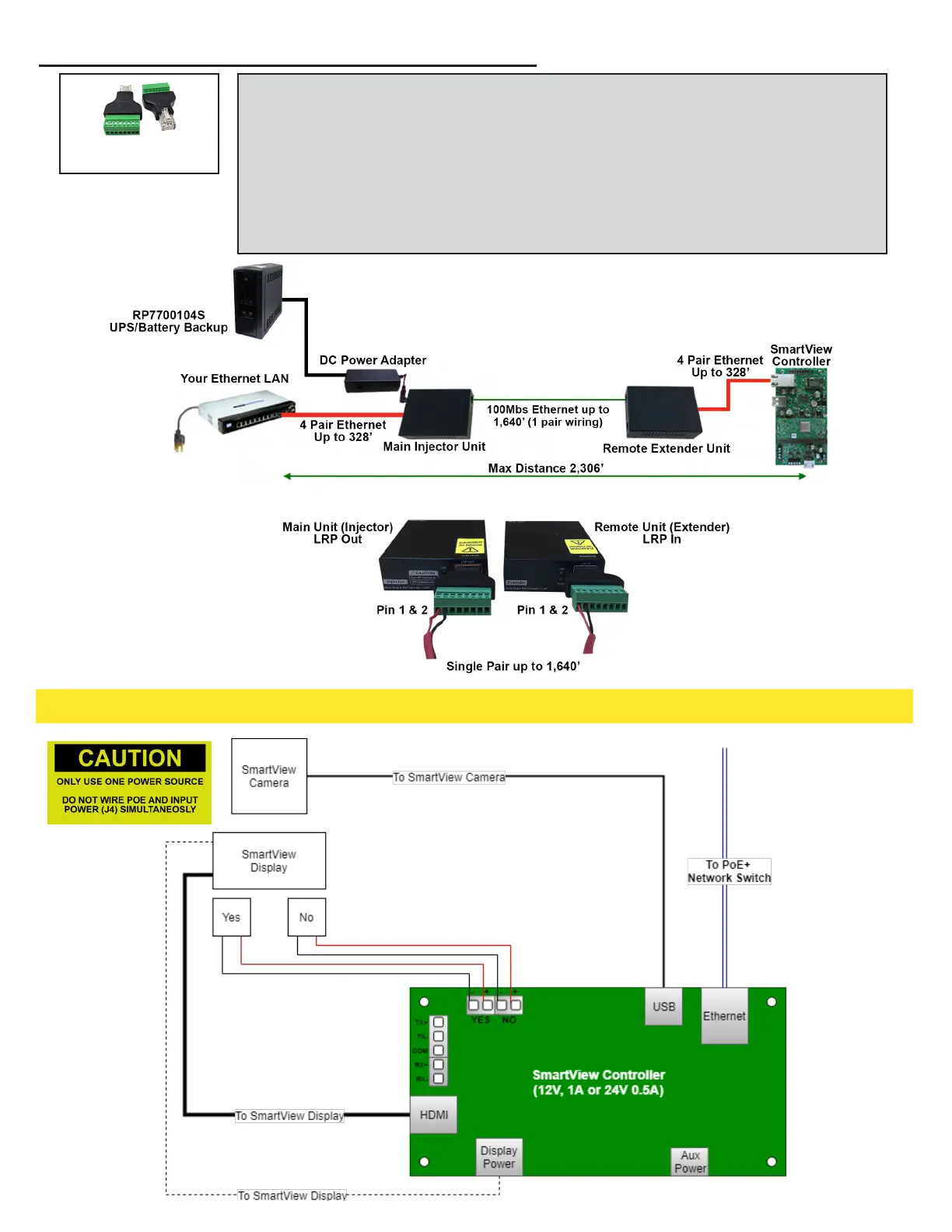

Wiring Example (Preferred Option for Standard Travel Cable):
RJ45 Adapters Included
with 2100-SVE
• Extender Power: Supplies 1A to the SmartView Controller
• Extender Wiring:
• Extends up to 1,640 feet over single pair of wiring between Extenders (requires
single pair, 18-24ga, shielded or unshielded)
• CAT5E with RJ45 connectors required from network switch and the SmartView
Controller to each Extender
• Main Unit (Injector) has LAN In (internet connection) and LRP Out (two wire connection)
• Remote Unit (Extender) has LRP In (two wire connection from main unit) and PoE Out
(Ethernet connection to SmartView Controller)
Wiring with PoE+ Network Switch
Page 6
**Minimum CAT5E Cable**
