4. Disassembly/ Replacement

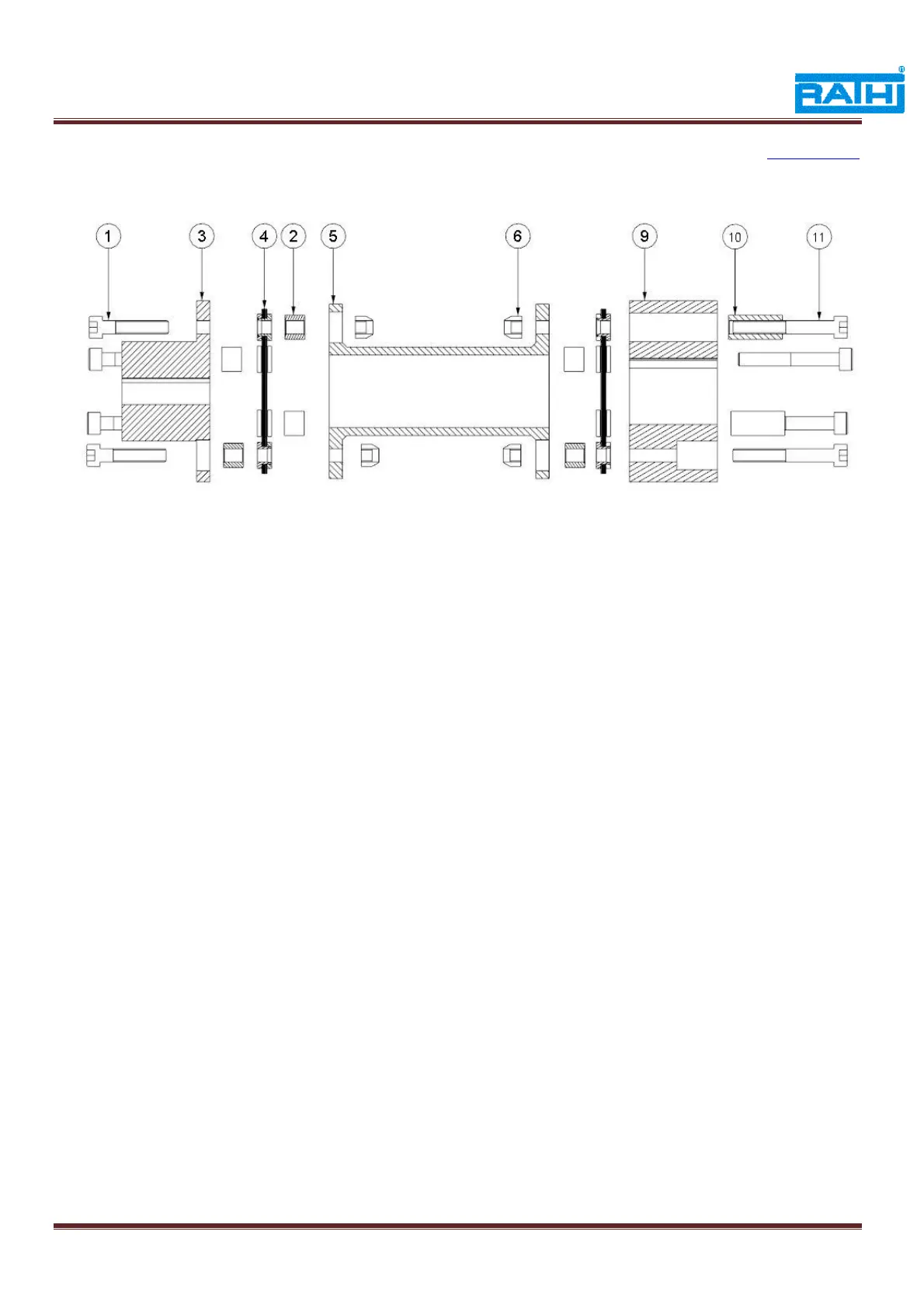

Fig. 7

4.1 Element blade pack

4.1.1 Disassembly

 Support canter spacer such that the blades should not be under stresses due to

external loads, such as spacer weight

 Dismantle components by loosening coupling bolts (1) from hub.

 Remove cleveloc nuts (7), bushing and blade pack (4).

4.1.2 Replacement

 Replace entire blade assembly of both sides with new factory assembled one,

replacement of one blade pack is not advisable (RLM).

 Tighten each cleveloc nut using incremental torque up to specified tightening

torque (Table 3) in progressive alternate pattern.
