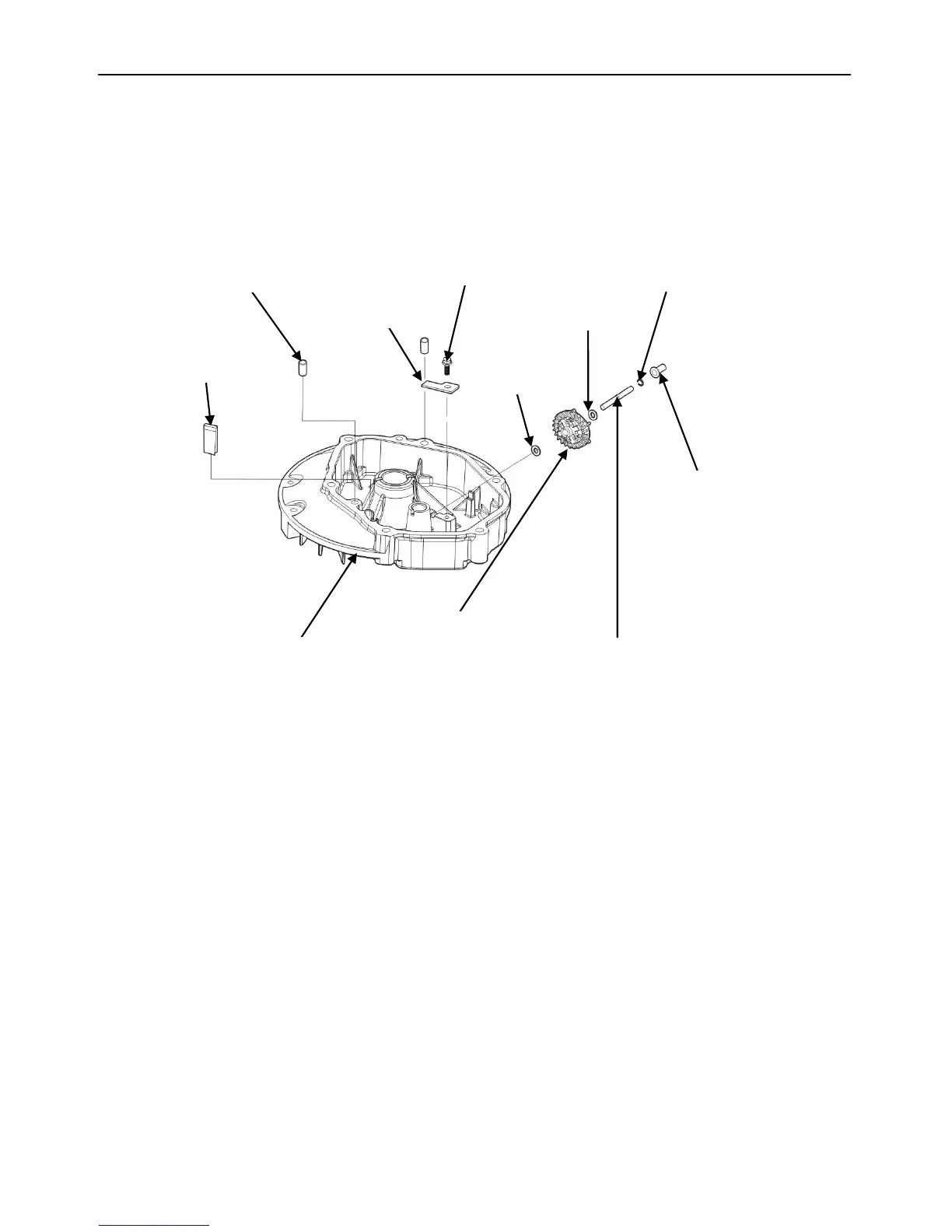

4-4-5 Governor
Removal / Installation
OIL BLOCK
PIN 8×14
Bolt M6×12
GOVERNOR
SHAFT HOLDER
PLATE
WASHER
6mm
GOVERNOR
DRIVEN GEAR:
Before Installing,
Check For Wear
and damage of
the gear.
WASHER 6mm
GOVERNOR HOLDER SHAFT
(Align The Shaft Groove With
The Projection In Case).
GOVERNOR SLIDER:
Insert the governor slider
into the governor shaft
and check for slider
moving smoothly.
CRANKCASE
COVER
