NOTE
1.PDA must support I/O cards in order to use the CF60U.
2.If you use PC Card slot, you need to have a CF Type II Adapter.
1-4.Pin Assignment
#4-40
1 2 3 4 5
6 7 8 9
DB-9pin(Male)
Pin # Description
1 Data Carrier Detect(DCD)
2 Receive Data(RD)
3 Transmit Data(TD)
4 Data Terminal Ready(DTR)
5 Signal Ground(SG)
6 Data Set Ready(DSR)
7 Request to Send(RS)
8 Clear to Send(CS)
9 Ring Indicate(RI)

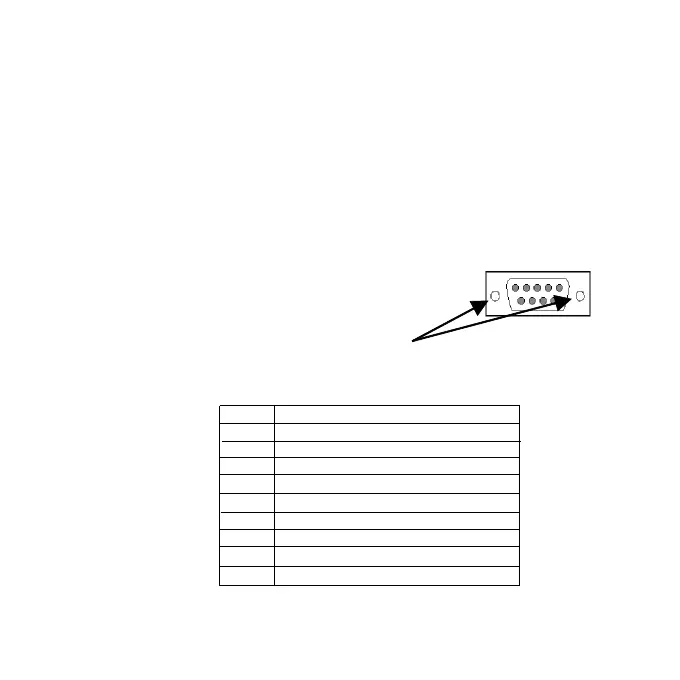

The pin assignment of the
connector is as follows:
This DB-9pin connector complies
with OADG specifications.
