GB
Page 36 of 60
INSTRUCTION, USE AND
MAINTENANCE MANUAL

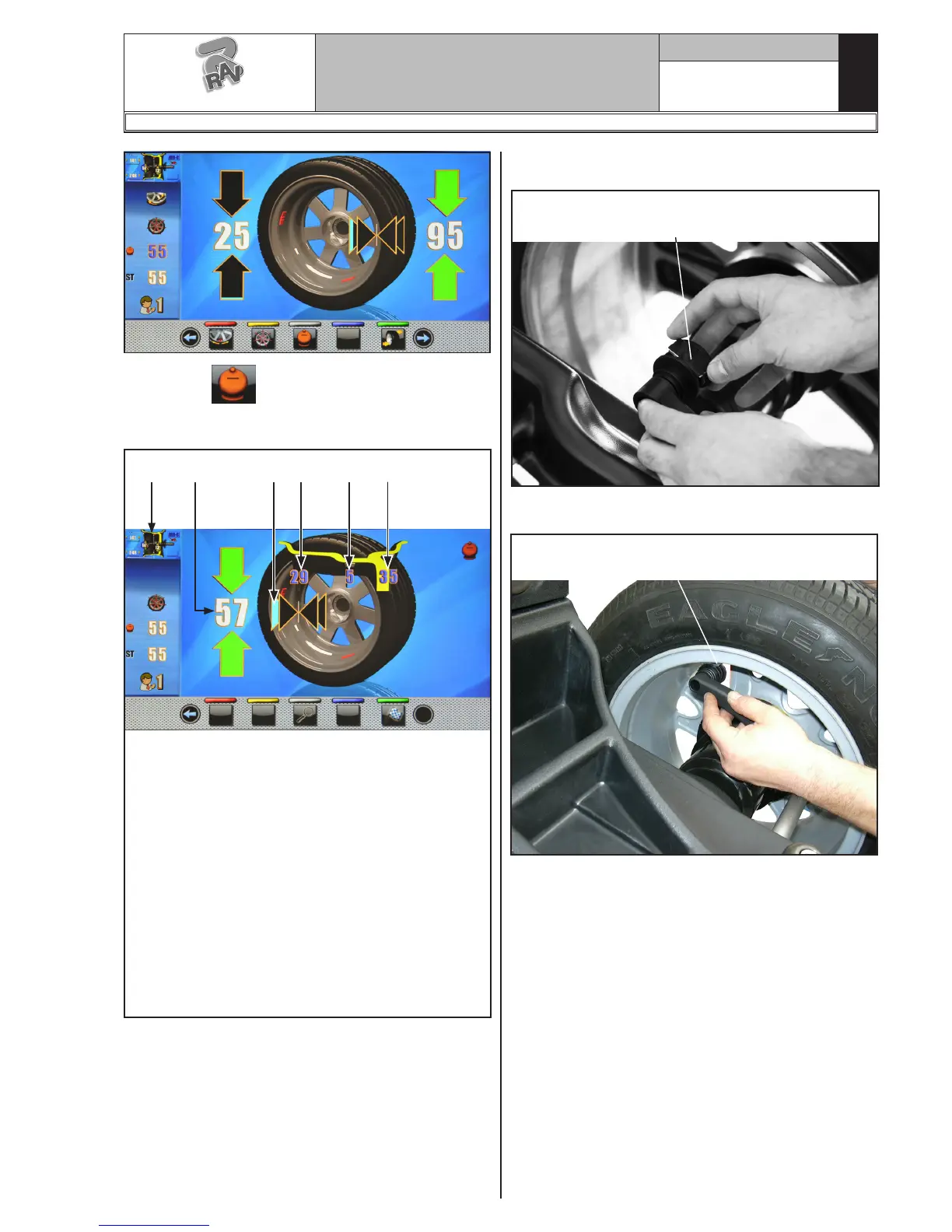

Press the brake pedal and fit the adhesive weight inside
pliers as shown in Fig. 50.
Fit the adhesive weight in the
pliers of the gauge rod
Fig. 50
Pull out the gauge rod until the arrows (Fig. 49 ref. 6)
turn green.
At the end of the procedure, the wheel balancing condi-
tions can be checked by performing a trial spin.
The ECO-WEIGHT procedure has now been completed.
Fig. 51
Fit weight on the position where
pliers touches the wheel
1
2 3 4 56
KEY
1 – Only weight to be fitted
2 – Last program and last values used for the spin
3 – Residual dynamic unbalance value (if the value
is blue it is not to carry out ECO-WEIGHT
procedure)
4 – Static unbalance value (if the value is blue it
is not to carry out ECO-WEIGHT procedure)
5 – Residual dynamic unbalance value (if the value
is blue it is not to carry out ECO-WEIGHT
procedure)
6 – Arrows indicating the weight fitting point with
distance-diameter caliper arm
Press button to select such procedure and bring
automatically the wheel into weight fitting position.
Fig. 49
G3.140R - GP3.140R - G3.140RS - GP3.140RS
RAVAGLIOLI S.p.A.
1297-M007-1_R
