35

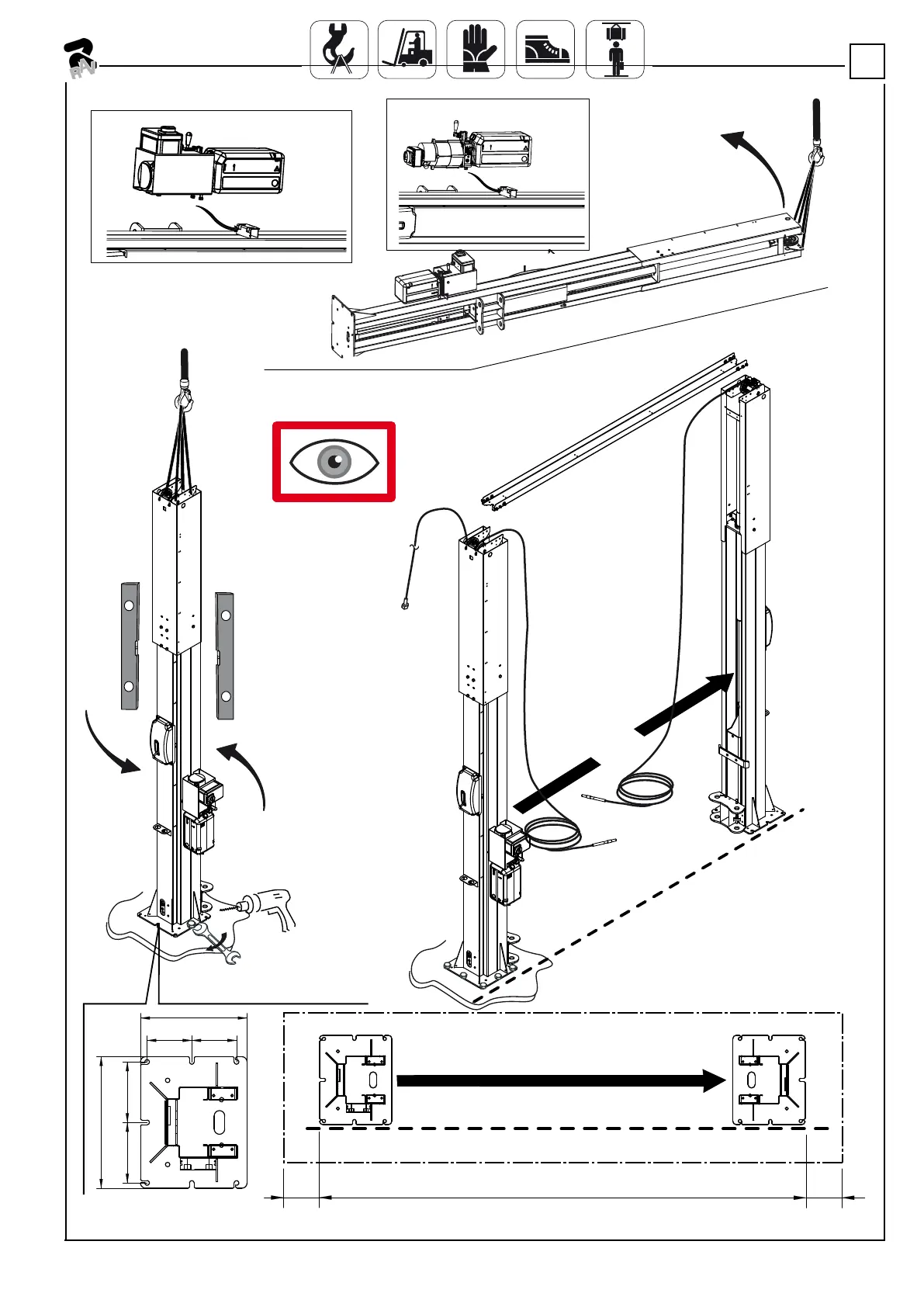

6
Ripetere tutte le operazioni descrit-
te nelle Fig. da 1 a 4 per il montag-
gio della colonna lato opposto.
5 kgm
Fig 5-
4b
4c
4a
230 230
500
170 170
405
4d
4e
4f
1500
4000
2596 (4200 kg) / 2476 (3200 kg)
2670 (4200 kg) / 2550 (3200 kg)
=
Vedere layout del vostro sollevatore
=
4g
4h
4h
4g
Fune-Rope
Flex-Hose
4b
4c
4a
4d
4e
4f
200 200
440
170 170
405
0484-M004-4
