SERVICE MANUAL
RAVAGLIOLI S.p.A.
RAVTD5040WD / 5060WD / 5080WD
RAVTD5080WS - RAVTD1760WS/1780WS
RAVTD1850WS - RAVTD2200WS
Code R0184 - rev.1.2
(01/2011)
Ravaglioli S.p.A. - Via I° Maggio, n° 3 (Frazione di Pontecchio Marconi)
Page 21/22
40037 Sasso Marconi (Bologna - Italy)
Tel. 051/ 67.81.511 – Fax 051/ 84.64.67 e-mail: rav@ravaglioli.com

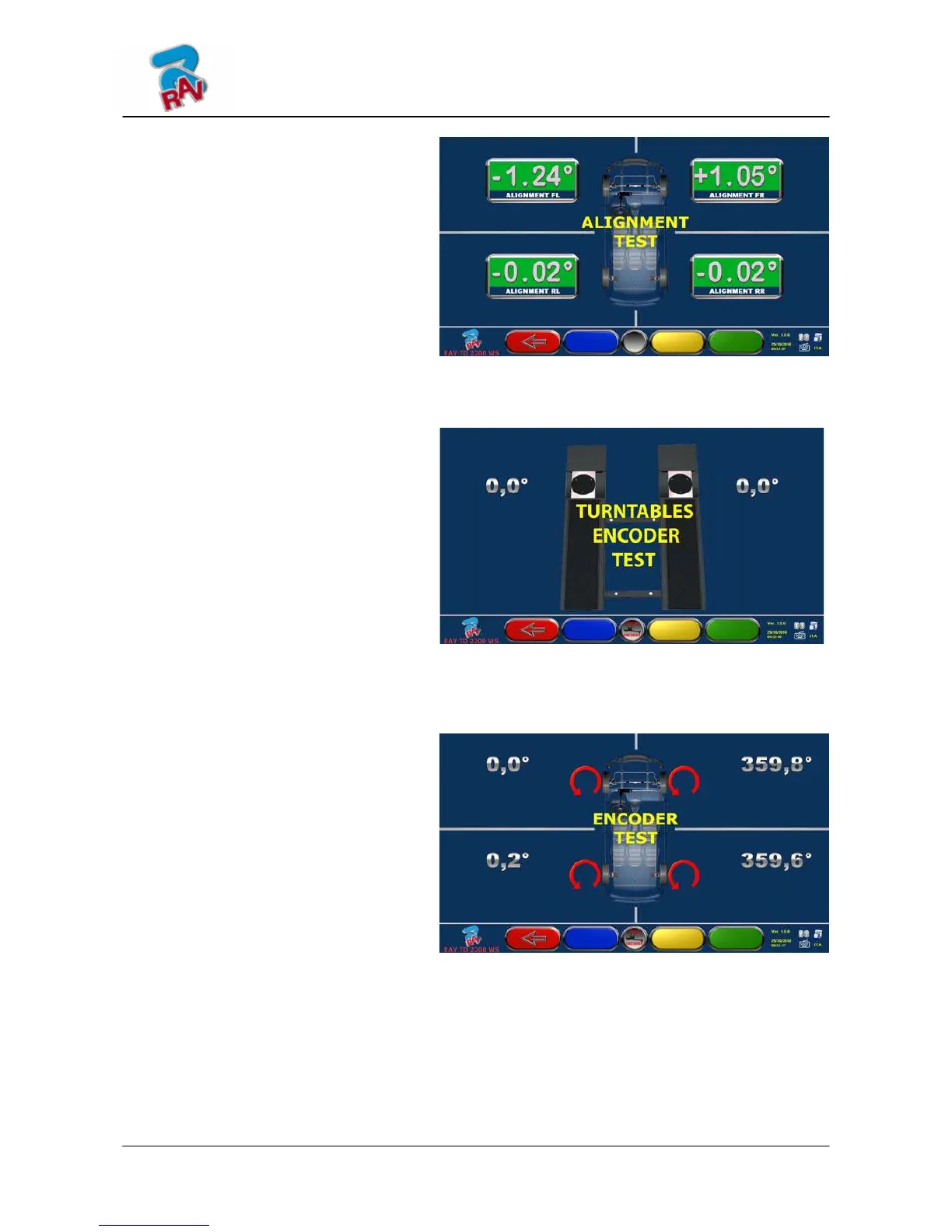

By pressing the key F5 were displayed a
picture that is a graphically
representation of all the angles initials
(see Figure 30).
Press F1 to exit
Figure 38
4.3 Encoder on turntables Test
On the screen are displayed the
readings of the angular transducer
(encoder) mounted below the turntables
(available only with models WS)
It is possible by this test verify the
correct working of the encoders simply
turning the upper plate and check that
the value displayed correspond to the
real angle carried out (see Figure 39).
The F5 key is used to set to zero the
value displayed on the screen.
Press the key F1 to exit
Figure 39
4.4 Encoder on Measuring heads
Test
On the screen are displayed the
readings of the angular transducer
(encoder) mounted on the measuring
heads (where provided). It is possible by
this test verify the correct working of the
encoders simply turning the shaft of the
measuring head and check that the
value displayed correspond to the real
angle carried out (see Figure 40).
The F5 key is used to set to zero the
value displayed on the screen.
Press the key F1 to exit
Figure 40
