Raven Envizio Pro Quick Reference Guide

14
Operation

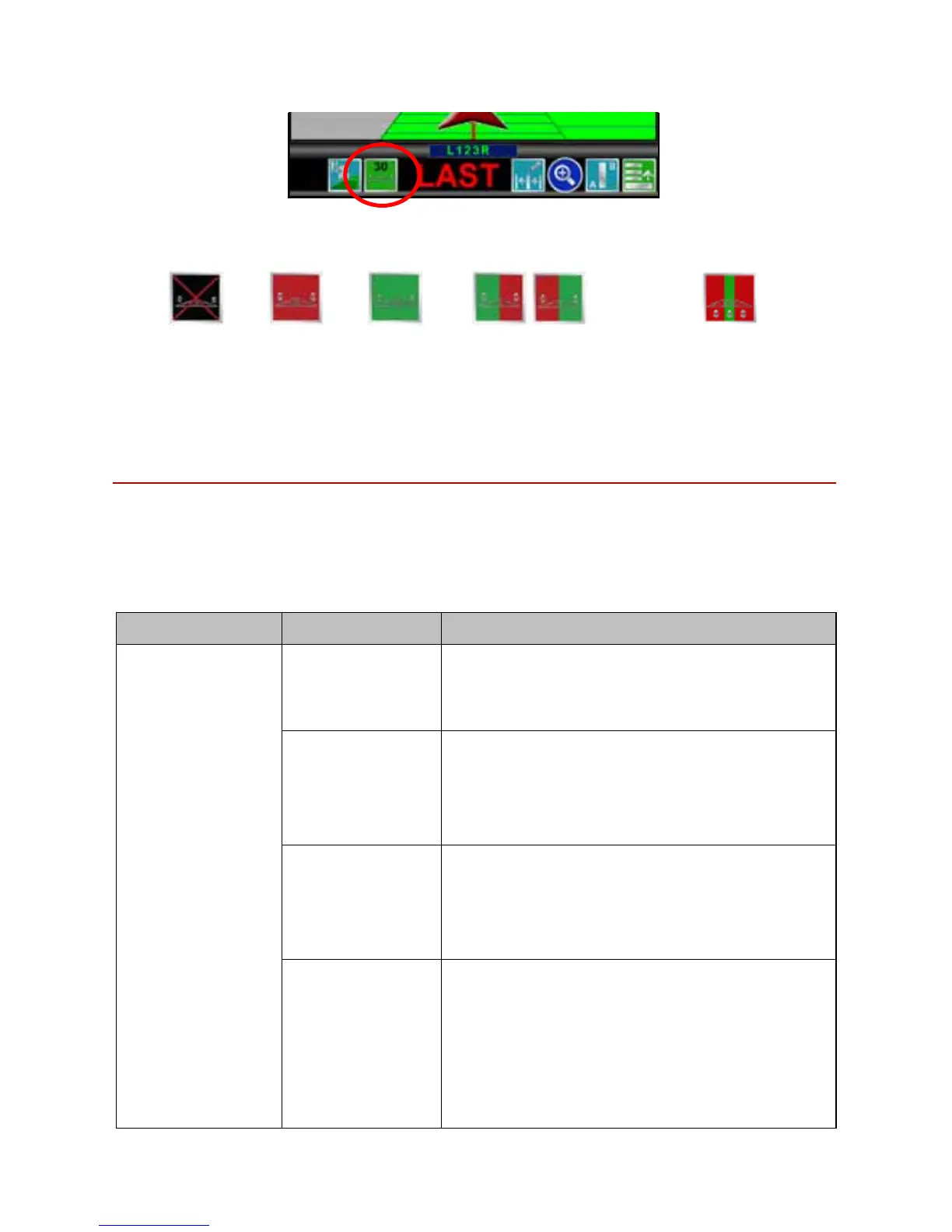

During a job, the AutoBoom™ Status Indicator will be displayed on the Envizio
Pro Guidance screen.
This area may display the following indicators for the current status of the
AutoBoom™ system:
Status of the center rack is only displayed if a Glide Series AutoBoom system
capable of controlling the center section is connected to the Envizio Pro console.
Touch the displayed status icon to access the Glide Series AutoBoom™
Calibration screen.
Troubleshooting
The following are a few general tips for troubleshooting the Envizio Pro system.
Refer to the Envizio Pro Installation & Operation manual for detailed
troubleshooting information.
Issue Possible Cause Solution
CANbus cannot
read the Product
Node
• CANbus ends
not terminated
• Make sure that both ends of the CANbus
system are properly terminated. Refer to
the Envizio Pro Installation & Operation
manual for more information.
• Corroded pins
in CANbus
connections
• Check CANbus cable connectors for any
highly corroded pins.
• Ensure dielectric grease has been
applied to all cable connections exposed
to weather and field conditions.
• Moisture in
connection
• Check CANbus cable connectors for any
corroded pins.
• Ensure dielectric grease has been
applied to all cable connections exposed
to weather and field conditions.
• Connectors
not seated
properly
• Check that all CANbus cable connectors
are inserted fully (until the locking tab is
engaged).
• Be sure to remove any moisture in
connections which were not properly
seated. Check for corroded pins and
apply dielectric grease when
reconnecting CANbus cables.
Disabled Off Left/Right
Enabled
Both
Enabled
or
Center Rack
Enabled
