Calibration: Calibration Wizard 13
CALIBRATION

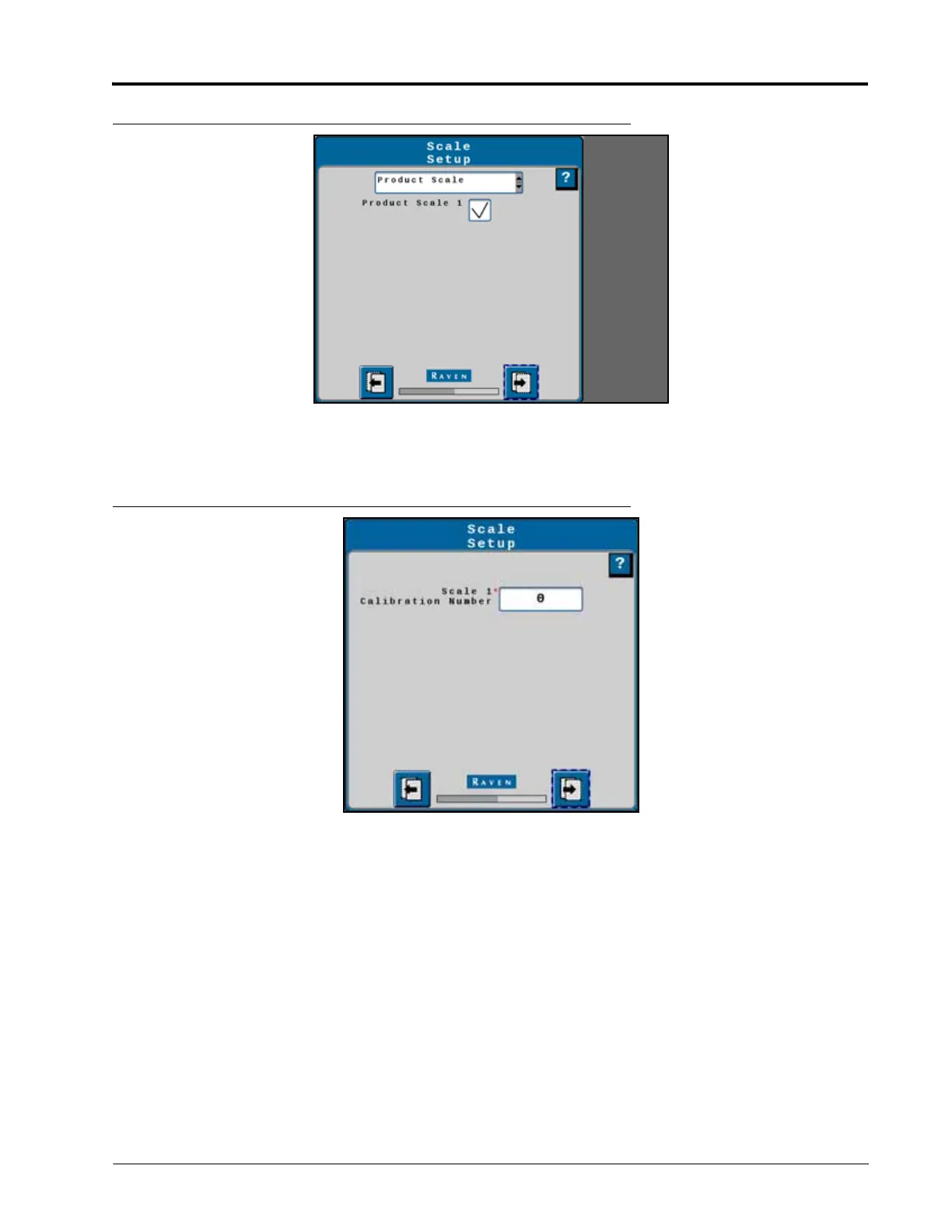

FIGURE 8. Scale Setup
22.Enter the calibration number for the scale. Refer to Chapter 6, Machine Settings, for manufacturer scale
calibration numbers.
FIGURE 9. Scale Setup
NOTE: The manufacturer scale calibration numbers are an initial starting point for the scale calibration. It is
highly recommended to verify the scale calibration with a known weight of at least 25% of the total
scale capacity, after initial scale calibration, to ensure scale accuracy.
23.Enter the number of pickups which the sensor reads per revolution of the shaft as the RPM 1 Calibration
Number.
NOTE: If the number of pickups is changed, this value must be changed accordingly.
24.Enter an initial value for RPM 1 Low Limit.
NOTE: Refer to Chapter 6, Machine Settings, for assistance with setting an initial RPM 1 Low Limit value.
