Raven RCM User Manual

CHAPTER 4
26 RCM Dry Manure/Litter Setup Guide
PROCEDURAL CALIBRATION
If the specific "mV Per Length” value is not known, select the “Procedural Calibration” button and complete the
following steps:

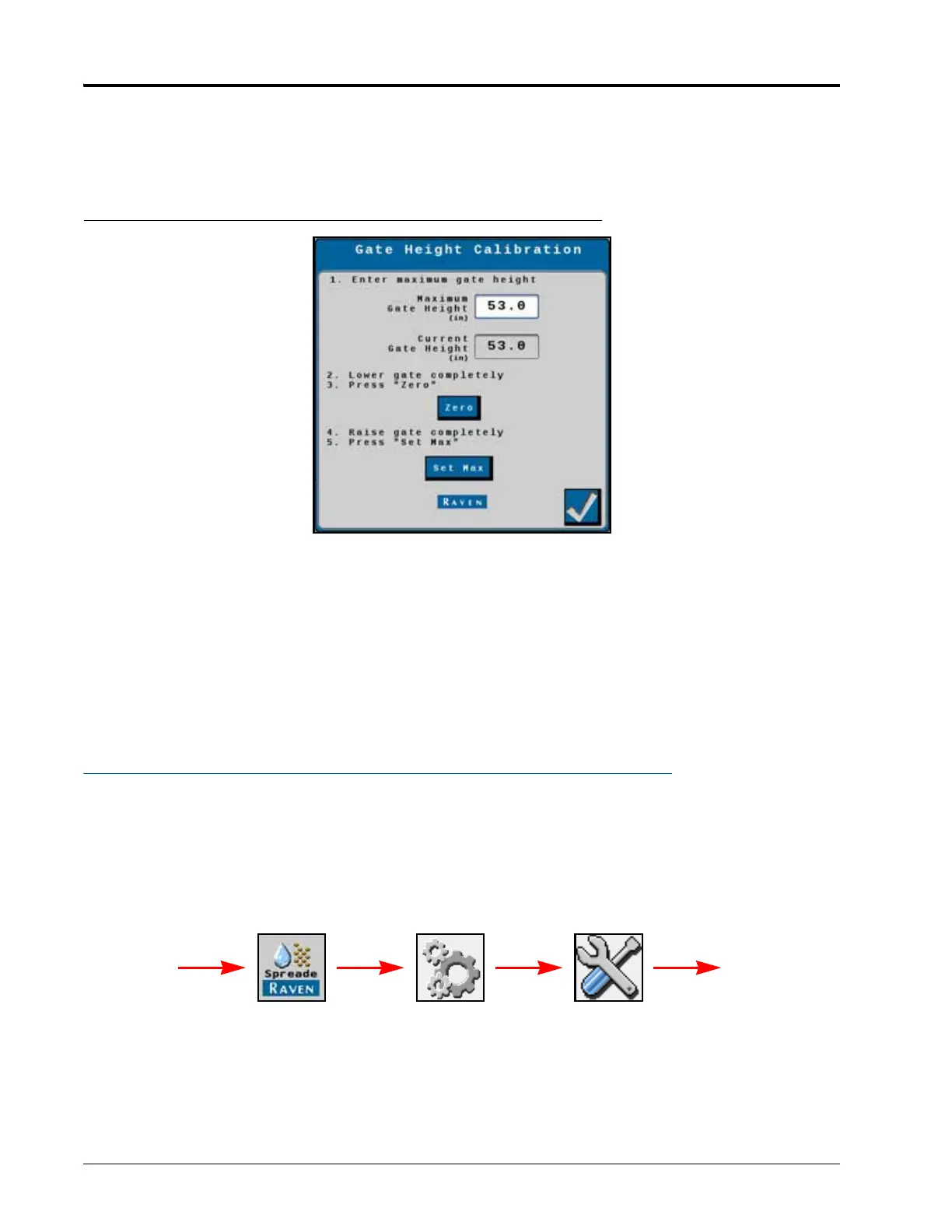

FIGURE 8. Procedural Gate Height Calibration
1. Enter the max gate height opening. Refer to Chapter 6, Machine Settings, for machine specific gate height
values.
2. Lower the gate to the full closed position.
3. Select the "Zero" button.
4. Raise the gate to the maximum height.
5. Select the "Set Max" button.
6. Select the check mark in the lower, right corner of the page to complete the procedural calibration.
ADJUST THE MANUFACTURER SCALE CALIBRATION VALUE
The manufacturer scale calibration number is a good starting point to achieve a basic scale calibration. However, it
is recommended to verify the scale calibration with a known weight for optimal performance.
NOTE: Refer to Table 2, “Scale Settings,” on page 43 for manufacturer scale calibration information.
Complete the following steps to adjust scale calibration:
1. From the RCM home page, select the “Tools” button along the right side of the page.
2. Select the “System Settings” tab and then the “Scale Setup” button.
RCM
Menu
Tools Menu System
Settings
UT Menu
Scale Setup
