Raven SCS 660 Programming

3 © 2010 Newton Crouch Inc. This information is the property of Newton Crouch Inc. and is loaned confidentially for the sole use of our customer. It must not be
used in any way detrimental to our interest or shared with outside parties. Technical Tips/Raven—SCS 660 Programming Instructions revised Rev 2.27.18
Application Type: __________ 3
L1 (Liquid Sprayer),
GR1 (Single Bed Belt) ……..…..
GR2 (Split Bed Belt)
Programming for your Raven SCS 660 Console Granular Mode
Valve Type: __________ 4
C-SD (Standard Valve)
C-F (Fast Valve)
C-FC (Fast Close Valve)
C-P (PWM Valve)
C-PC (PWM Close Valve)……….
C-NL1 (NL Valve 1 Hall Effect)
C-NL2 (NL Valve 2 Reed Switch)
Boom Cal: ________ 5
Length of your dry swath in INCHES
Example: a 60 Ft Swath = 720 In ________ 5A
You MUST enter a # for each boom. If you
are not using a boom 2, enter any number other
than 0 (zero)
30 ft = 360 in
36 ft = 432 in or 12—36” rows
38 ft = 456 in or 12—38” rows
40 ft = 480 in
45 ft = 540 in
48 ft = 576 in or 16—36” rows
50 ft = 600 in
50.67 ft = 608 in or 16—38” rows
Boom Cal: Spread Width in INCHES
54 ft = 648 in or 18—36” rows
57 ft = 684 in or 18—38” rows
60 ft = 720 in
72 ft = 864 in or 24—36” rows
76 ft = 912 in or 24—38” rows
80 ft = 960 in
Speed Cal: __________ 6
This number will have to be calibrated (see page 10)
780 starting number using Raven radar, changes with tire size
1000 starting number using a Dickey-John radar, changes with tire size
607 starting number using TeeJet speed sensor
795 starting number using Phoenix 200 receiver

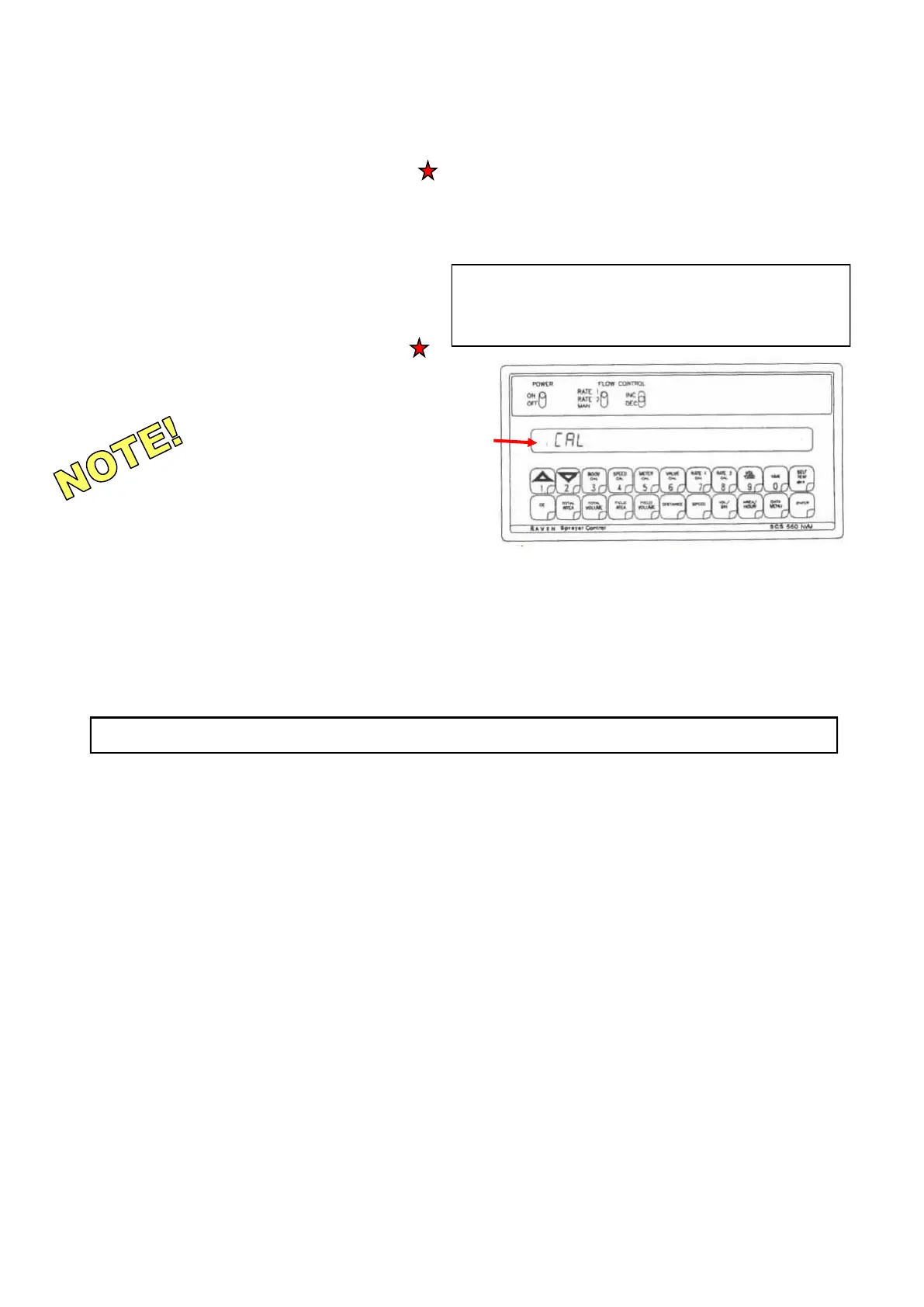

CAL (on left side of screen )
is blinking until all selections
are made! It stops blinking at
RATE 2 when a number is entered.
When you make a selection at VALVE TYPE,
the screen goes to CAL (blinking) SELF TEST
Continue by pressing BOOM CAL
