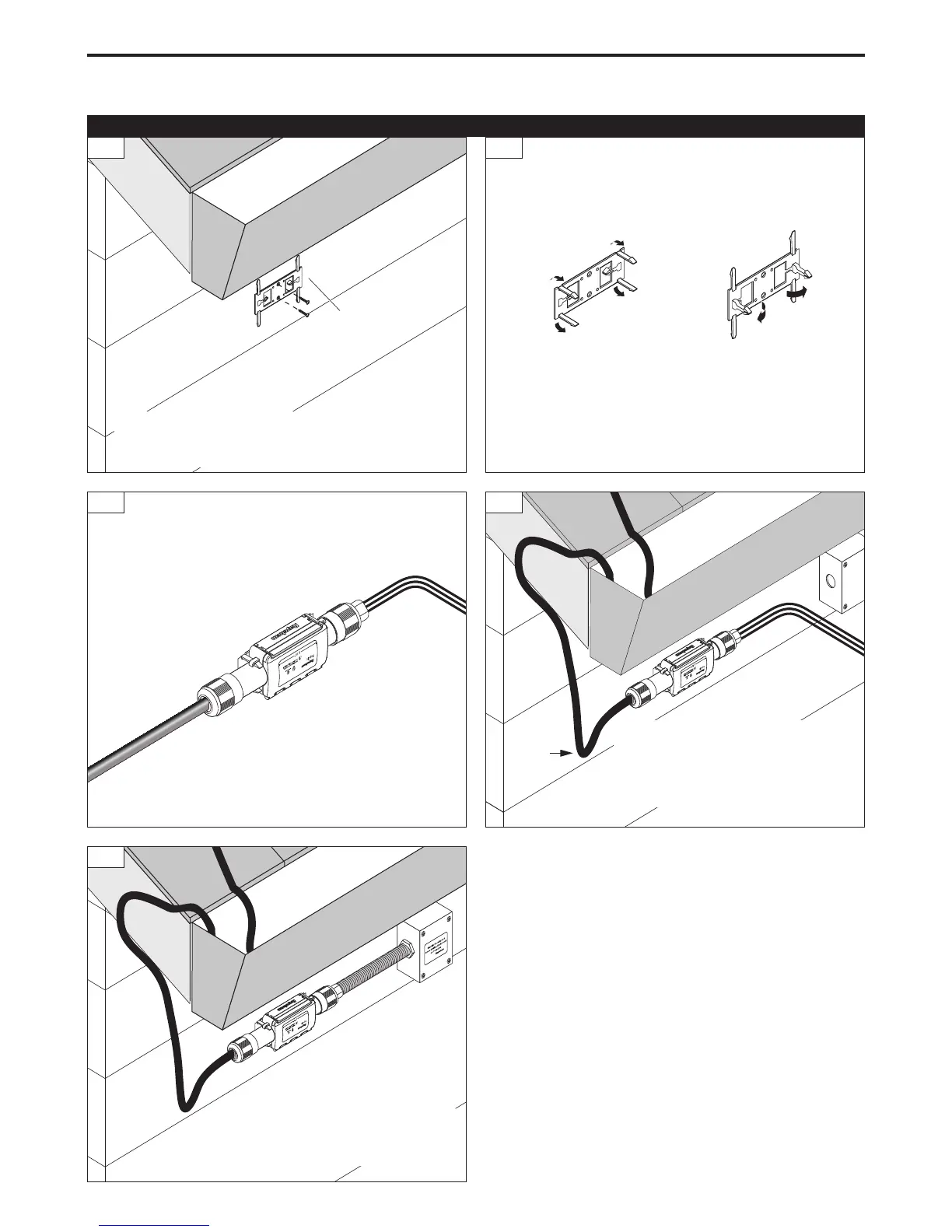

• Attach the connector to the mounting bracket
by pressing until it snaps in place.
• Complete heating cable installation and install
a drip loop as shown.
• Protect heating cable from sharp edges.
Power Connection
• Connect user-supplied 1/2-inch conduit
by following step 11 on page 4.
• Apply Electric De-Icing and Snow
Melting label on or near junction box.
RayClic-PC
RayClic-PS
and RayClic-PT
• Mount flat (wall mounting) bracket under eaves by installing screws
through the center holes.
Do not mount in gutter or where it may be immersed in water.
• Position attachment clips on mounting bracket based on the type of
the connector being installed.
• Connect heating cable as
detailed in steps 3 through
9 (pages 2–4).
3 4
5
5
RayClic-PC, RayClic-PS, RayClic-PT Installation Instructions
Roof Installation
To Next Page
