C120R Operator Service Maintenance Manual
32
Operation

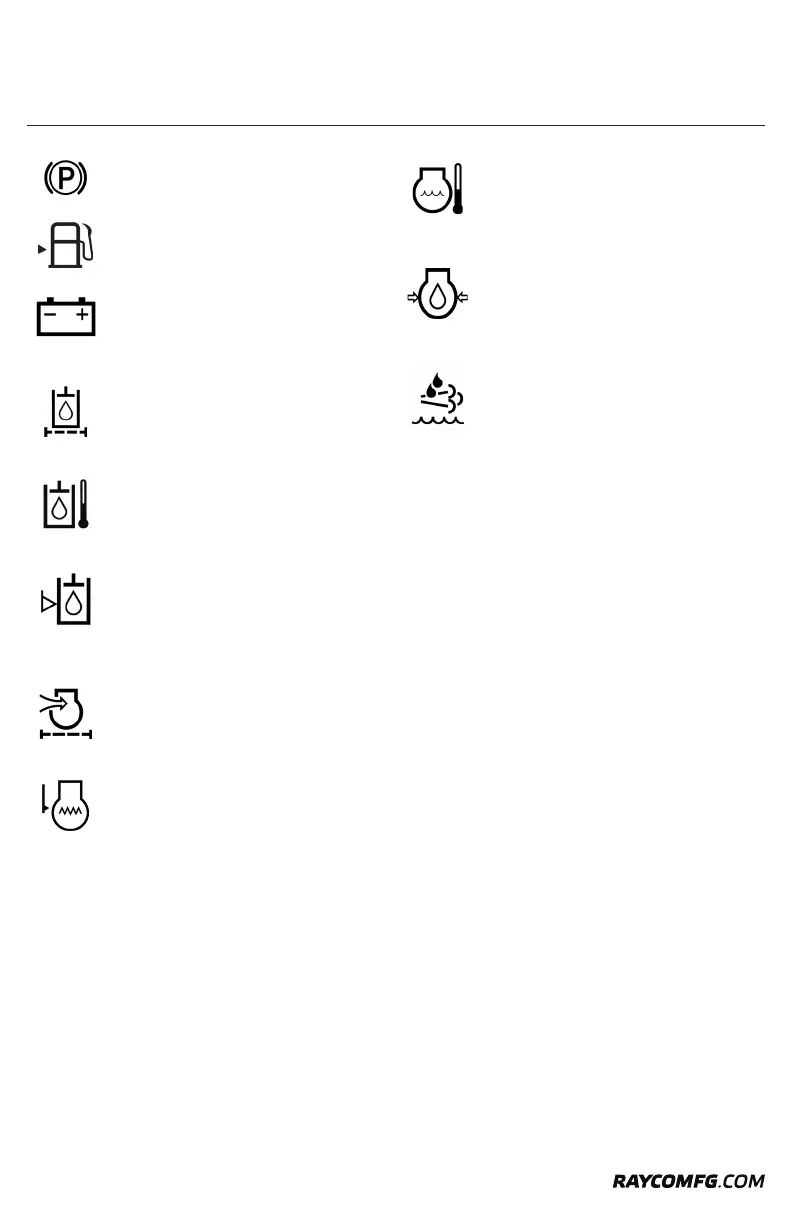

PARKING BRAKE (ON/OFF) - This
illuminates when the Parking Brake is applied to
final drive gearbox.
FUEL LEVEL - The fuel level gauge indicates
the amount of fuel in the fuel tank.
BATTERY CHARGE - This illuminates when
the battery is not being prop er ly charged or the
fan belt has broken. Shut off the engine, and
troubleshoot the electrical charging system.
HYDRAULIC OIL FILTER RESTRICTION
-This warning lamp indicates that oil is moving
through the filter element too slowly. Causes:
dirty filter, cold oil or a combination of the two.
Service immediately.
HYDRAULIC OIL TEMPERATURE -This
indicates the temperature of the hydraulic oil
. Engine will automatically shutdown in 30
seconds.
HYDRAULIC OIL LEVEL -This illuminates
when hydraulic oil in the reservoir drops below
the acceptable level. Shut off the engine
immediately! Engine will automatically shutdown
in 15 seconds. Check oil level and for any sign
of leaks.
AIR FILTER RESTRICTION - The intake air
cleaner restriction lamp indicates that the air
cleaner needs serviced.
ENGINE COOLANT LEVEL - When the
coolant level drops the lamp lights up. If the
indicator light comes on, the engine will shut off
after 15 seconds. Check the coolant level and
for any leaks.
ENGINE COOLANT TEMPERATURE - Too
much heat is a sign of engine trouble, and
damage will occur if not corrected. The lamp
will come on at (230°F/110°C) and the engine
will shut down after 10 seconds.
ENGINE OIL PRESSURE - When the oil
level drops, oil pressure drops, and the lamp
lights up. If the indicator light comes on, the
engine will shut off after 10 seconds. Check the
oil level.
LOW DEF (DIESEL EXHAUST FLUID)
INDICATOR - When the Low DEF light
illuminates, the level is low in the DEF tank and
needs refilled as soon as possible. Refer to
the CAT engine manual for engine derate and
shutdown schedule. This light also Indicates
after treatment problem, fault, or issue. If light illuminates
check engine fault codes and repair as required.
