C120R Operator Service Maintenance Manual
800.392.2686
67
Troubleshoot

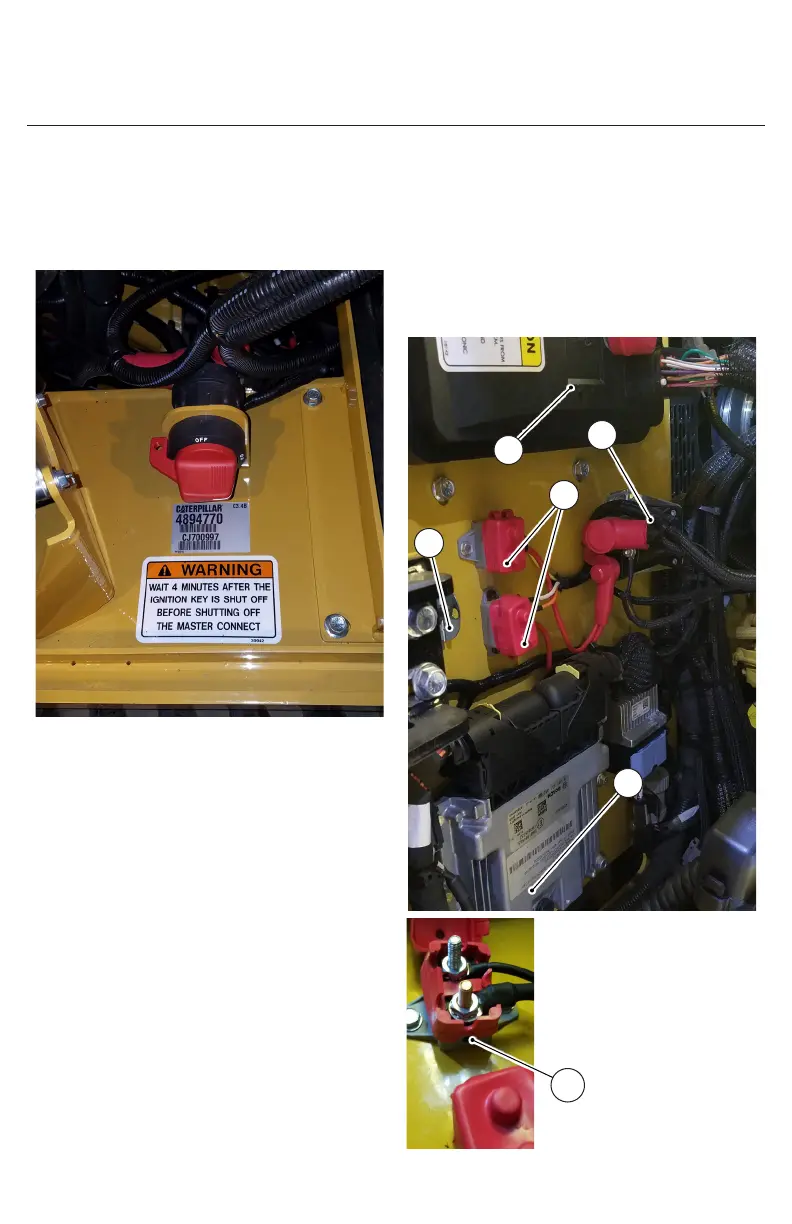

Master Electrical Switch
The main electrical switch is located at the base of the
battery on the left hand side of the engine compartment.
This switch is used to immobilize the machine or
disconnecting power for service or storage.
Note: Wait 4 minutes after the ignition key is shut off
before shutting off the master connect.
Main Power Source
The following picture shows the main power source for
the C120R.
1. Frame Logic Control Module (LCM)
2. Power Distribution Solenoid
3. Circuit Breakers
4. Engine Compartment Light Switch
5. Engine Control Module (ECM)
NOTE: Circuit Breakers are
equipped with a manual reset
button (3A) located on the bottom
of the breaker.
1
2
3
4
5
3A
