Rayco C120R - Battery Cable Kit 39573 Rev A

C120R Operator Service Maintenance Manual
76

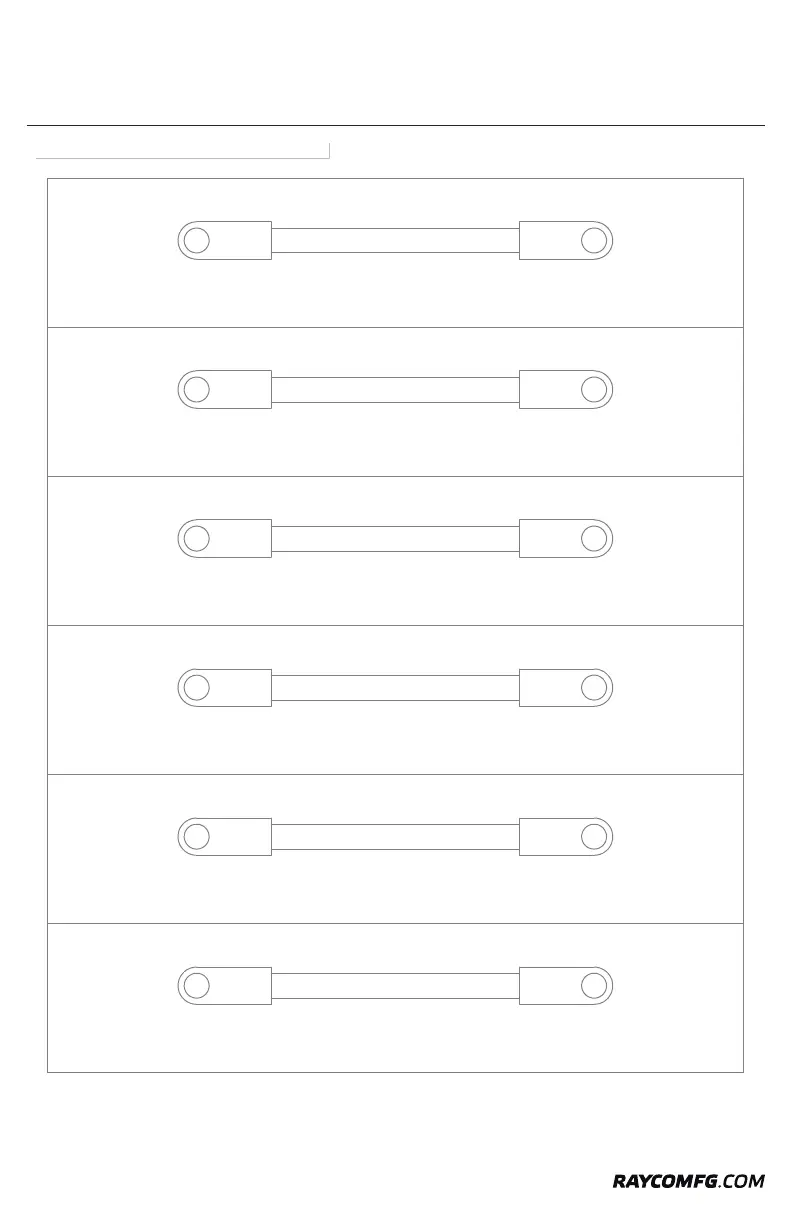

Battery Cable Kit 39573 Rev A
BATTERY POST
POS.
TYPE 'A' & 'C'
BATT. DISC.
IN
TYPE 'A' & 'C'
18" 2/0 RED
39573-01
BATT. DISC.
OUT
TYPE 'A' & 'C'
39573-02
20" 2/0 RED
STARTER
POWER
TYPE 'A' & 'C'
TILT MOTOR
TYPE 'B' & 'C' 39573-03
108" 2 RED
BATTERY POST
POS.
TYPE 'A'
BATTERY
NEGITIVE
TYPE 'A' 39573-04
32" 2/0 BLK
FRAME
GROUND
TYPE 'A'
BATTERY
NEGITIVE
TYPE 'A' & 'D' 39573-05
32" 2/0 BLK
STARTER
GROUND
TYPE 'A'
NOTE:
ALL CABLES ARE MEASURED CENTER OF EYE TO CENTER OF EYE.
1.
All cables to covered by loom unless otherwise specified. 2.
Loom is split plastic rated for 300
F and to be of minimum diameter.
All pieces to be individually labeled. 3.
All cables to utilize welding cable. 4.
All ring terminals to be soldered and crimped. 5.
FRAME
GROUND
TYPE 'A'
FRAME
GROUND
TYPE 'A' 39573-06
62" 2 BLK
Terminal Legend
A - COPPER RING TERMINAL FOR 3/8 STUD (W/ADH. HEAT SHRINK)
B - COPPER RING TERMINAL FOR 5/16 STUD (W/ADH. HEAT SHRINK)
C - VTE SERIES 487 TERMINAL INSULATOR OR EQ. (RED)
D - VTE SERIES 487 TERMINAL INSULATOR OR EQ. (BLACK)
CABLE LENGTH TOLERANCE
LESS THAN 12" +1/16" -0"
12" TO 48" +/- 1/8
48" TO 100" +/-1/4"
GREATER THAN 100" +/- 1/2"
REVISIONS
REV. DATE DESCRIPTION BY ECO#
A 12/14/2018
ADD NOTE #5: ALL RING TERMINALS TO BE SOLDERED
AND CRIMPED.
EDT 18-240
RAYCO MFG, INC.
CAD GENERATED DRAWING,
DO NOT MANUALLY UPDATE
DWG. NO.
CABLE-BATTERY KIT
DATE
SCALE
FINISHED WEIGHT
SHEET
UNLESS OTHERWISE SPECIFIED
DIMENSIONS ARE IN INCHES
TOLERANCES ARE:
FRACTIONAL 1/32
.00
.010
.000
.005
ANGULAR
1
MATERIAL
MATL
DO NOT SCALE DRAWINGS
C120
39573
OF
WOOSTER, OHIO
07.30.2018
1:1
0.000
1
1
THE INFORMATION CONTAINED IN THIS DRAWING IS THE SOLE PROPERTY OF
RAYCO MFG, INC. ANY REPRODUCTION IN PART OR WHOLE WITHOUT
THE WRITTEN PERMISSION OF RAYCO MFG, INC. IS PROHIBITED.
EDT
CHKD
DRWN
LGS
