Raymarine Axiom 12+ RV - Parts Supplied - Axiom 9+ (DISP) and Axiom 12+ (DISP); Document and Product Information

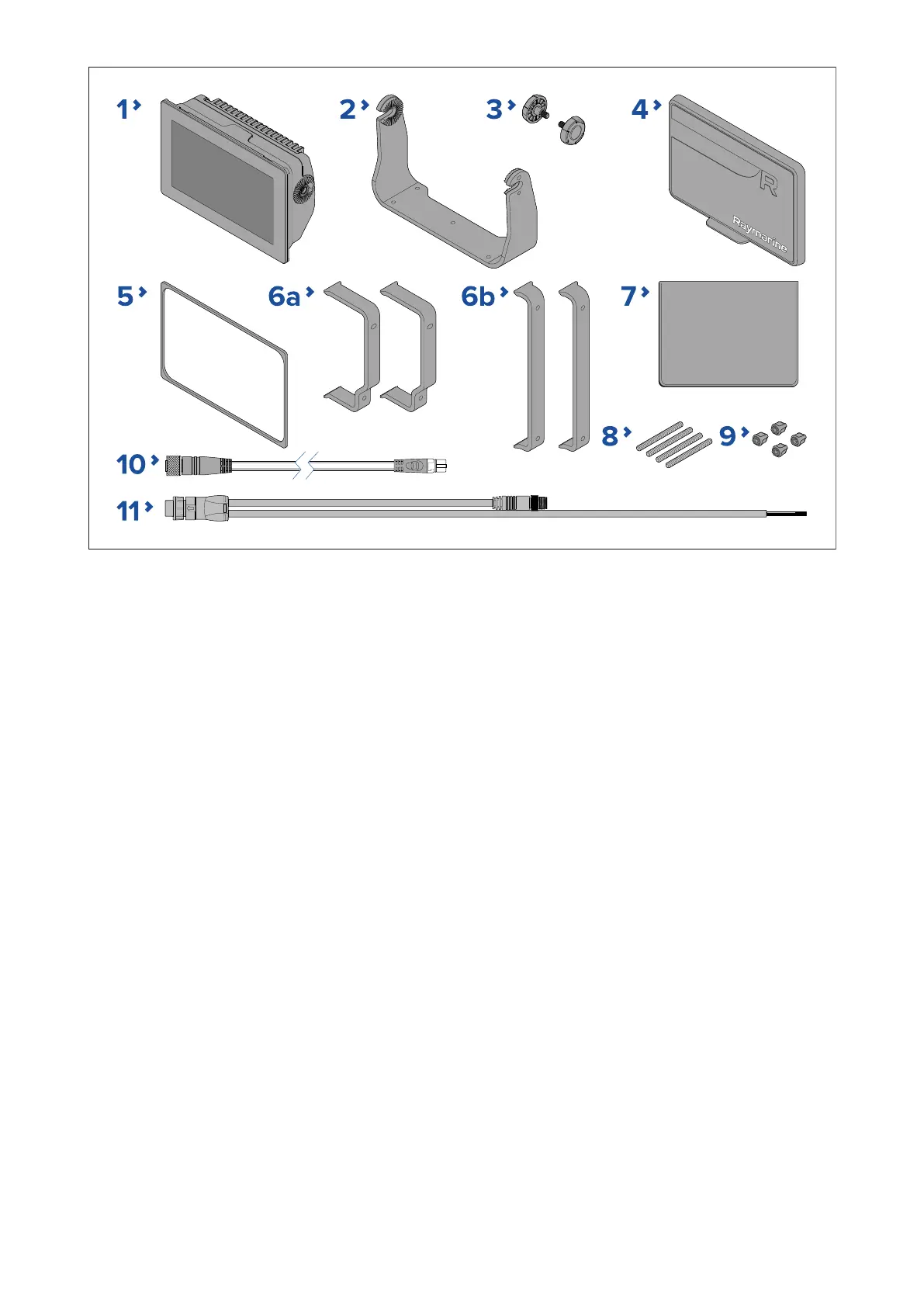

1.MFD
2.T runnionbracket
3.Trunnionknobsx2
4.Suncover
5.Panelmountgasketforsurface/flushmounting
6.Rearmountingbrackets:
a.suppliedwith9”MFD
b.suppliedwith12”MFD
7.Documentationpack
8.M5x58Threadedstudsx4
9.M5Thumbnutsx4
10.DeviceNettoSea Talkng®adaptorcable120mm(4.7in)
11.Power/NMEA2000cable(with1.5m(4.92ft)powerleadand0.5m(1.64ft)NMEA2000lead).
E70637–03isalsosuppliedwithaRealVision™3DRV-100transducerandassociatedfittings.
E70639–03isalsosuppliedwithaRealVision™3DRV-100transducerandassociatedfittings.
2.7Partssupplied-Axiom™9+(DISP)andAxiom™12+(DISP)
Thepartslistedaresuppliedwiththefollowingproductnumbers:E70636–DISP,E70637–DISP,
E70638–DISPandE70639–DISP.
Unpackyourproductcarefullytopreventdamageorlossofparts.Checktheboxcontentsagainst
thelistbelow.Retainthepackaginganddocumentationforfuturereference.
