P/N 241417Rev 4
Effective: 12-04-12
Replaces: 10-07-11
Page 10
IMPORTANT

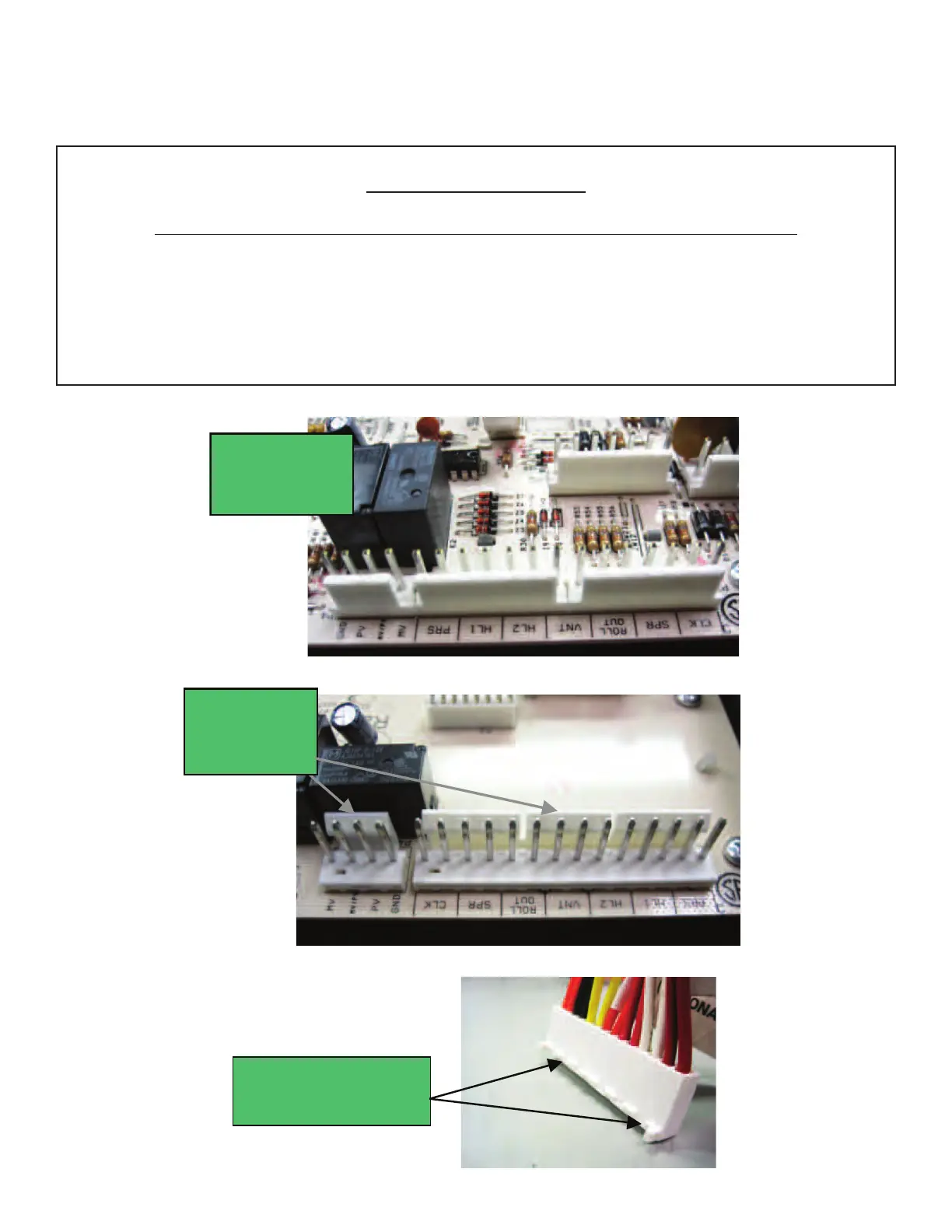

INSTALLING THE SAFETY AND GAS VALVE HARNESS ONTO P2 AND P4
Care must be taken when reinstalling the harness connections to P2 and P4.
The mating connections on the Advanced Flame Technology (AFT) board are rotated 180 degrees
compared to the connections on the previous Digital board. See Fig. 22 and Fig. 23.
Be sure the locking edge of the harness connector (Fig. 24) is oriented towards the board connector
locking tabs when installing all Control PCB wire connectors.
P2
P4
Digital Board
locking tabs
face out.
P2
P4
AFT Board
locking tabs
face in.
Harness Connector
Locking Edge
Fig. 22
Fig. 23
Fig. 24
