PROPANE HEATERS ONLY:
PREPARE NEW REPLACEMENT CONTROL PCB FOR INSTALLATION

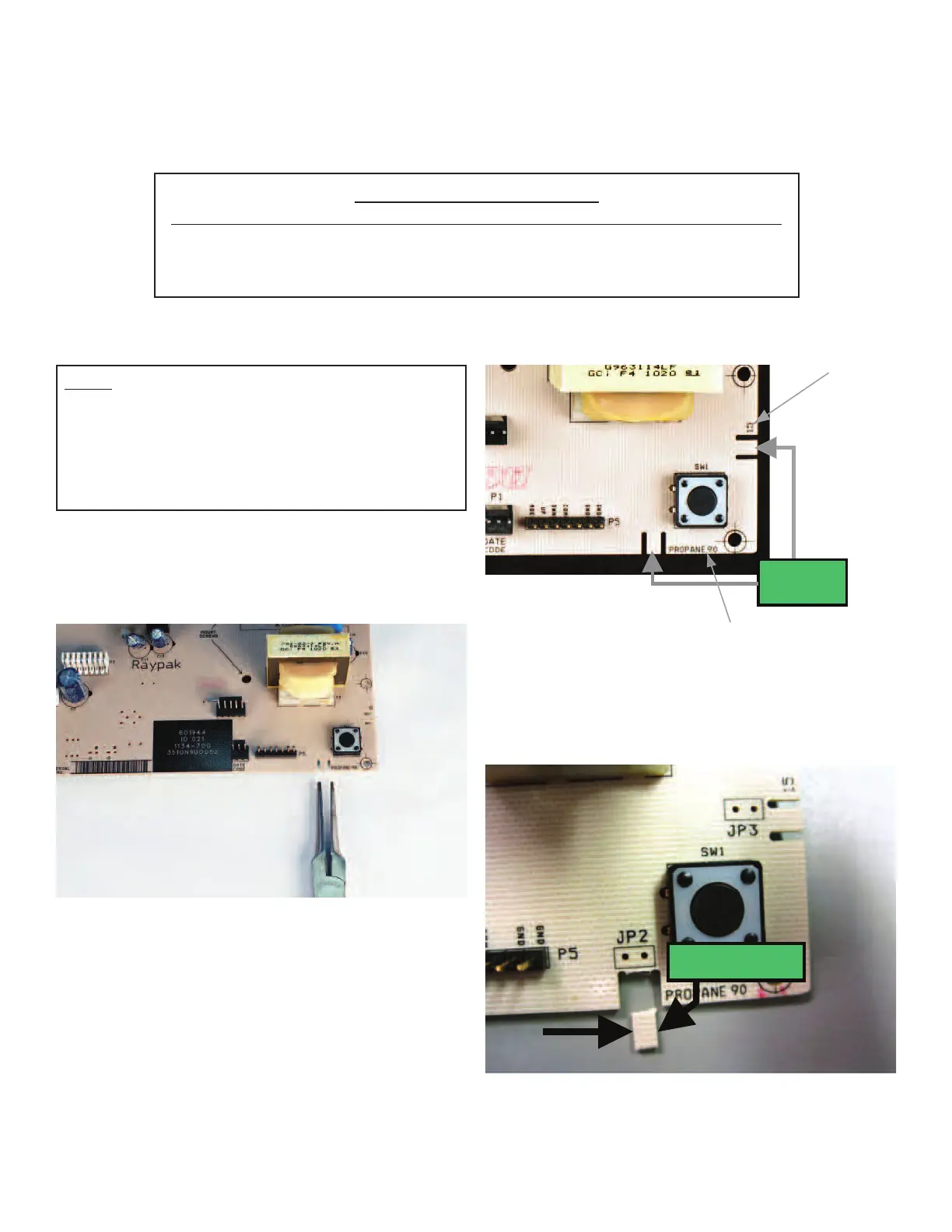

1. Locate the proper propane tab on the board as shown in Fig. 7.
2. Break off tab with pliers as shown in Fig. 8 & Fig. 9.
Note:
Requirements for Propane safety time vary by
area. Check your local and state code regula-
tions to determine whether your required
Propane safety time is 15 seconds or 90 sec-
onds.
PROPANE
TABS
15-Second
Safety Time
90-Second
Safety Time
BROKEN TAB
Fig. 7
Fig. 8
90-second
safety time
shown
Fig. 9
90-second
safety time
shown
