Raypak 013464F - GASKET INSTALLATION - ALL MODELS

P/N 241417Rev 4
Effective: 12-04-12
Replaces: 10-07-11
Page 7

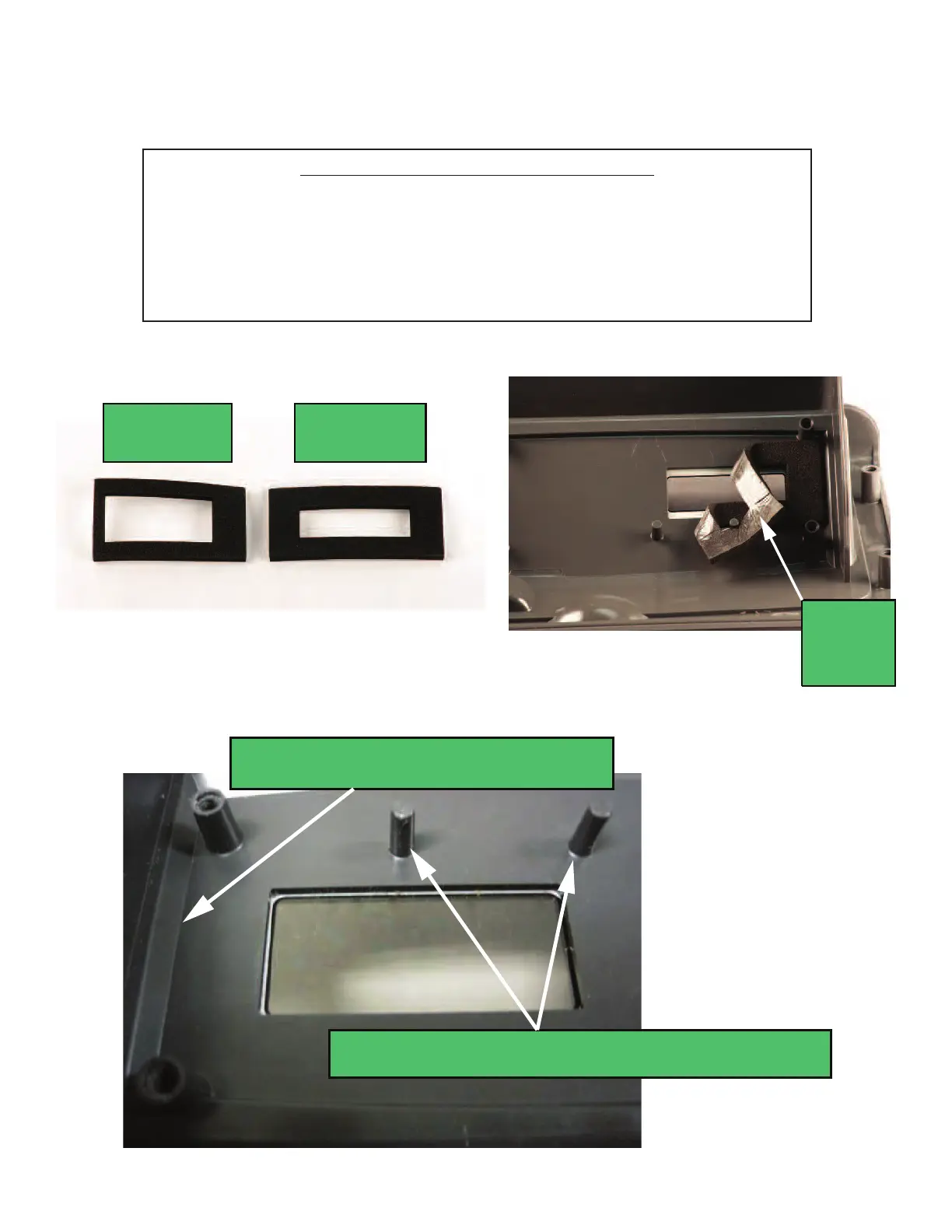

GASKET INSTALLATION - ALL MODELS
1. If the existing bezel gasket is shorter than the new gasket included with this
kit (see Fig. 15), remove the gasket completely from the bezel (Fig. 16).
2. Before removing the backing on the new gasket, verify the installation place-
ment as per Fig. 17. The gasket is flexible and MUST be installed with all
edges straight. Verify the fit before peeling the adhesive backing.
Old Gasket
(Shorter)
NEW Gasket
(Longer)
Remove
shorter
gasket.
Line gasket up along this edge.
Touch gasket against these two stand-offs.
Fig. 15
Fig. 16
Fig. 17
