VENTING CONNECTIONS (Indoor Models)
The drafthood is shipped separately and must be installed on the heater.
For Model 260/261:

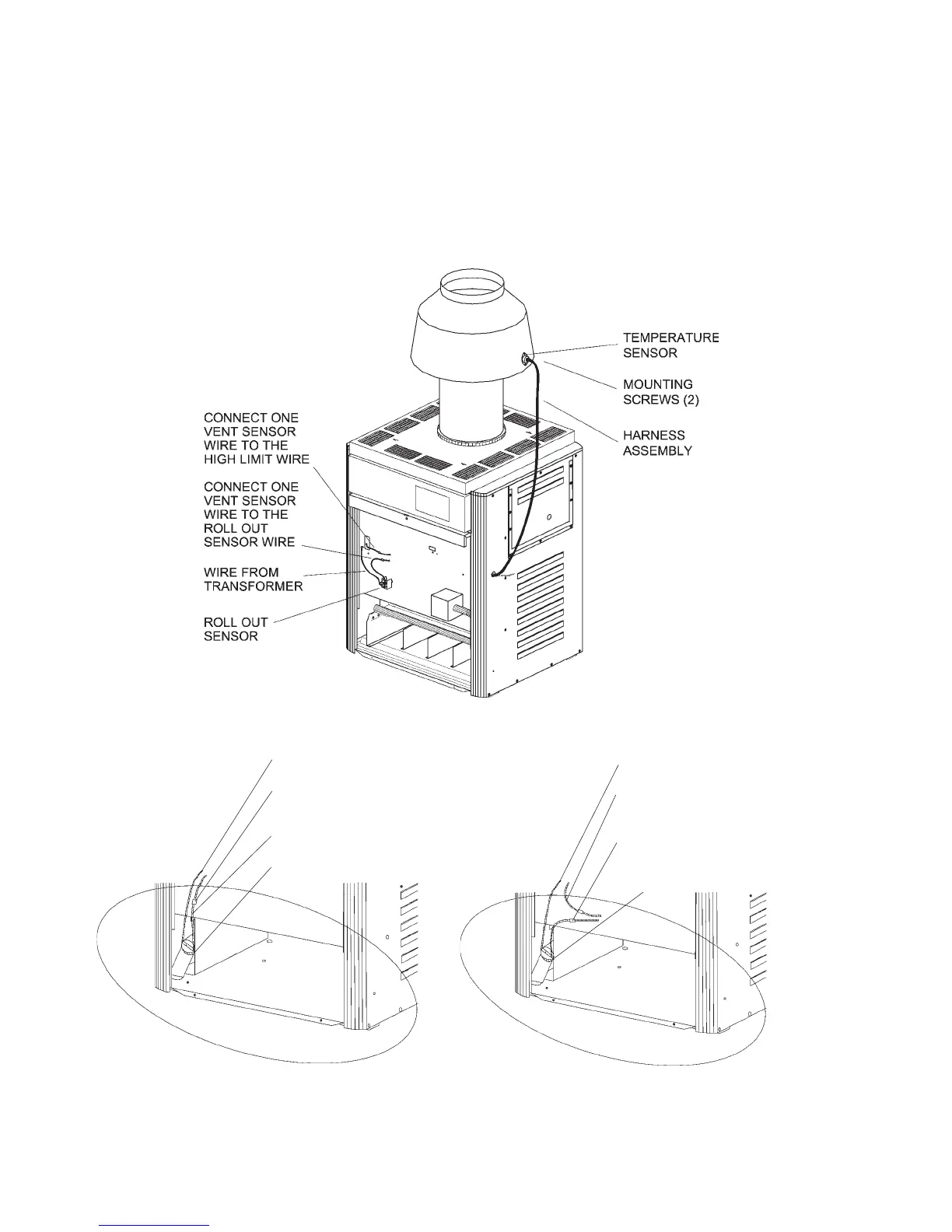

1. Mount drafthood on top of heater and attach with the 4 sheet metal screws provided. Drafthood should be
positioned with the vent sensor located on the front left side as shown.
2. Remove plastic plug from left side of heater jacket and install plastic grommet provided.
3. Route flue sensor wire harness through the grommet installed in Step 2.
Fig. #9351
4. Remove door and locate wire from roll out sensor to Hi Limit with the male/female connector.
Before Installation of Draft Hood After Installation of Draft Hood
Fig. #8947.3
5. Disconnect male/female connector and attach to the 2 wires from drafthood vent sensor harness.
8
WIRE FROM TRANSFORMER
MALE/FEMALE
WIRE TERMINAL
WIRE FROM HIGH LIMIT
ROLL OUT SENSOR
WIRE FROM TRANSFORMER
CONNECT ONE VENT SENSOR WIRE
TO HIGH LIMIT WIRE
CONNECT ONE VENT SENSOR WIRE
TO ROLL OUT SENSOR WIRE
ROLL OUT SENSOR
Fig. #8947.2
