DIRECT VENT
Vertical Venting (Category I)

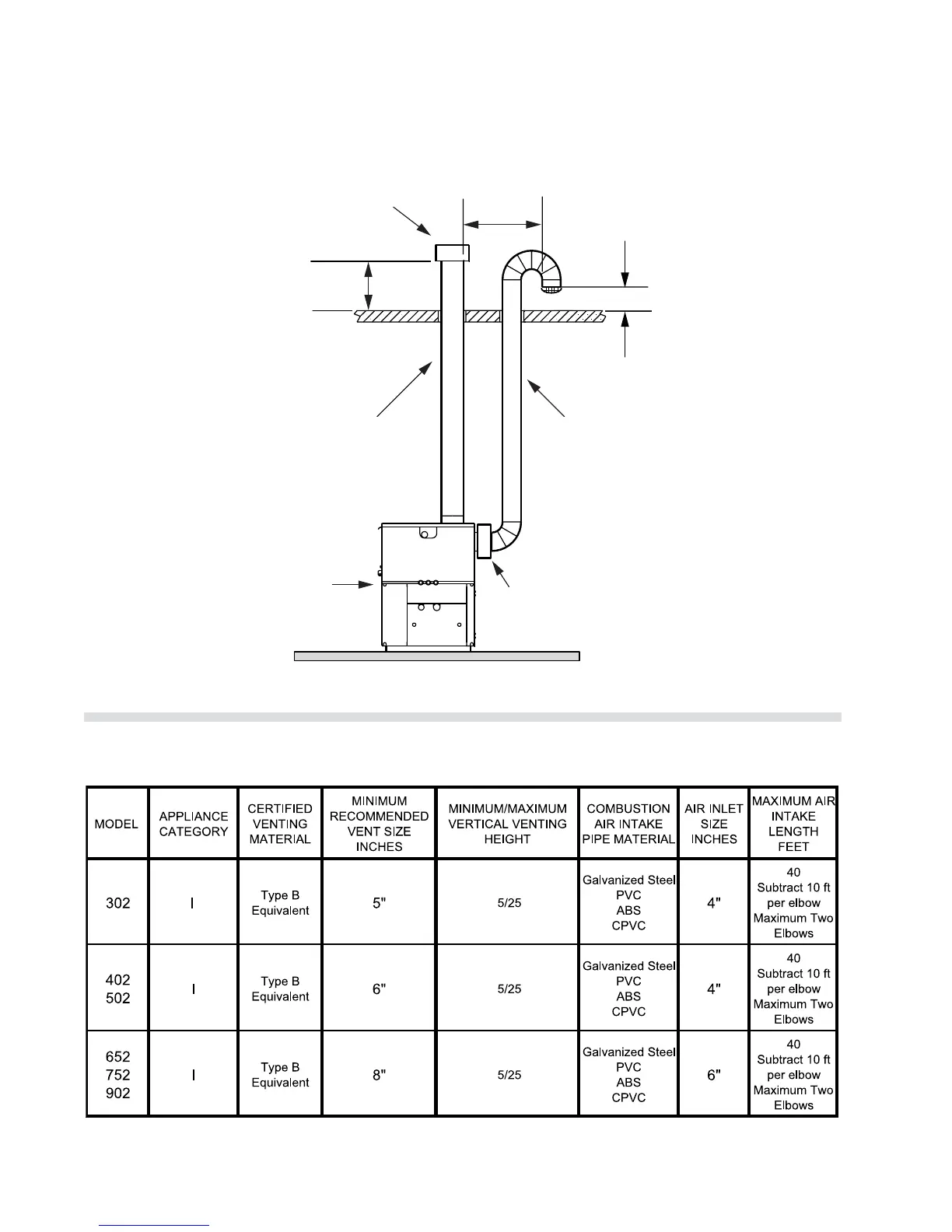

Fig. #9231.1
VERTICAL VENTING TABLE
36
SECTION J-4
AIR FILTER
INTAKE VENT
BOILER
UNIT
EXHAUST
VENT
3' MIN.
VENT
CAP
3'
MIN.
1' MIN.
