Raypak 408 - Florida and Texas Building Code Compliance

13
TOH
Model B
268 23" (583 mm)
408 29" (735 mm)
FLORIDA AND TEXAS BUILDING CODES
WIND SPEED = 150 MPH, 3 SECOND GUST
EXPOSURE = C
268/408 ATMOSPHERIC
B
28"
(709 mm)
40"
(1 m)
3" (76 mm)
Min. Conc.
Pad by others
3" (76 mm)
Min. Conc.
Pad by others
(1)–1/4" x 1-3/4" S.S. T
apcon Bolt & Washer (Field Supplied)
Ea. Pallet Anchor Bracket
Use hole closest to unit (4 total)
(1)–1/4" x 1-3/4" S.S.
Tapcon Bolt & Washer (Field Supplied)
Ea. Pallet Anchor Bracket
Use hole closest to unit (4 total)
2" x 6" x 1/8" Pallet
Anchor Bracket (4 Total) (Kit# 011636)
1/4" x 1-3/4" S.S.
Tapcon Bolt and Washer (Field Supplied)
NOTE: Use hole closest to unit with
washer overlapping edge of unit.
Min. Edge
Distance
6"
(152 mm)
Min. Edge
Distance
6"
(152 mm)

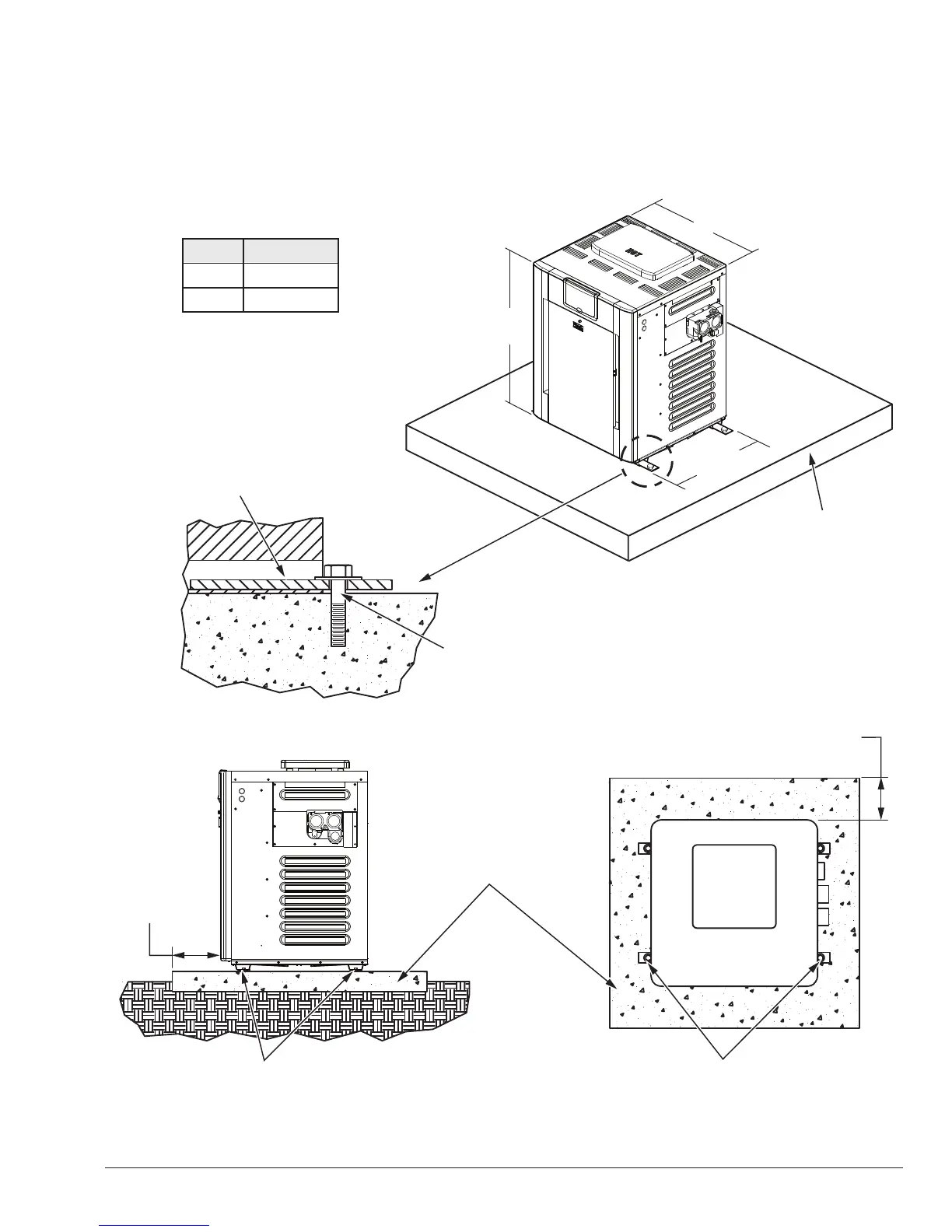

Figure 9. Florida And Texas Building Codes
