10
TOH
B
28"
(709 mm)
31-13/16"
(792 mm)
3" (76 mm)
Min. Conc.
Pad by others
3" (76 mm)
Min. Conc.
Pad by others
(1)–1/4" x 1-3/4" S.S. Tapcon
Bolt & Washer (Field-Supplied)
Ea. Pallet Anchor Bracket
Use hole closest to unit (4 total)
(1)–1/4" x 1-3/4" S.S.
Tapcon Bolt & Washer (Field-Supplied)
Ea. Pallet Anchor Bracket
Use hole closest to unit (4 total)
2" x 6" x 1/8" Pallet
Anchor Bracket (4 Total) (Kit# 011636)
1/4" x 1-3/4" S.S.
Tapcon Bolt and Washer (Field-Supplied)
NOTE: Use hole closest to unit with
washer overlapping edge of unit.
Min. Edge
Distance
6"
(152 mm)
Min. Edge
Distance
6"
(152 mm)
F10649
Model
B
in. (mm)
207A 20 (508)
266L/267A 23 (584)
337A 26 (660)
399L/407A 29 (737)
Florida and Texas Building Code:
Wind Speed = 150 mph 3 sec gust
Exposure = C

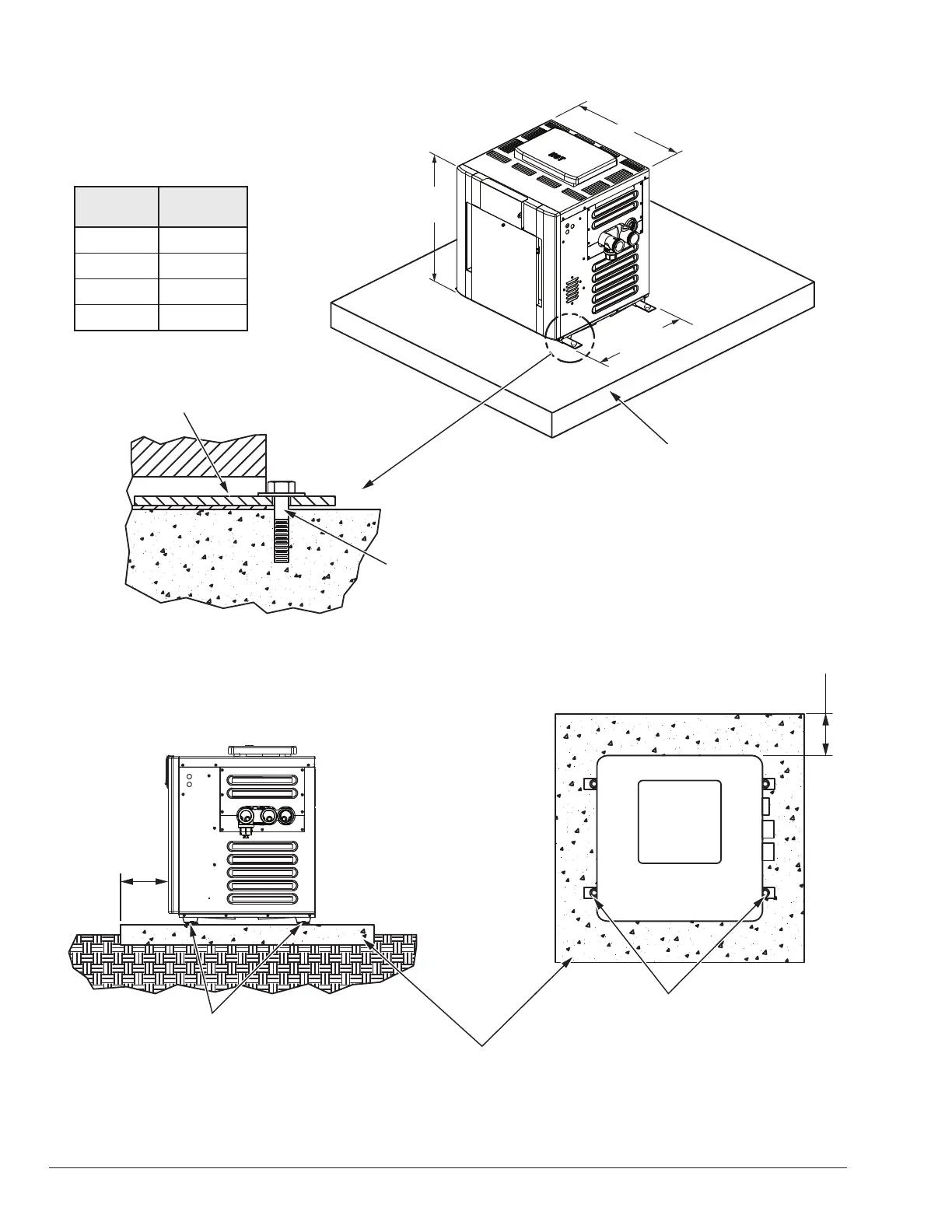

Figure 7. Hurricane Tie-Down Bracket Installation
