MODE 3
(With Default Settings Shown)
VIEW MENU

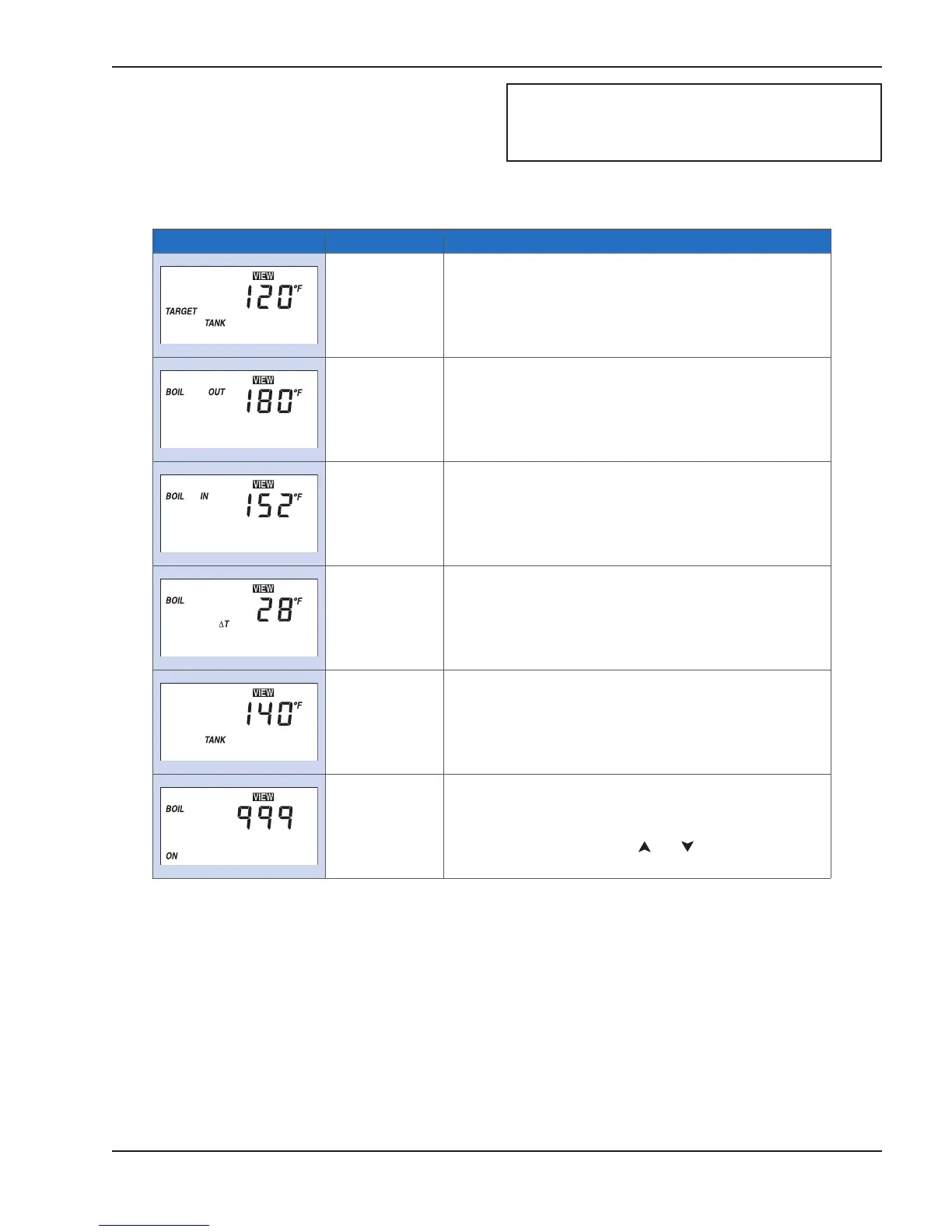

The View menu items display current operating tem-
peratures and system status information. Use the
Item button (see Fig. 5) to view items in this menu.
Item Field Range Description
--- ,
35 to 266°F
(2 to 130°C),
OFF
TANK TARGET
The temperature that the control is trying to maintain
in the tank.
-20 to 266°F
(-29 to 130°C)
BOILER OUTLET
Current boiler outlet water temperature as measured
by the boiler outlet sensor.
-20 to 266°F
(-29 to 130°C)
BOILER INLET
Current boiler inlet water temperature as measured by
the boiler inlet sensor.
Note: This item is only available when a boiler inlet
sensor is installed.
0 to 252°F
(0 to 140°C)
BOILER DELTA T
Current temperature dierence between the boiler outlet
sensor and the boiler inlet sensor.
Note: This item is only available when a boiler inlet
sensor is installed.
-20 to 266°F
(-29 to 130°C)
TANK
Current domestic hot water tank temperature as measured
by the DHW tank sensor.
0 to 999
BOILER ON HOURS
The total number of running hours of the boiler since
this item was last cleared. Clear the numbers of hours
by pressing and holding the and buttons together
while viewing this item.
Table I: View Menu, Mode 3
