BT240 Product Manual
V1.0 RayTools AG. Copy Right 5 | 15
www.raytools.net
2 Installation-Mechanicals
2.1 Installation Of The Hole Site

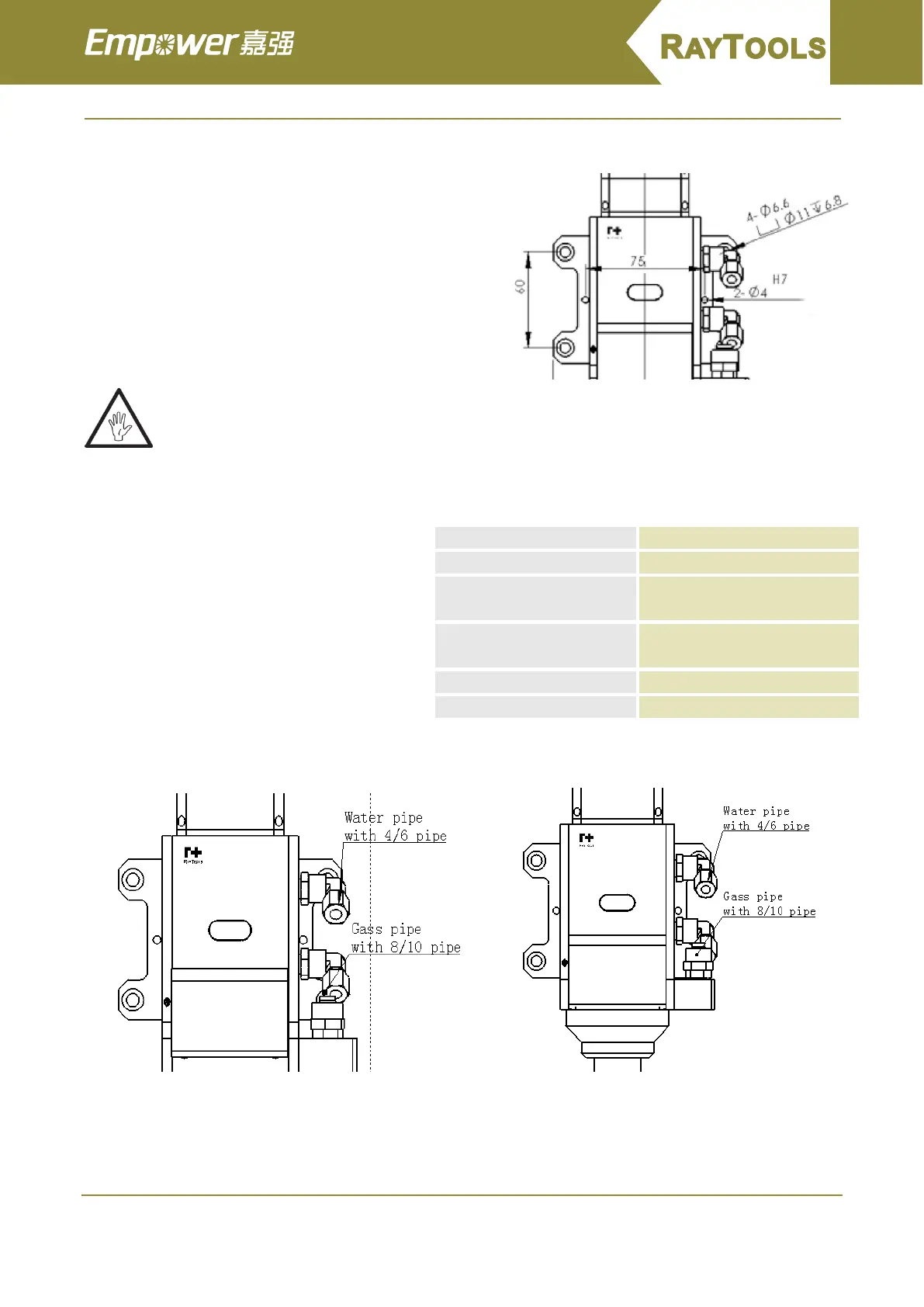

BT240 laser heads are fixed on the machine tool by a
mount plate attached to FM module. See Figure 2 for hole
sizes and locations. Clients are recommend to install the
laser heads vertically to the processing plate according to
the drawings and make sure the laser heads are fixed tightly,
without waggling in process. It is one of the preconditions of
steady subsequent cuttings.
Attention：Z-axis motor plate using to fix the
laser head plate should be conducted to the machine tool and the ground.
2.2 Plumbing
2.2.1 Water cooling
BT240 processing heads are equipped with
a water-cooling circuit, the direction of water
moving in and out can be changed at will. It is
recommended that power levels greater than 500
watts use water cooling. See Figure 3 for hose
locations and numbers and the table on the right
for recommended flow rates.
The cooling circuit is designed to be
operated on either a closed-looped cooling
system or facility tap water--as long as the requirements in the table above are met.
1.8 liters/minute（0.48gpm）
≥room temperature /＞dew
point
Hardness （ Equivalent to
CaCO3）
Figure 3-2 Hose Location Of The 2D
laser heads
Figure 3-1 Hose Location Of The 2D
laser head
To Next Page
