Razor DUNE BUGGY

5
1
1
6
7
8
9
10
11
131415
2423
25
22
18
20
21
22
16
19
12
4 3 2
17
8
Keep your Dune Buggy running for years with genuine Razor parts. Visit our web site or e-mail us for more information on spare part availability.
(Specifications subject to change without notice.)

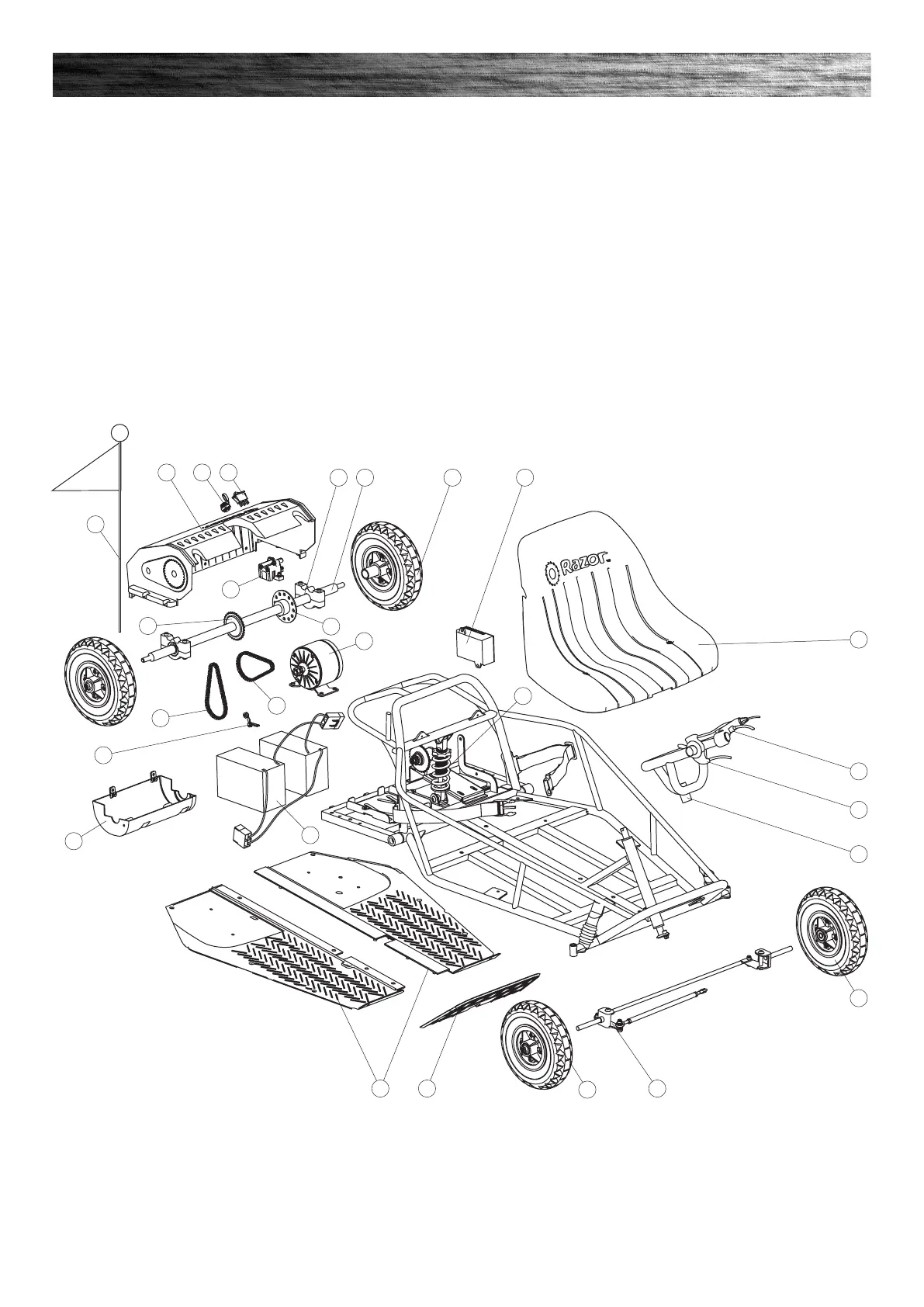

1. Front Wheels
2. Steering Assembly
3. Footrest
4. Platform (Left/Right)
5. Steering Wheel
6. Thumb Tab Throttle
7. Brake Lever with Cable
8. Shock Absorber
9. Seat
10. Control Module
11. Motor (24V/250W)
12. Battery (2-12V/7Ah) With 30 Amp Fuse
13. Rear Wheels
14. Rear Axle
15. Upper/ Lower Clamp (Rear Axle)
16. Disc Brake
17. Brake Caliper
18. Rear Axle Sprocket
19. Chain (Motor)
20. Chain (Rear Axle)
21. Chain Tensioner
22. Battery Cover (Upper/Lower)
23. Charger Port
24. On/ Off Switch
25. Flag
DUNE BUGGY PARTS
