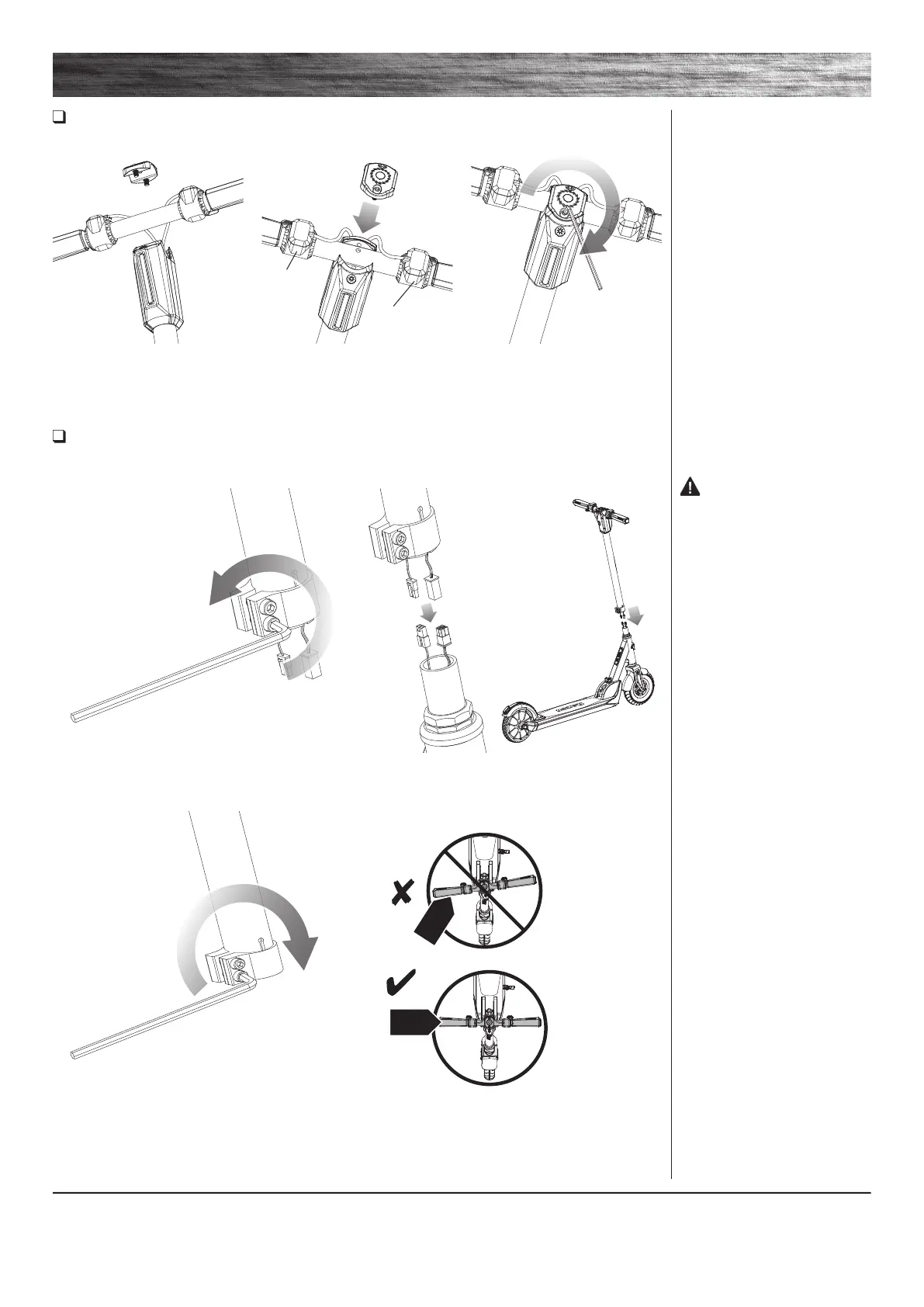

ASSEMBLY AND SET-UP
Collar Clamp Assembly
Tool Required: 5 mm Allen Wrench
Attaching the Handlebars
Tool Required: 5 mm Allen Wrench
1 Using the 5 mm Allen wrench loosen the bolts on the
collar clamp.
3 Align the front wheel with the handlebars and
using the 5 mm Allen wrench tighten the bolts on the
collar clamp.
2 Plug in both connectors. Slide the stem onto the front
fork. Be careful not to pinch wires.
WARNING: Failure to
properly tighten the collar clamp
may allow the handlebars to
dislodge while riding and may
cause you to lose control and fall.
When correctly tightened, the
handlebars will not rotate out of
alignment with the front wheel
under normal circumstances.
1 Remove t-bar assembly from box
and remove the handlebar clamp
from parts bag.
2 Insert the handlebar with controls
(brake and throttle) facing the rider.
3 Using the 5 mm Allen wrench
tighten the handlebar clamp.
Throttle (Black Lever)
Brake (Red Lever)
To Next Page
