Hub Motor/Battery Replacement
Tool Required: Phillips Screwdriver
A x 4
B x 2
A
A
A
A
B
B
REPAIR AND MAINTENANCE

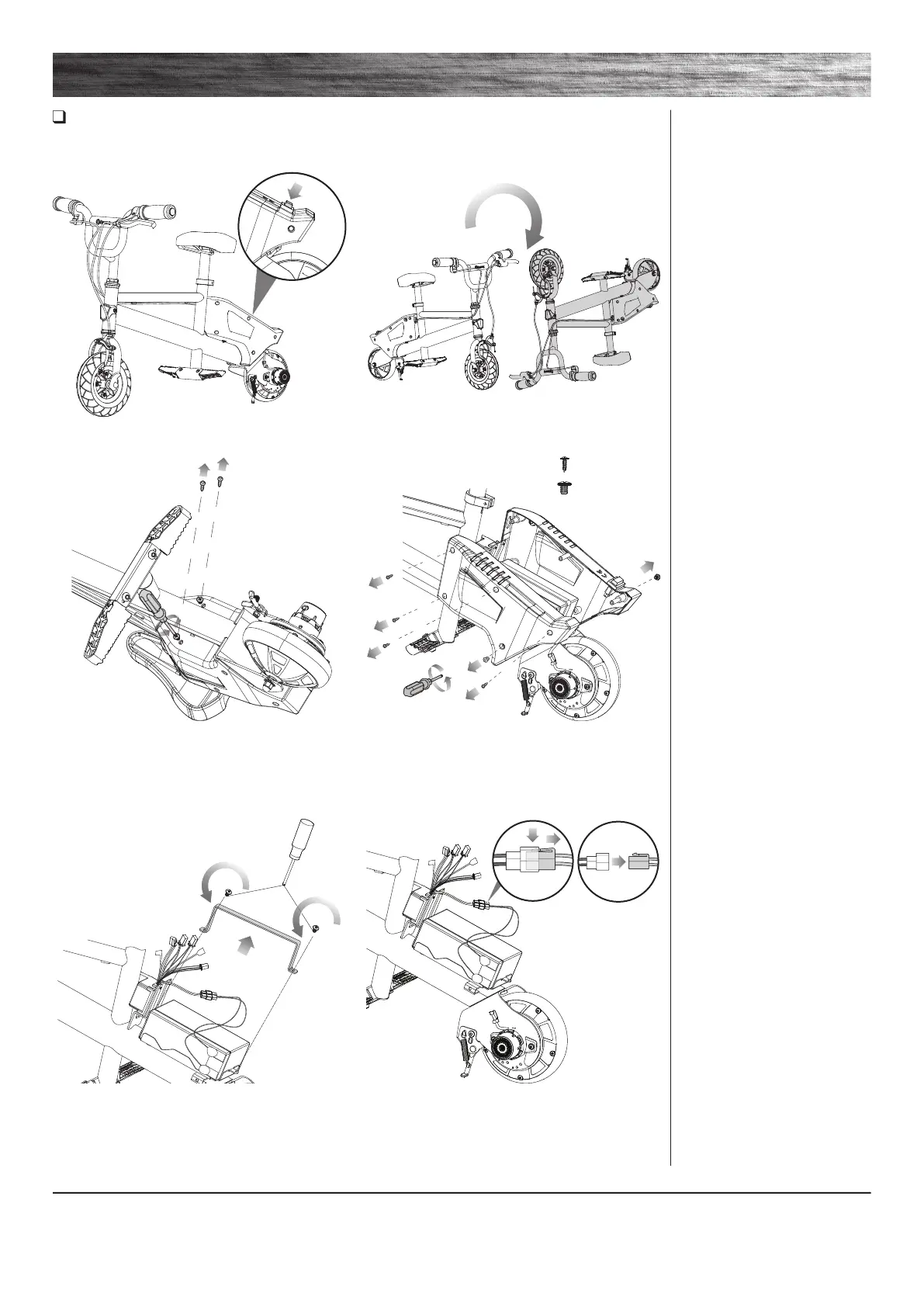

1 Power switch in OFF position.
3 Using a Phillips screwdriver remove the two (2) large
screws underneath the battery cover.
2 Rotate onto handlebars.
4 Using a Phillips screwdriver remove the six (6) screws
and remove the battery cover.
Note: There are two (2) sizes of screws, A-Small,
B-Large
5 Using a Phillips screwdriver remove the two (2)
screws and remove the battery bracket.
6 Disconnect the battery connector from the control
module and carefully remove the battery.
Note: If only replacing battery, install new battery and
reverse steps 3-6.
Need Help? Visit our website for product support, a list of authorized service centers in the US and customer service contact information at www.razor.com.
Please have the product I.D. code (located on the white label of your product) available for better assistance. Additional Customer Service contact information is
listed at the back of this manual.
