REPAIR AND MAINTENANCE

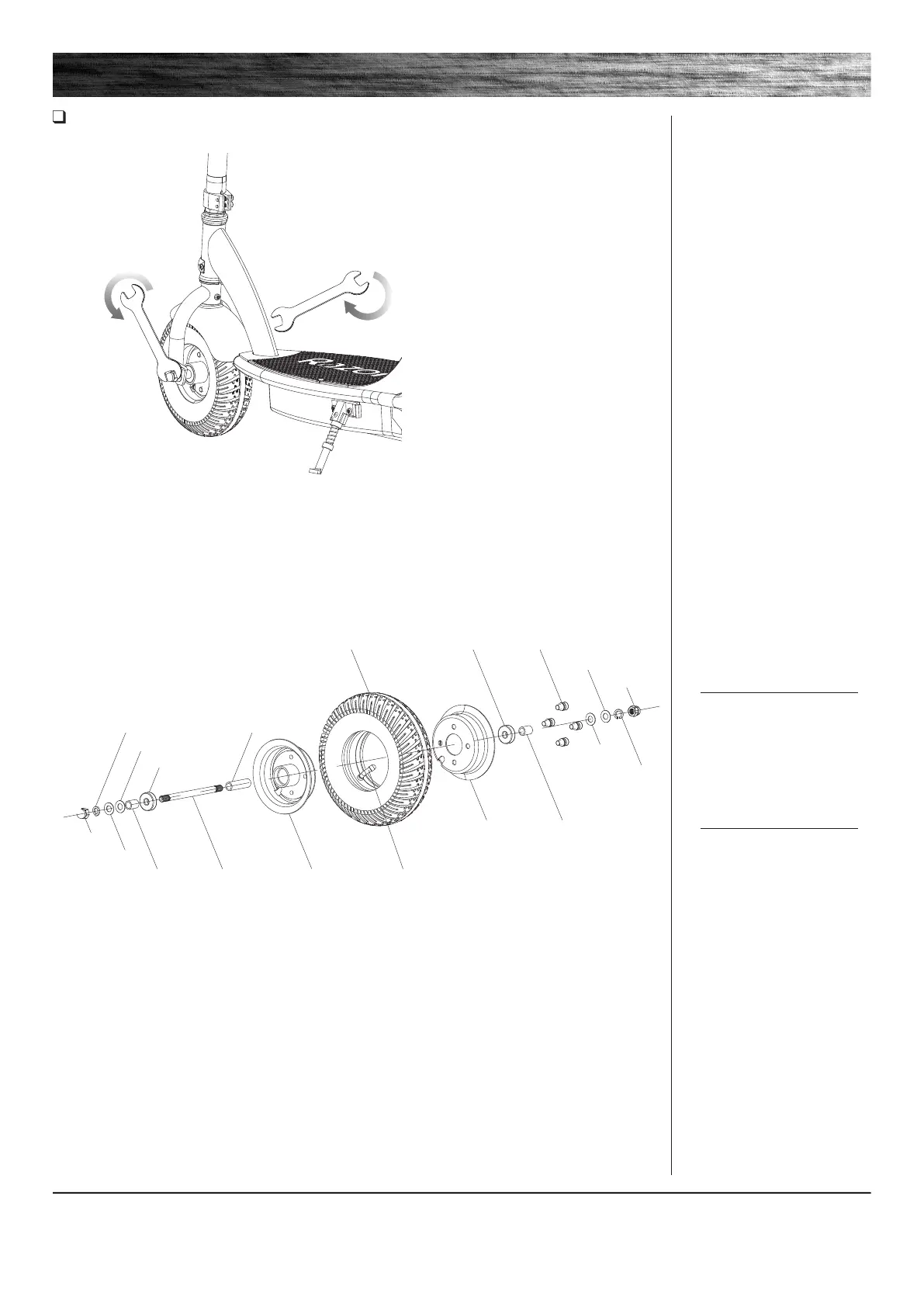

1 Using two (2) 16 mm wrenches, loosen the axle bolt. Remove wheel and
install replacement wheel. (Note the sequence of the hardware)
Front Tire Replacement
Tools Required: Two (2) 16 mm Wrenches
Right Side (Throttle)
8-1 Nut
8-2 Lock Washer
8-3 Washer
Fork
8-4 Washer
8-5 Hex Screws (x4)
8-6 Spacer
Middle
8-7 Hex Screws (x4)
8-8 Wheel Hub
8-9 Tire
8-10 Valve
8-11 A xle
8-12 Large Spacer
Left Side (Brake)
8-1 Nut
8-2 Lock Washer
8-3 Washer
Fork
8-4 Washer
8-5 Hex Screws (x4)
8-6 Spacer
Note: Front wheel hardware
sequence
8-2
8-1
8-3
8-5
8-11 8-8
8-10
8-8 8-5
8-4
8-2
8-12
8-9 8-6 8-7
8-3
8-1
8-4
8-6
Need Help? Visit our website for replacement parts, product support, a list of authorized service centers in the US and customer service contact information
at www.razor.com. Please have the product I.D. code (located on the white label of your product) available for better assistance. Additional Customer
Service contact information is listed at the back of this manual.
