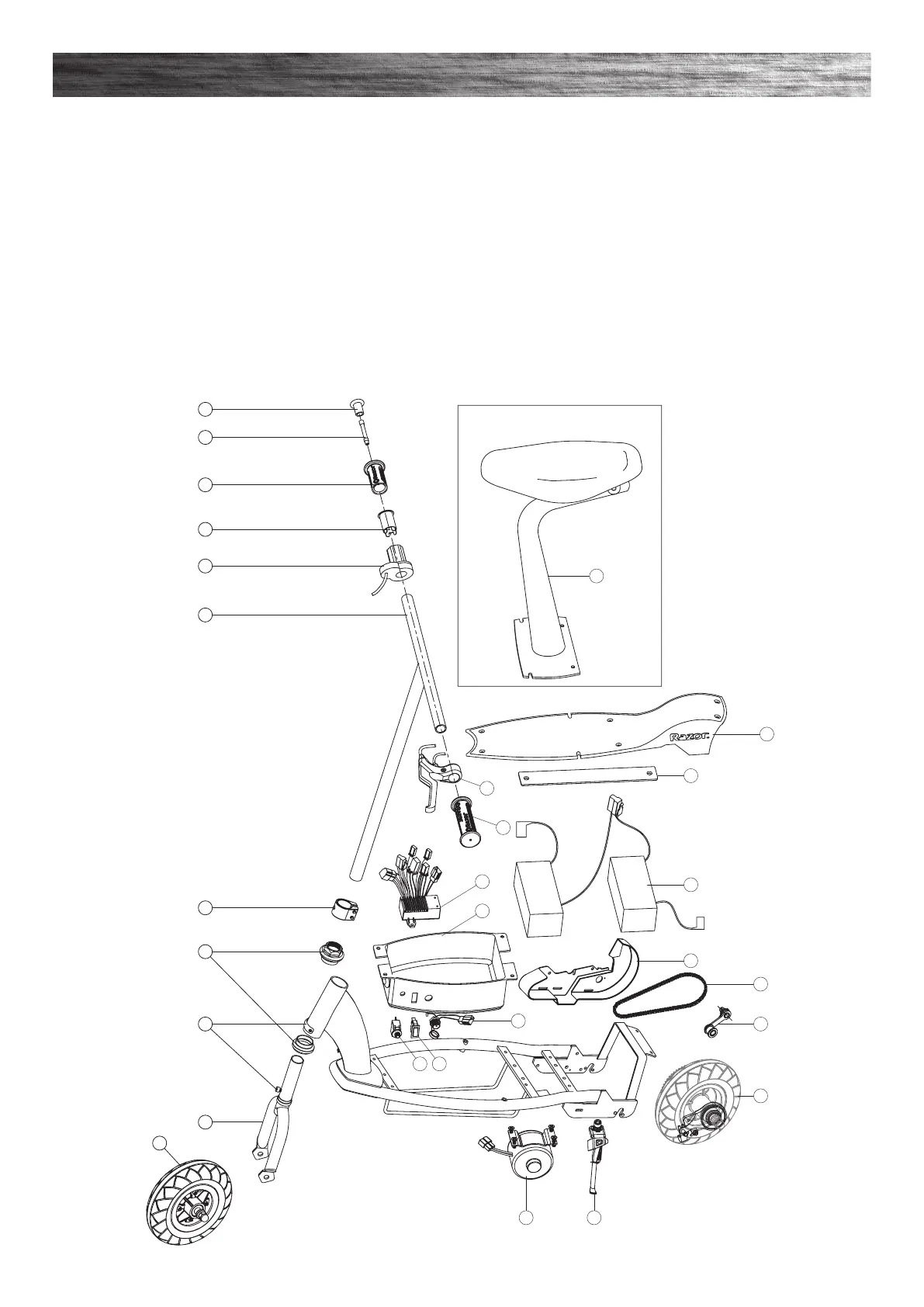

E200/E200S ELECTRIC SCOOTER PARTS
Keep your scooter running for years with genuine Razor parts. Visit our website or e-mail us for more information on spare part availability.
(Specifications subject to change without notice.)
1. Handlebar Grip (right/left
1-1 Handlebar End Cap
1-2 Valve Extender
2. Single Speed Twist Grip Throttle
2-1 Sleeve
3. Handlebar Stem
4. Brake Lever Assembly
5. Collar Clamp
6. Headset (upper/lower)
7. Limiter and Cover
8. Front Fork
9. Front Wheel Complete
(See page 8 for hardware sequence)
10. Control Module
11. Battery Tray
12. Reset Button
13. On/ Off Switch
14. Charger Port
15. Motor (24V / 200W)
16. Kickstand
17. Rear Wheel Complete
(See page 7 for hardware sequence)
18. Chain Tensioner
19. Chain
20. Chain Guard
21. Battery (2x 12V/ 7Ah)
22. Battery Bracket
23. Deck Plate with Grip Tape
24. Seat Post with Seat (E200S only)
