REPAIR AND MAINTENANCE
10
9 Install the cable guide bracket to the frame and brake
plate using bolt, washers, and nut. Do not tighten.
11 Tighten the cable guide bracket bolt. Tighten the
locknuts on the rear axle. Test the brake to verify proper
function before riding. Readjust as needed.
10 Thread the brake cable through the brake adjuster
barrel, through the large spring, and into the small hole
in the side of the anchor bolt. Position the cable to the
original location (as indicated by the slight cable kink)
and tighten securely.
12 To install the replacement battery / hub motor,
reverse steps 1 through 5. A: Small screw size, B: Allen
screw, C: Large screw size
Nut
Cable Guide
Bracket
Spacer
Frame
Bolt
Washer
Brake Plate
Right Side (Throttle)
Frame
1-3 Safety Washer
1-2 Spring Washer
1-1 Locknut
Frame
1-3 Safety Washer
1-2 Spring Washer
1-1 Locknut
Left Side (Brake)
1-6 Spacer (Long)
1-5 Brake Plate
1-4 Spacer (Short)
1-1
1-2
1-3
1-4
1-5
1-6
1-1
1-2
1-3

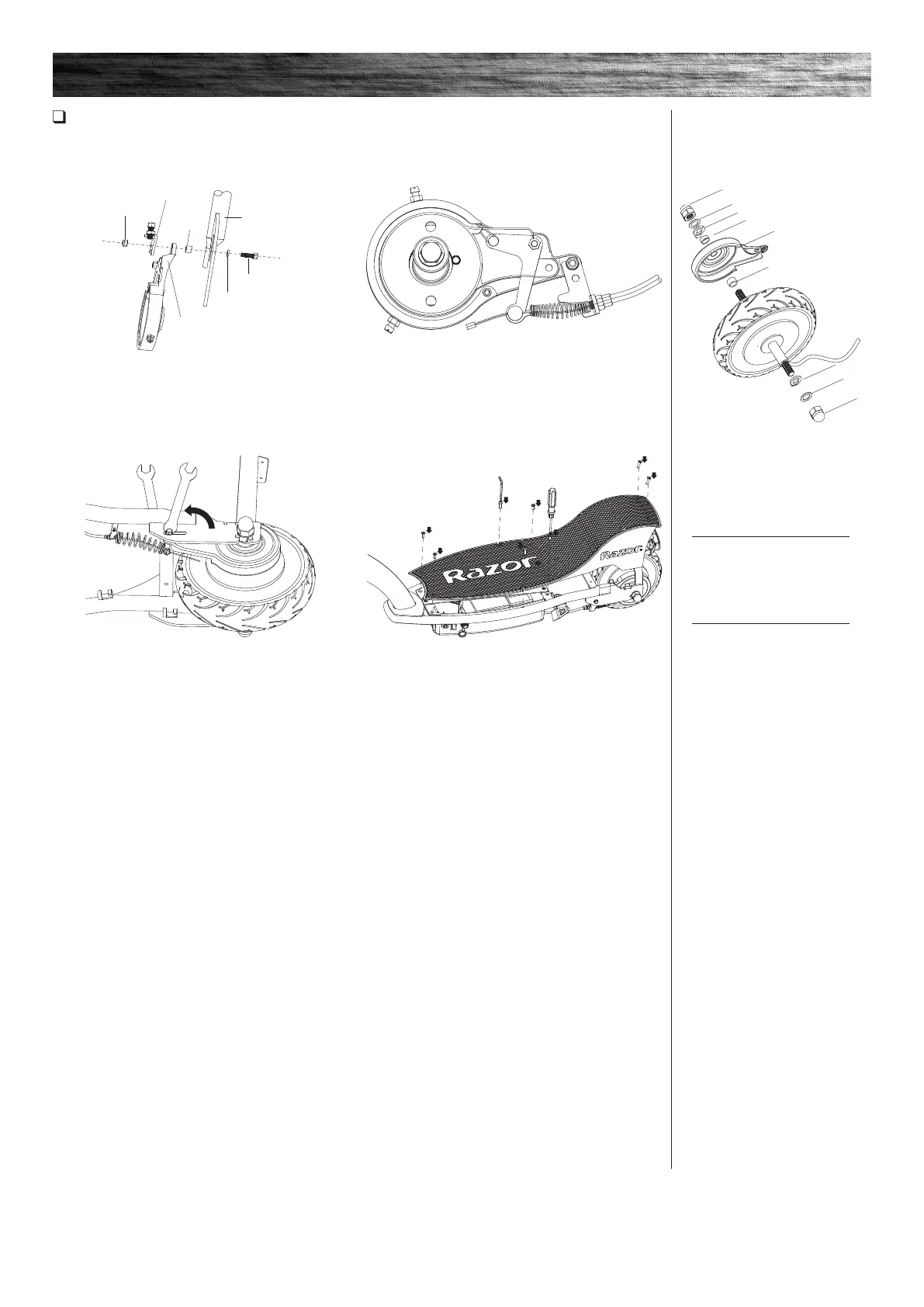

Rear Wheel/Hub Motor/Battery Replacement Continued
Tools Required: Phillips Screwdriver, 4 mm Allen Wrench, Two (2) 19 mm Wrenches, Two (2) 10 mm Wrenches,
Two (2) 8 mm Wrenches (not included)
