Razor GGC1643M User Manual

Outdoor LP Gas Griddle
Model No. GGC1643M
4
Tools Required for Assembly (Included)
#2 Phillips Head Screwdriver 1 pc
M10 Wrench 2 pcs
Hardware
A
Screw
M6x16 Nickel Plated Phillips Truss Head
8 pcs
B
Nut
M10 Nickel Plated
2 pcs
Parts List
1
Griddle Surface*
G1643-010
2
Left Side Shelf*
G1643-020
3
Towel Bar (2)*
G1643-030
4
U Burner*
G1643-040
5
Burner (3)*
G1643-050
6
Griddle Body Assembly*
G1643-060
7
Right Side Shelf*
G1643-070
8
Main Control Knob
Bezel (3)*
G1143-090
9
Sear Control Knob
Bezel*
G1143-091
10
Brand Plate*
B0109-BR0
11
Locking Wheel (2)*
G1643-080
12
Left Cart Frame*
G1643-090
13
Right Cart Frame*
G1643-100
14
Side Handle (2)
G1643-110
15
Control Knob (4)
G0850-G23
16
Grease Cup
G1643-120
17
Regulator/Hose
Assembly*
B0308-A18
18
Lighting Hook*
B0223-D04
19
Upper LP Gas Tank
Support*
†
G1643-130
20
Leg Locking Assembly*
G1643-140
21
Lower LP Gas Tank
Support*
†
G1643-150
22
Wheel (2)
G1643-160
23
Bottom Shelf
G1643-170
24
Side Shelf Lock A (2)*
†
B0107-E05
25
Side Shelf Lock B (2)*
†
B0107-I09
26
Bottom Shelf Screw (2)
G1643-180
27
Axle
G1643-190
28
LP Gas Tank Heat
Shield*
G1643-200
* Pre-assembled
†
Not replaceable

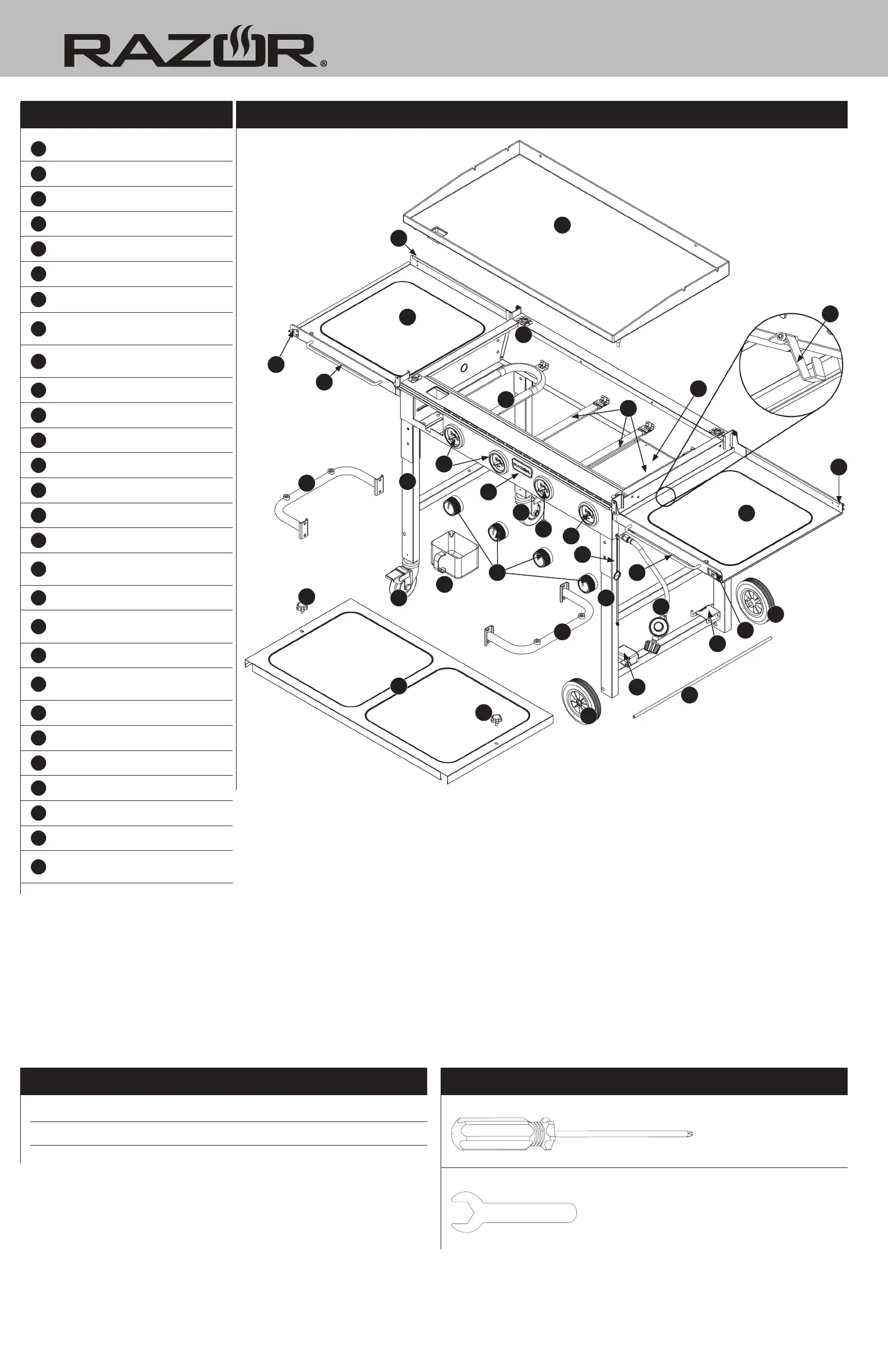

Expanded View
1
22
22
3
3
6
11
11
4
7
12
23
26
26
24
24
25
27
25
8
8
9
2
20
19
18
21
13
10
5
14
14
15
17
16
28
