Razor GGC2228MC User Manual

Need help? Call 1.800.694.0013
Do not return to place of purchase.
Replacement Parts
1.800.694.0013
3
Parts List
1
Cart Table
G2228-100
2
Left Side Shelf
G2228-110
3
Side Cart Handle
G2228-120
4
Drawer
G2228-130
5
Upper Back Panel
G2228-140
6
Left Table (2)
G2228-150
7
Back Panel
G2228-160
8
Right Table
G2228-170
9
Left Cart Frame
G2228-180
10
Center Panel
G2228-190
11
LP Gas Tank Retainer
Wire
G1461-010
12
Axle
G2228-200
13
Wheel (2)
B0340-010
14
Wheel Cap (2)
B0340-020
15
Right Cart Frame
G2228-210
16
Door
G2228-220
17
Foot (2)
C1681-000
18
Bottom Panel
G2228-230
19
Spacer*(8)
G2228-240
20
Paper Towel Holder
Support
G2228-260
21
Magnet (2)
B0303-010
22
Drawer Support (2)
G2228-270
23
Bottle Opener
G1932-11L
24
Paper Towel Holder
G2228-160
* Pre-assembled

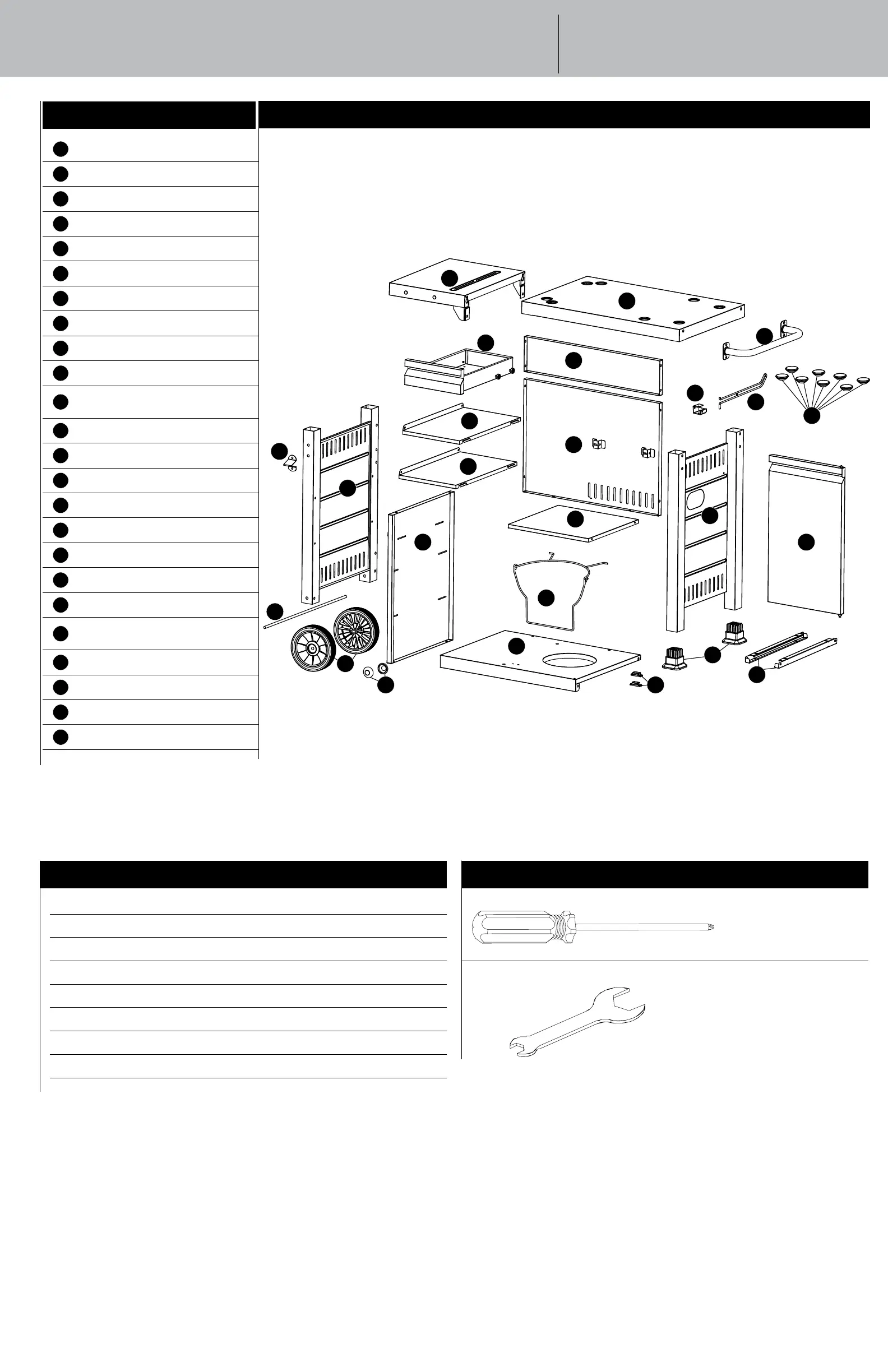

Expanded View
1
22
4
23
24
8
2
20
18
21
5
15
17
16
3
6
11
12
13
14
19
7
10
9
6
Tools Required for Assembly (Included)
#2 Phillips Head Screwdriver 1 pc
M10-M6 Wrench 1 pc
Hardware
A
Screw
M6x15 Nickel Plated Phillips Truss Head
24 pcs
B
Nut
M4x12 Nickel Plated Phillips Truss Head
16 pcs
C
Washer
Φ 6.5x13
Nickel Plated
4 pcs
D
Lock Washer
Φ 6.5
Nickel Plated Phillips Truss Head
4 pcs
E
Screw
M6x15 Nickel Plated Hex Head
4 pcs
F
Nut
M10 Zinc Plated Hex
2 pcs
G
Cotter Pin
Φ 1.4X38
Nickel Plated Phillips T russ Head
2 pcs
H
Screw
M6x15 Axial Truss Head
2 pcs
