14

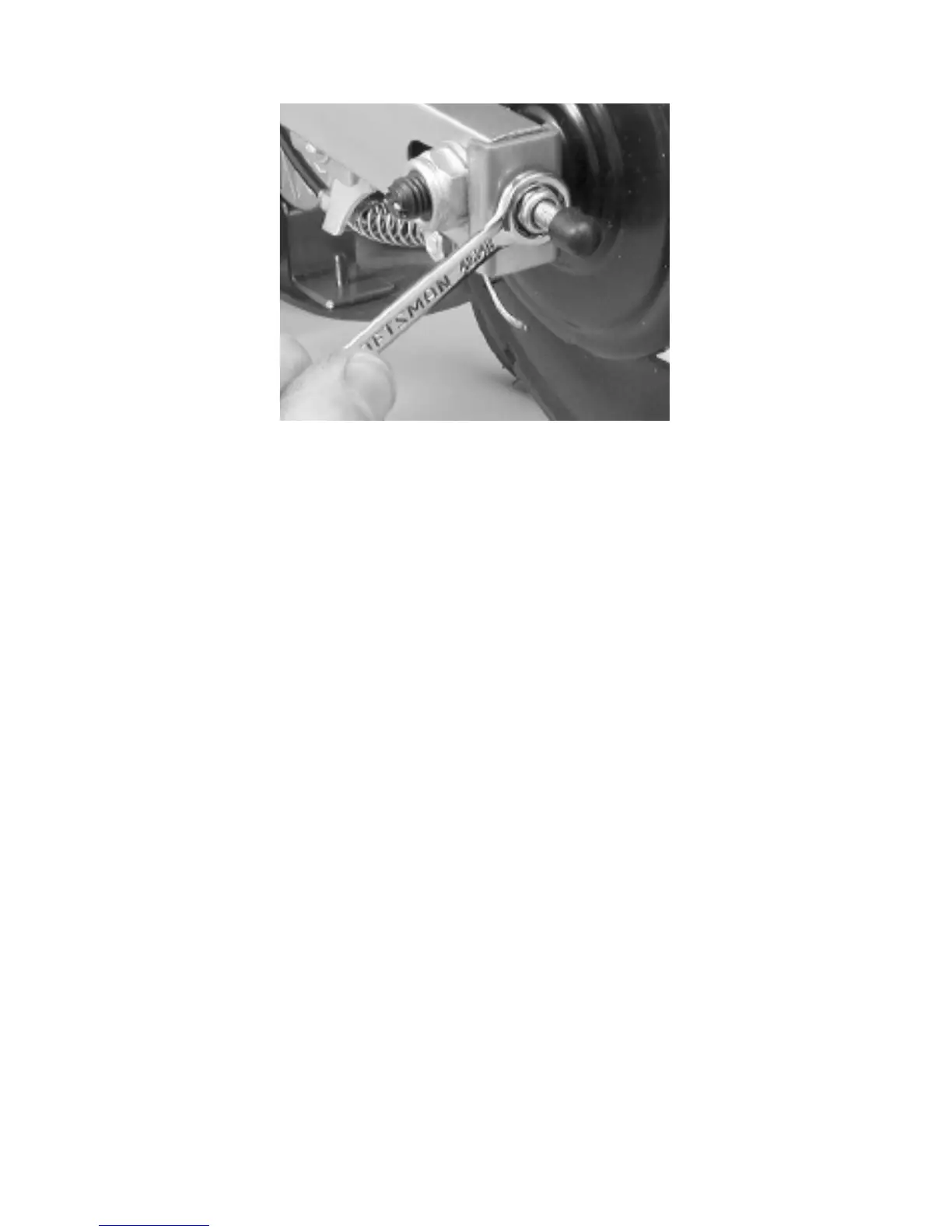

Fig. 14. Loosen axle by turning nuts counter- clockwise.
Tighten as shown by arrows.
Fig. 15. Loosen adjusters.
Occasionally the rear wheel may need to be removed to replace a worn
tire, chain or fix a punctured inner tube. Tools required: (2) 17mm open
end or socket wrenches, (2) 8mm box wrenches, a 10mm box wrench.
1. Loosen and disconnect the brake cable anchor (figure 12).
2. Loosen and disconnect the brake housing anchor (figure 13).
3. Loosen the rear axle by loosening the axle nuts counter-clockwise
(figure 14).
4. Loosen the chain adjusters about 3-4 turns. Be sure to loosen both
adjusters and equal number of turns (figure 15).
5. Slide the wheel forward to slacken the chain and disengage the chain
from the motor sprocket (your hands will get greasy doing this).
6. The wheel may now be removed from the frame. Reverse procedure
to reinstall. Make notes of the part order, or refer to the parts breakdown
on page 16, for the correct component order for reassembly.
