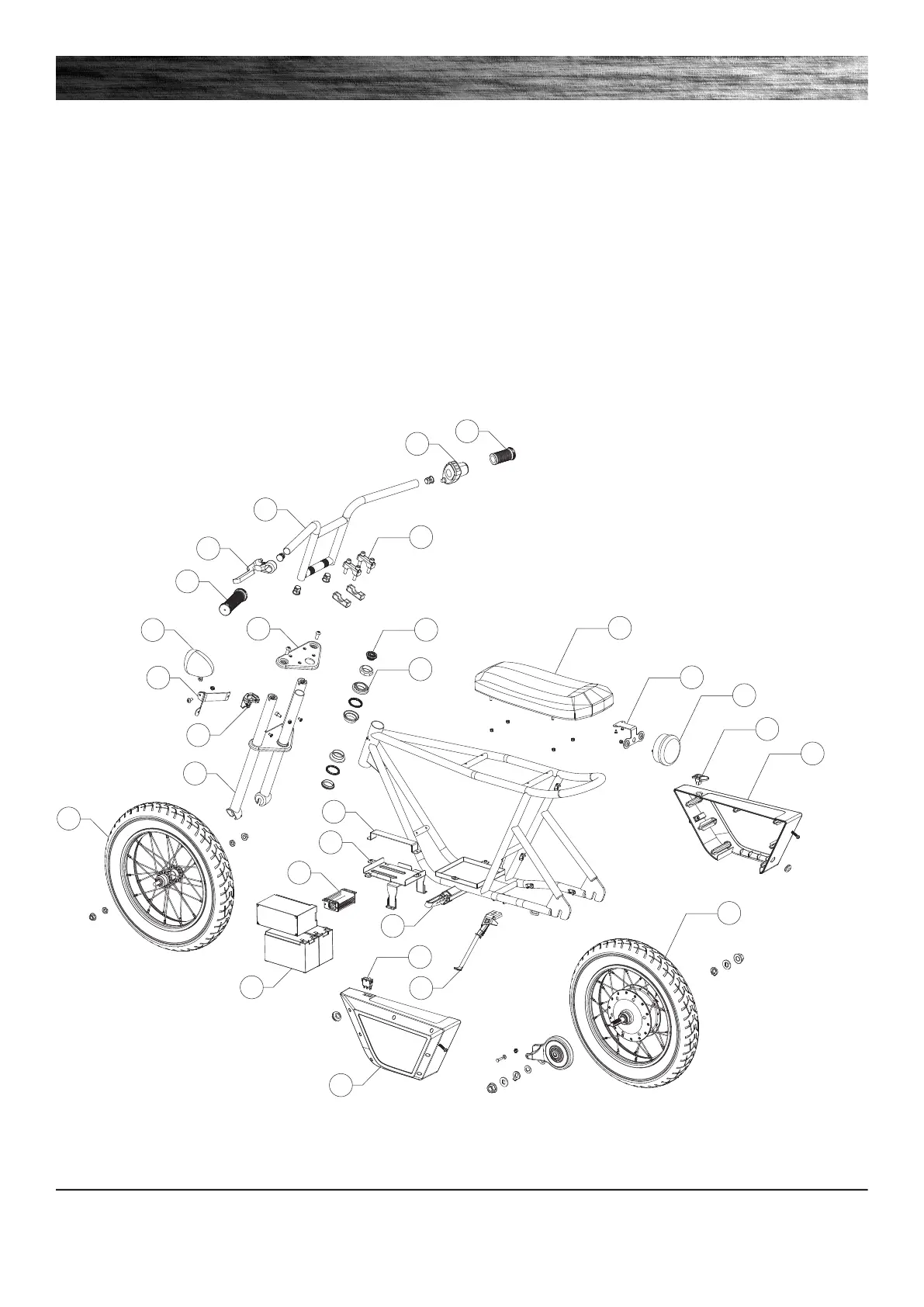

HEADLINERAMBLER 16 PARTS
Keep your electric scooter running for years with genuine Razor parts. Visit our website or e-mail us for more information on spare part availability.
(Specifications subject to change without notice.)
1. Handlebar Grips (Left/Right)
2. Single-Speed Twist-Grip Throttle
3. Handlebar
4. Brake Lever
5. Handlebar Clamp
6. Upper Crown
7. Headlight
8. Front Light Mounting (Left/Right)
9. Front Fork
10. End Cap
11. Headset (Upper/Lower)
12. Front Wheel
13. Rear Wheel w/ Hub Motor Complete
14. Battery Mounting (Upper)
15. Battery Mounting (Lower)
16. Controller
17. Battery (12V7AH)
18. Battery Cover (Left/Right)
19. Charger Port
20. ON/OFF Switch
21. Footpegs (Left/Right)
22. Kickstand
23. Plastic Cover
24. Taillight
25. Taillight Supporter
26. Seat
