Before beginning repair or maintenance:
• Read the instructions
• Disconnect charger
• Turn the power button OFF
• Exercise caution around
exposed parts
• Contact Razor Customer
Service if unsure about any
repair or maintenance

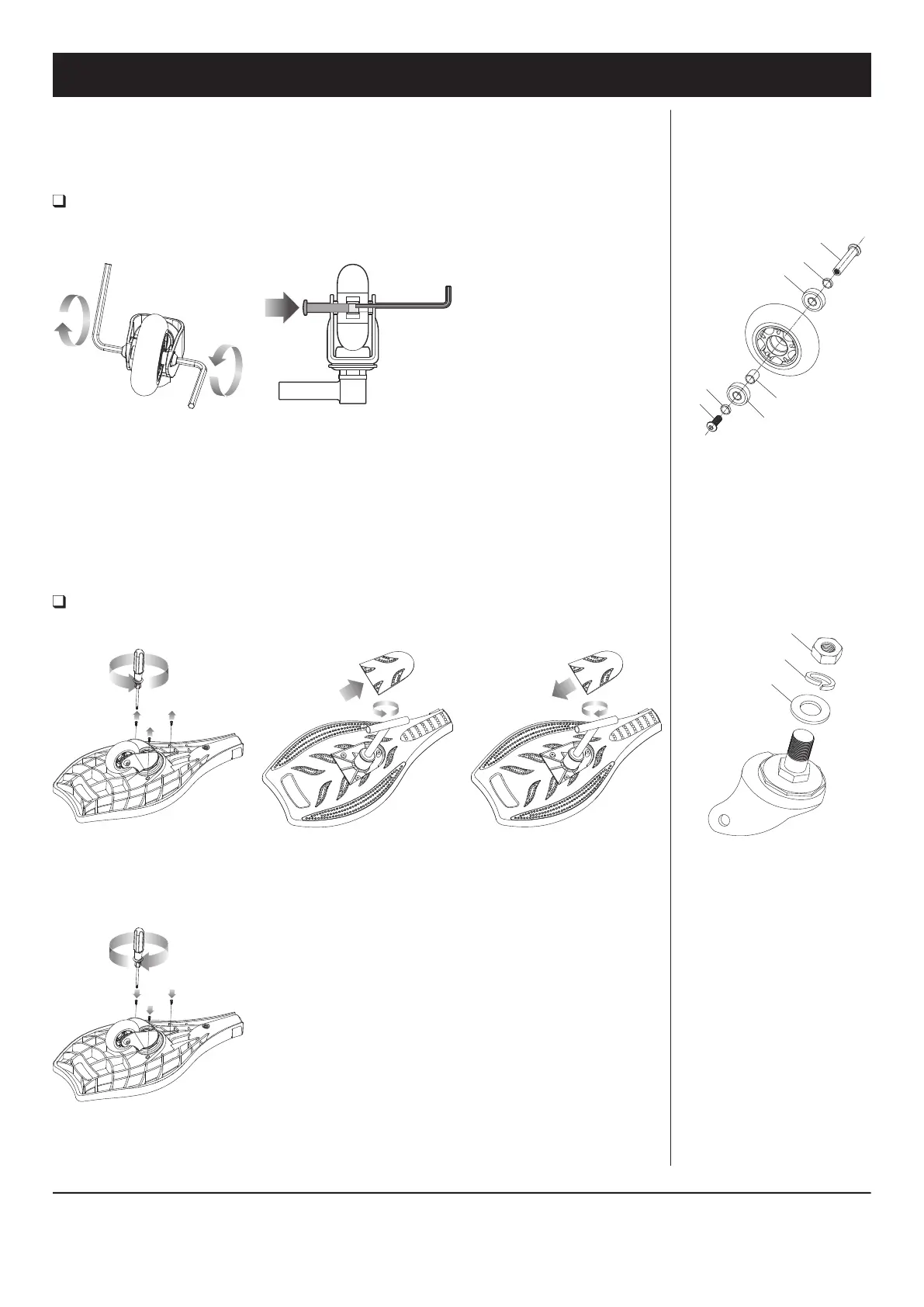

REPAIR AND MAINTENANCE
Rear Caster Wheel Replacement
Tools Required: Two (2) 5 mm Allen Wrenches (not included)
Rear Caster Replacement
Tools Required: Phillips Screwdriver and 24 mm Socket Wrench (not included)
1 Turn product over. Using two (2)
5 mm Allen wrenches, loosen
coupling bolt and remove wheel
from caster.
1 Turn product over. Using a Phillips
screwdriver, remove the three (3)
screws attaching the deck plate to
the platform.
2 Insert replacement wheel
into caster.
Note: Make sure all three (3)
spacers are aligned with the holes
in the bearings before inserting
the coupling bolt. Secure tightly
into place.
2 Turn product over. Using a 24 mm
socket wrench, loosen the nut on the
caster and remove caster.
3
Insert replacement caster. Secure in
place with nut removed in step 2. Re-
attach wheel to caster (Refer to Rear
Caster Wheel Replacement above).
4 Re-attach the deck plate to the
platform with the three (3) screws
removed in step 1.
Wheel
13-1 Coupling Bolt
13-2 Small Spacer (x2)
13-3 Bearing (x2)
13-4 Large Spacer
Caster
6-1 Locknut
6-2 Spring Washer
6-3 Flat Washer
13-1
13-2
13-3
13-4
13-1
13-2
13-3
6-1
6-2
6-3
