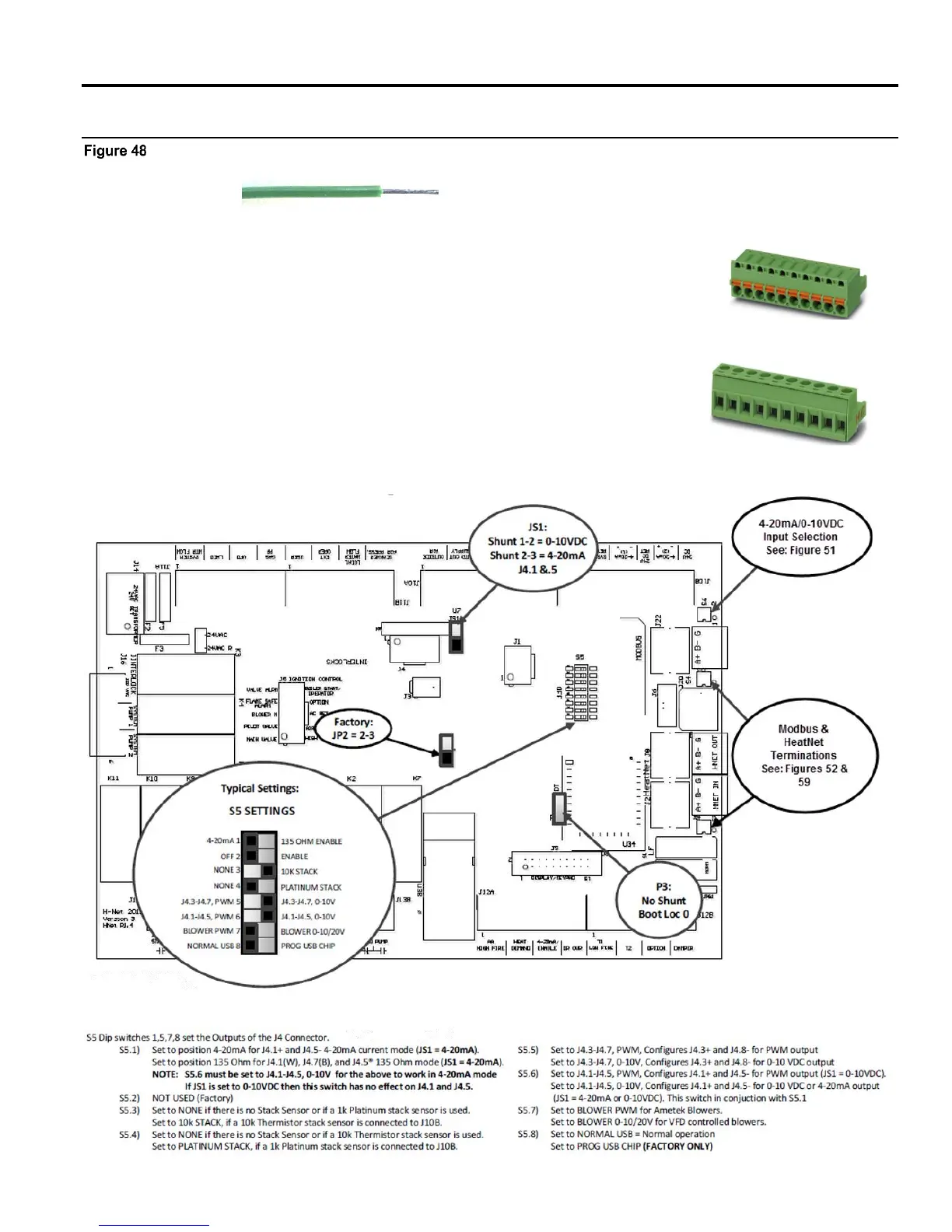

WIRING CONNECTIONS HeatNet Control V3
Page 73
Wiring Connections
Dip Switches and Wiring
Wire Strip Length.
If the terminal blocks are of the screwless type, the wire should be stripped to .42” or 10.67mm.
If the terminal blocks are of the screw type, the wire should be stripped to .25” or 6.34mm.
